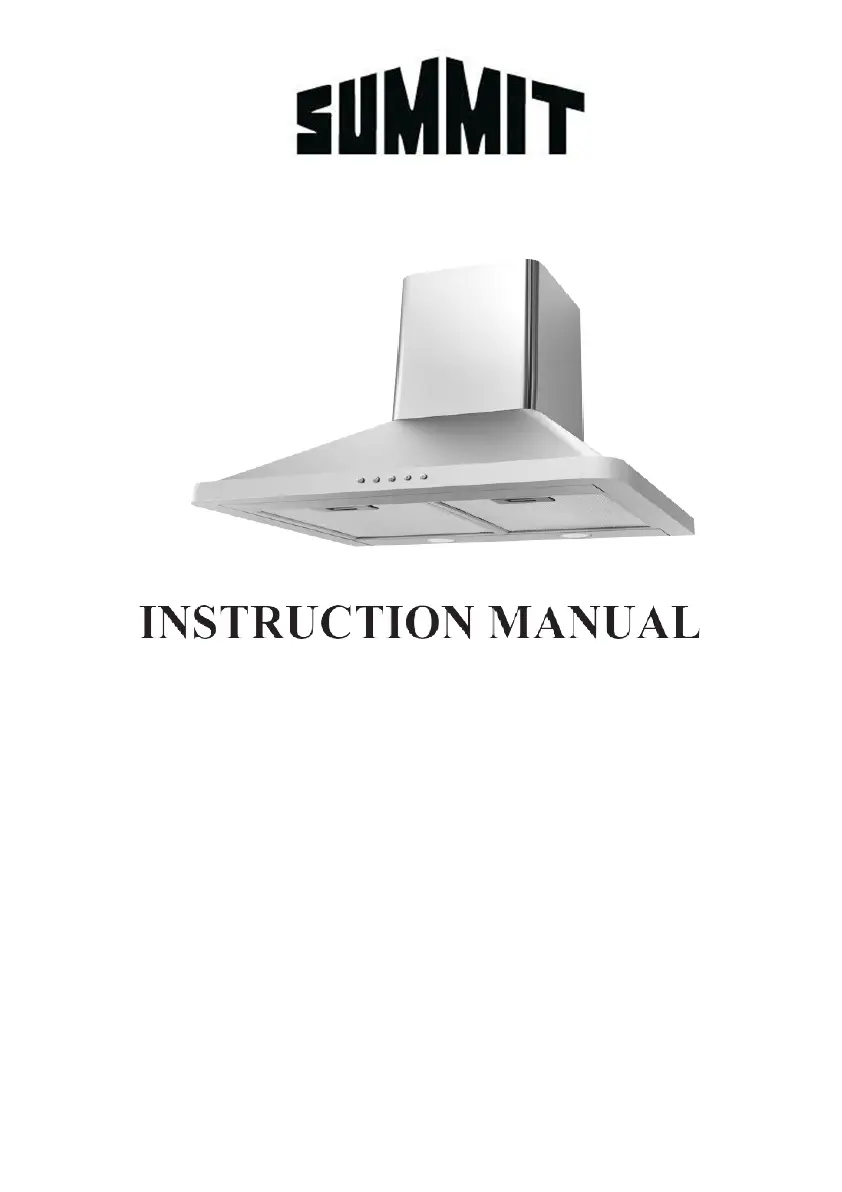

Page 1/24
RANGE HOODS
Models
SEH3624SSADA
SEH3630SSADA
SEH3636SSADA
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, New York 10474
www.summitappliance.com
Read and save these instructions
TABLE OF CONTENTS
Safety Warnings.................................................................................................
2-
4
Location of Parts .................................................................................................. 5
Technical Specifications. ......................................................................................6
Dimensional Diagram ............................................................................................7
Installation ......................................................................................................... 8-
12
Positioning the Range Hood ...................................................................... 8
Preparing the Site ................................................................................... 8-9
Installing the Range Hood on the Wall................................................... 9- 11
Remote Switch Instructions.................................................................................... 12
Using your range hood ........................................................................................ 13
Push- Button Controls
Efficient Ventilation
Cleaning and
Maintenance.
............................................................................. 14-
15
Carbon Filter Replacement ...................................................................... 14
Replacement Components of Lighting ......................................................15
Moving the Hood....................................................................................... 15
Troubleshooting................................................................................................... 16
Troubleshooting Guide
Service and Spare Parts
Exploded View ..................................................................................................... 17
Parts List ...............................................................................................................20
Wiring Diagram .................................................................................................... 22
Limited Warranty . ................................................................................................ 23
Read and save these instructions
2
SAFETY WARNINGS
READ AND SAVE THESE INSTRUCTIONS
a. This product is designed for domestic use.
b. Electric input for the device must be 120V, -110 60Hz.
c. A grounded cable is installed in your device. It must be connected a to grounded electrical
socket.
d. of All the electrical installation must be done by a qualified done electrician. Installations by
unqualified people may result in poor performance, failure of the device, and accidents.
e. Do not let the power cord become or pinched squeezed during installation. Keep the cord
away from cooking surfaces; otherwise, the cord could melt and could result in a fire.
f. Do not connect the power cord before installation is complete.
g. If the lights in your device have been on a for long time, do touch not them, are they hot
enough to burn your hands.
h. Kitchen hoods are designed for cooking in domestic residences. There is a risk of failure
if they are used for other purposes, and this will void the warranty.
i. Comply with local codes and regulations related to discharging air. (This warning does not
apply to hoods without a stack).
j. Do not cook flammable foods below the hood.
k. Start the hood after placing pots or pans on your cooking surface. Otherwise, high
temperatures may result in the deformation of parts of the hood.
l. Do not leave hot oil on the cooking surface. that Pots contain hot oil can ignite, causing
fires.
m. When foods, frying be mindful of curtains. They may catch fire.
n. Change the filters regularly. residues could Oily become fire risks.
o. When replacing filters, always use the same type of filter as the original. Substitutes may
be unsuitable.
p. Do not use the device without a filter. Do not remove filters while the device is in use.
q. If there is ignition or sparking, cut power off the electric to the device. (Turn off the switch.)
r. If the device is not cleaned regularly, built up- grime and dirt could cause a fire.
s. When you make the stack installation for your hood, use 5.9" (150 mm) diameter pipes.
The stack installation must be as short and with as few bends as possible.
t. Keep the packing materials away from children, as materials these could be dangerous
to them.
u. Ensure that children do not play with the device. Do not let children use little the device.
v. If the electrical cable is defective, it must be changed by the manufacturer or a qualified
service technician.
w. If there is a fire, cut off the power to the hood and and cooking devices cover the flame.
Do not use water to extinguish the fire.
x. Do not operate any a fan with damaged cord or plug. Discard fan or return to an
authorized service facility for examination and/or repair.
y. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
