Summit SEH1536SS Manual
Summit
Extractor hood
SEH1536SS
Read below 📖 the manual in Italian for Summit SEH1536SS (23 pages) in the Extractor hood category. This guide has been helpful for 2 people and has been rated 4.5 stars on average by 2 users

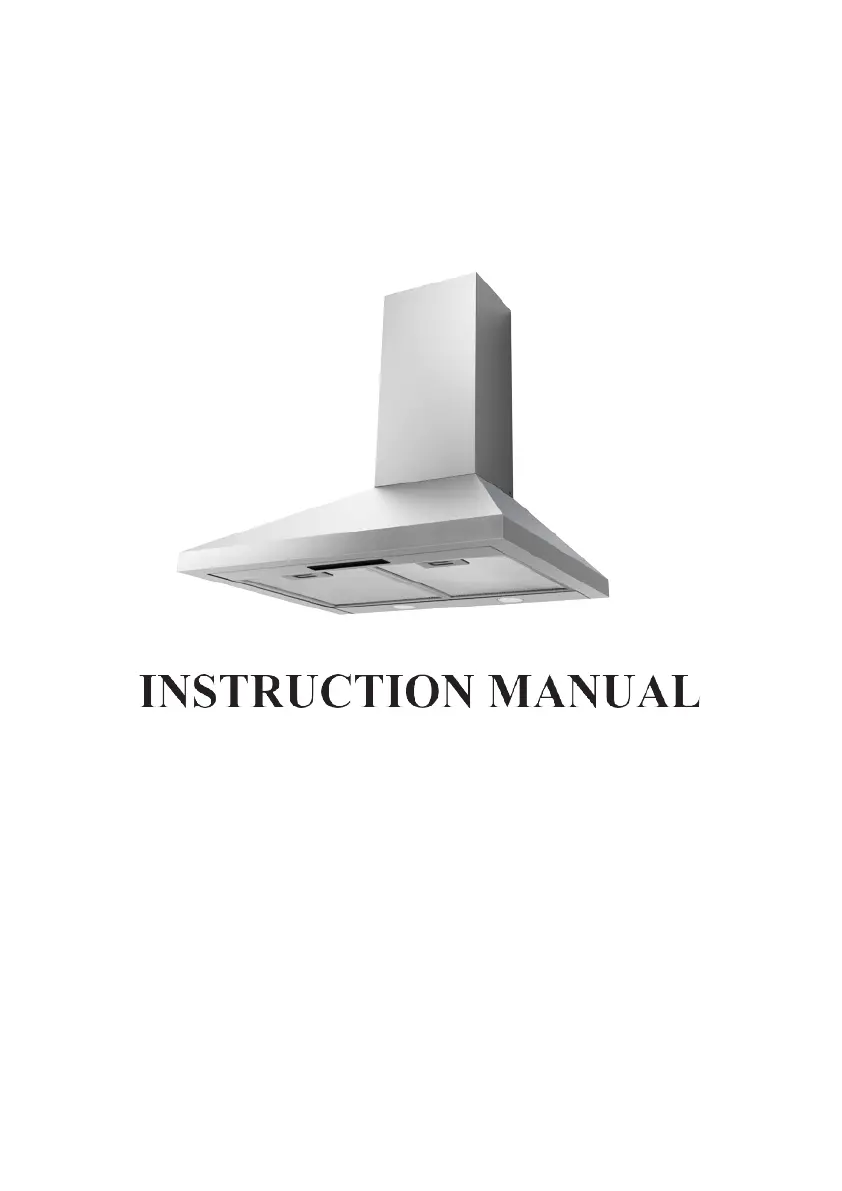

Page 1/23
RAN OOGE H DS
Models
SEH 24SS 15
SEH 30SS 15
SEH 36SS15
FELIX STO H, INC.RC
770 G ison Avenue arr
Bronx, New York 10474
www.su ammit ppliance.com
TABLE OF CONTENTS
Safety Warnings................................................................................................. 2-
4
Location of Parts. ................................................................................................. 5
Technical Specifications. ..................................................................................... 6
Dimensional Diagram. .......................................................................................... 7
Installation. ........................................................................................................ 8-
12
Positioning the Range
Hood.
..................................................................... 8
Preparing the Site. .................................................................................. 8-9
Installing the Range Hood on the Wall. ................................................. 9-11
Using your range hood. ...................................................................................... 12
Push- Button Controls
Efficient Ventilation
Cleaning and Maintenance. ........................................................................... 13-
14
Carbon Filter Replacement...................................................................... 13
Replacement of Lighting Components...................................................... 14
Moving the Hood. ..................................................................................... 14
Troubleshooting. .................................................................................................. 15
Troubleshooting Guide
Service and Spare Parts
Exploded View .................................................................................................... 16
Parts List ..............................................................................................................17
Wiring Diagram. ................................................................................................... 21
Limited Warranty .................................................................................................
22
2
SAFETY WARNINGS
READ AND SAVE THESE INSTRUCTIONS
a. product This is designed domestic for use.
b. Electric input for the device must be -110 120V, 60 Hz.
c. A grounded cable is installed in your device. It must be connected a to grounded electrical
socket.
d. installations All electrical must be done by a qualified electrician. Installations done by
unqualified people may result in poor performance, failure of the device, and accidents.
e. not Do let the power cord become pinched or squeezed during installation. Keep the cord
away from cooking surfaces; otherwise, the cord could melt and cause a fire.
f. Do not connect the power cord before installation is complete.
g. lights If the in your device have been on a for long time, do , t not touch them hey are hot
enough to burn your hands.
h. hoods Kitchen are designed for cooking in domestic residences. There a is risk of failure
if they are used for other purposes, and this will void the warranty.
i. Comply with local codes and regulations related to discharging air. (This warning does not
apply to hoods without a stack).
j. Do not cook foods flammable below the hood.
k. Start the hood after placing or pots pans on your cooking surface. Otherwise, high
temperatures may result in the deformation of parts of the hood.
l. Do not leave hot oil on the cooking surface. Pots that contain hot ignite, oil can causing
fires.
m. When foods, of curtains. catch frying be mindful They may fire.
n. Change the filters regularly. residues Oily could become fire risks.
o. When replacing filters, always use the same type of filter as the original. Substitutes may
be unsuitable.
p. Do not without use the device a filter. Do not remove filters while the device .is in use
q. there If is ignition or sparking, cut off the electric power to the device. (Turn off the switch.)
r. If the device is not cleaned regularly, built-up and could grime dirt a cause fire.
s. When you the make stack installation for your hood, use (5.9" 150mm diameter) pipes.
The stack installation must be as short and with as few bends as possible.
t. Keep the packing away materials from children, as these materials could be dangerous
to them.
u. that Ensure children do not play with the device. Do not let little children use the device.
v. If the electrical cable is defective, it must be changed by manufacturer the or a qualified
service technician.
w. If there is a fire, cut off the power to the hood and cooking and cover devices the flame.
Do not use water to extinguish the fire.
x. Do not operate a any fan with damaged cord or plug. Discard fan or return it to
an authorized service facility for examination and/or repair.
y. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not under route cord furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
