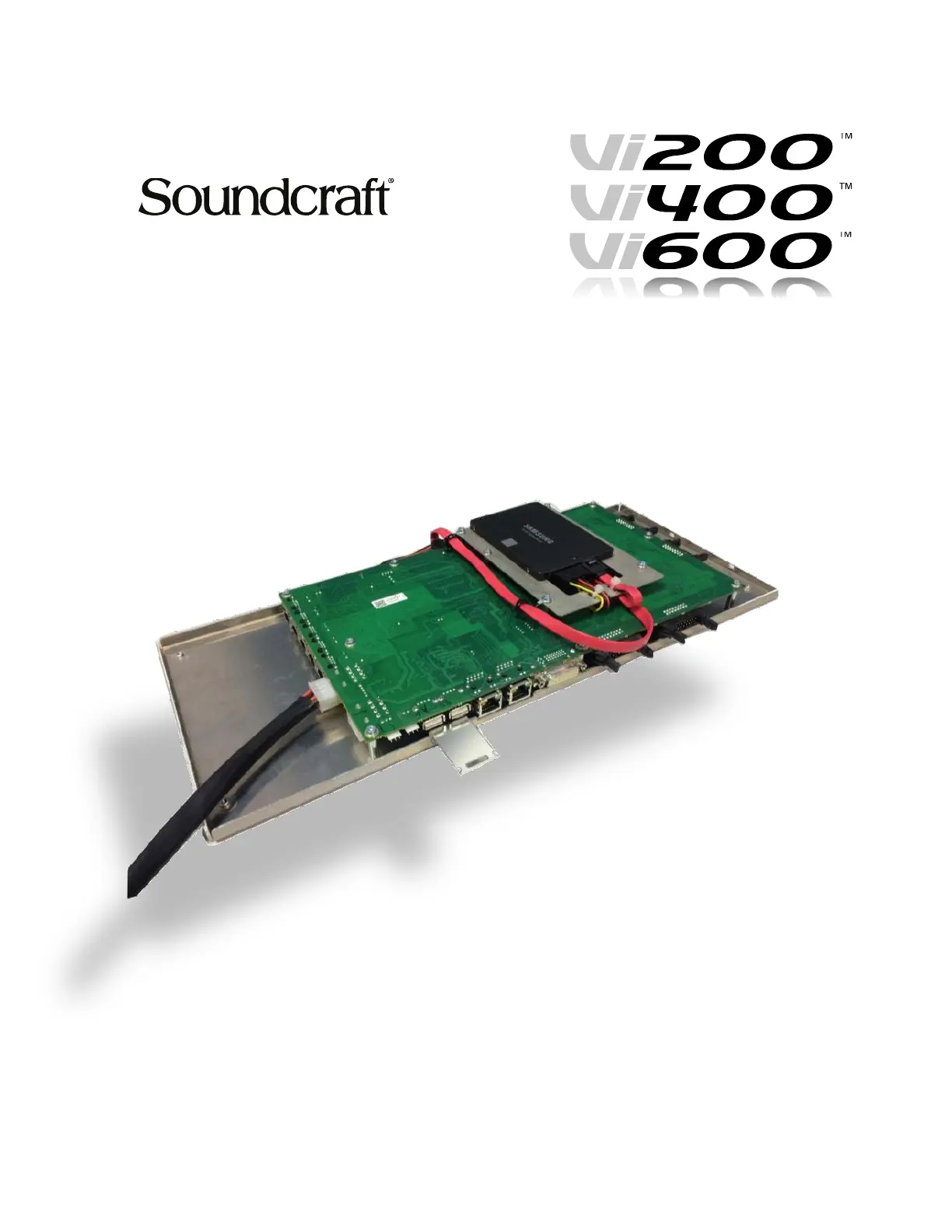

VI200/400/600 SYSTEM CONTROL MODULE UPGRADE
Installation Instructions
2 V1.
PART NUMBER: 5061604-02
2
INTRODUCTION
_____________________________________________________________________________
The Vi2/4/600 System Control Module is designed to directly replace the Vi2/4/6 ‘silver box’
Control Module and provide a faster processor , more reliable -(2.2GHz dual core, 4GB RAM)
performance with hard-soldered DisplayLink-based graphics outputs rather than the PCI
graphics card of the original system.
The new module runs the same V6.1 (or later) software as the Vi5000/7000, but with a cut-
down feature , set appropriate to the capabilities of the Vi2/4/6 surface and Local Rack. A
useful application for this upgrade would be to give an existing surface a new lease of life Vi6
and allow it to function as an emergency backup surface, rather than being disposed of, when
a full Vi5/7000 upgrade is purchased.
The control surface will externally remain a Vi2, 4 or 6, but will identify as a Vi200, 400 or 600
on its main Menu screen, and during boot-up.
Features available (at time of release) when a Vi2/4/6 is upgraded with this option:
• New 3D- Vistonics touchscreen graphics
• 30- t- second Fas boot and faster surface response (e.g. on layer changes)
• Functioning Setup buttons for Vistonics and Fader Encoder assign and F1-6-key assign
• Shure Mic Monitoring
• Increased insert points (64) and tie lines (128)
• Ability to use Surface with a Vi4/6 ‘Classic’ Local Rack, or a Vi5/7000 Local R * ack
• Local I/O can either use original passive breakout box on Classic Local Rack, or ABB on
Vi5/7000 Local Rack
• Ability to benefit from future software updates on the V6.x software platform
When we release software updates, we will announce wh features are available on ich
Vi2/4/600 – not all new features will necessarily be available.
*Features from Vi5/7000 that are NOT available with this upgrade are:
• 128 inputs not available (channel count remains at 96ch assuming 3 DSP cards in or 4
Classic rack, or 5 or 8 DSP cards in Vi5/7000 Local Rack).
• 96kHz operation not available
• BSS DPR 901ii Dynamic EQ not available
These 3 features are ONLY available by implementing a FULL Vi5000/7000 Upgrade.
Part number
Description
5064929.V
Vi200 Control Module Upgrade
5064930.V
Vi400 Control Module Upgrade
5064931.V
Vi600 Control Module Upgrade
3
UPGRADE INSTRUCTIONS
_____________________________________________________________________________
The following instructions explain how to replace the "silver box" style System Control Module
with an updated version, using the Vi200, 400 or 600 Upgrade Kit.
The following instructions are for Vi6 modification, Vi4 and Vi2 are similar, see Appendix II
for significant differences.
1) Locate and remove 21x hex screws and drop down the left/right- hand rear panels.
2) Remove all connections to the SCM, taking note of the multi coloured video cables, and -
which bay they serve (see picture) then remove SCM complete with its mounting plate, the
by unscrewing the 4 countersunk screws fixing the mounting plate to the rear panel.
3) Locate the Power/Distribution board, behind bay 3 (bay 2 on Vi4, under fader panel on
Vi2). -Unplug the Cat5e patch cables and the small white 5 way molex connection, which is
attached to the front panel these cables will be connected to the new POWER – switch
SCM later.
SCM
