CAMERA EXTENSION ADAPTOR
HDCE-100
OPERATION MANUAL [English]
1st Edition
Table of Contents
2
Table of Contents
Overview ..........................................................................................3
Locations and Functions of Parts .................................................3
System Configuration Example .....................................................5
Usage Precautions ..........................................................................7
Installation environment....................................................................... 7
To prevent electromagnetic interference from portable communications
devices......................................................................................... 7
Specifications..................................................................................7
3
Overview / Locations and Functions of Parts
Overview
The Camera Extension Adaptor HDCE-100 is designed for
connecting a camera to a camera control unit (CCU) and
converting the link format between them from optical fiber
to single mode fiber. Also, the HDCE-100 is used by
connecting the Baseband Processor Unit BPU4000 and
supplies power to the Camera System Adaptor CA4000.
Rack mount capable
The HDCE-100 can be installed in a standard EIA 19-inch
rack (up to three units in 3U space).
For details on rack mounting, contact a Sony Service
representative or Sales representative.
Locations and Functions
of Parts

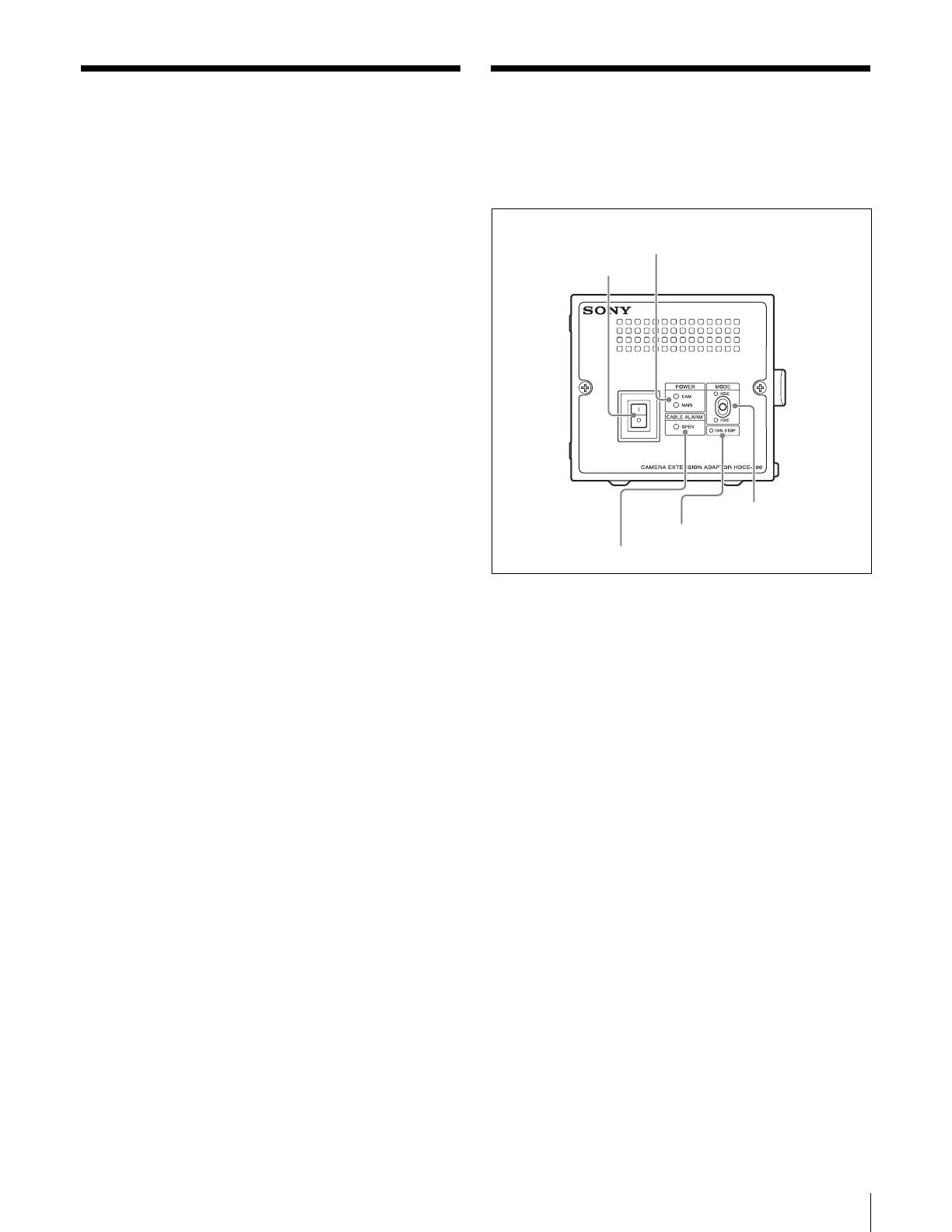

Front panel
aPower switch
This switch controls power to the entire system including
the HDCE-100, video camera, etc. In the “@” position,
power is on. In thea” position, power is off.
bPOWER indicators
When power is on, the MAIN indicator and CAM indicator
light up.
cCABLE ALARM indicator
OPEN (red):
Lights up when a camera is not connected via the optical
fiber cable. While the indicator is lit, the camera is not
powered.
dStatus indicator
FAN STOP (red):
Lights up when the ventilator fan has stopped.
eMODE switch
HSC:
The HSC indicator lights up in green.
The HDCE-100 supplies power to the HSC camera that is
connected to the CAM/BPU connector, and transmits/
receives signals between the camera and CCU.
HDC:
The HDC indicator lights up in green.
1Power switch
2POWER indicators
4Status indicator
5MODE switch
3CABLE ALARM indicator
