Page 1/16

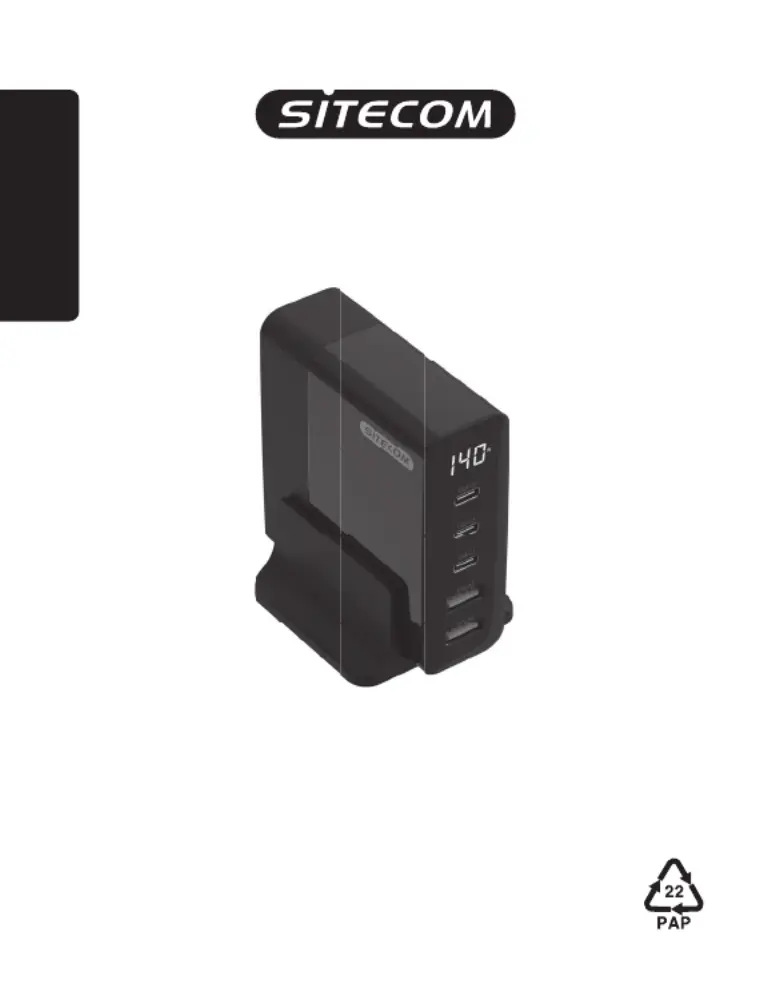

140W GaN
Power Delivery Desktop Charger
with LED display
Type: CH-1004
User manual
POWER
EN: User manual CH-1004 140W Power Delivery Desktop Charger with LED display . . 3
NL: Handleiding CH-1004 140W Power Delivery Desktop Charger met LED display . . 4
DE: Benutzerhandbuch CH-1004 140-W-Power-Delivery-Tischladegerät
mit LED-Anzeige. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
FR: Guide de l’utilisateur CH-1004 Chargeur de bureau Power Delivery
140 W avec achage LED 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IT: Manuale dell’utente CH-1004 Caricabatteria da tavolo Power Delivery da
140 W con display a LED 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ES: Manual de usuario CH-1004 Cargador de escritorio con suministro de
energía de 140 W con pantalla LED 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PT: Manual do utilizador CH-1004 Carregador de mesa de voornecimento de
energia de 140 W com display LED 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PL: Instrukcja obsługi CH-1004 Ładowarka biurkowa Power Delivery o mocy
140 W z wyświetlaczem LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ΕΛ: Εγχειρίδιο χρήστη CH-1004 Επιτραπέζιος φορτιστής 140W Power Delivery
με οθόνη LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Legal & Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1
5
6
4
3
2
7
3
EN
At a glance
Item Specications Description
1 EURO plug EURO mains plu g Suitable for use in most European countries.
2
3
4
USB-C port 5.0/9.0/12.0/15.0V 3.0A,15.0W/
27.0W/ 36.0W/45.0W/20.0V
5.0A,100.0W
Charge any USB-C device up to 100W. Please refer to the technical
specications table for the output rating when using multiple ports.
5
6
USB-A port 5.0/9.0/12.0/20.0V 3.0A,15.0W/
27.0W/ 36.0W/60.0W
Charge any USB-A device u p to 60W. Please refer to the technical
specications table for the output rating when using multiple ports.
7 LED Display White LED Indicates how much power (Watt) is being used.
Other specications
Supported Devices USB-C + USB-A devices Can charge or power any USB-C device that requires 100W power or less.
The power supply unit is suitable for mains voltages of 100 – 240 V and
therefore can be used worldwide. Please note that a country-specic
adapter may be necessary.
Dimensions 91 x 114 x 60 mm Dimensions are excluding AC cable (100cm)
Weight 294 grams
Package contents 1x CH-1004, power cable,
desktop stand & User manual
Keep this manual for f uture reference
Important safety instructions, please read the below information carefully
• Do not drop. Frequent dropping may lead to malfunctioning.
• Do not disassemble. Repairs should only be done by qualied service centers. Do not use the product if the AC adapter, adapter cable or
power cable is damaged.
• Do not extend cable. Extending cable may lead to poor performance. Always pull directly on the plug when disconnecting the cable,
never on the cable itself. Please read the below information carefully.
• Keep this notice for future reference.
• Unplug this product before cleaning. Do not use liquid or spray cleaners and use a dry cloth.
• Do not place this product in a damp place.
• When connecting to an outlet, pay attention to the load capacity of the circuit.
• Read the reference information and precautions for this product.
• Unplug from outlet when not in use for a long time to avoid damage due to over voltage.
• Use this product near an outlet.
• Do not use this product in liquid, steam, rainwater, snow or humid place. Do not place objects containing water, vases, etc. on the
equipment.
• If any of the following problems occur, disconnect from the power supply and contact a service technician.
a. Liquid has entered the device, b. When placed in a damp environment, c. When the operation does not work correctly as instructed by
the operating instructions or cannot be improved by referring to the instruction manual, d. When there is an obvious defect in the body
• The operating environment temperature of this product is 25° C or less. The altitude during operation of this product is 5000m or less.
Support
Warranty 24 months warranty. Please note that your rights under national law remain unaected by this warranty.
Support Lifetime technical support
Disclaimer Sitecom Europe B.V. assumes no liability and provides no warranty for damage resulting from improper
installation/ mounting, improper use of the product or from failure to observe the operating instructions and/
or safety notes.
Website www.sitecom.com
Contact suppor t@sitecom.com
