Air conditioner
Installation manual
PC4NBNMUN / PC4NUNMUN / PC4NBDMUN / PC4NUDMUN
• Thank you for purchasing this Samsung air conditioner.
• Before operating this unit, please read this manual carefully and retain it for future
reference.
2English

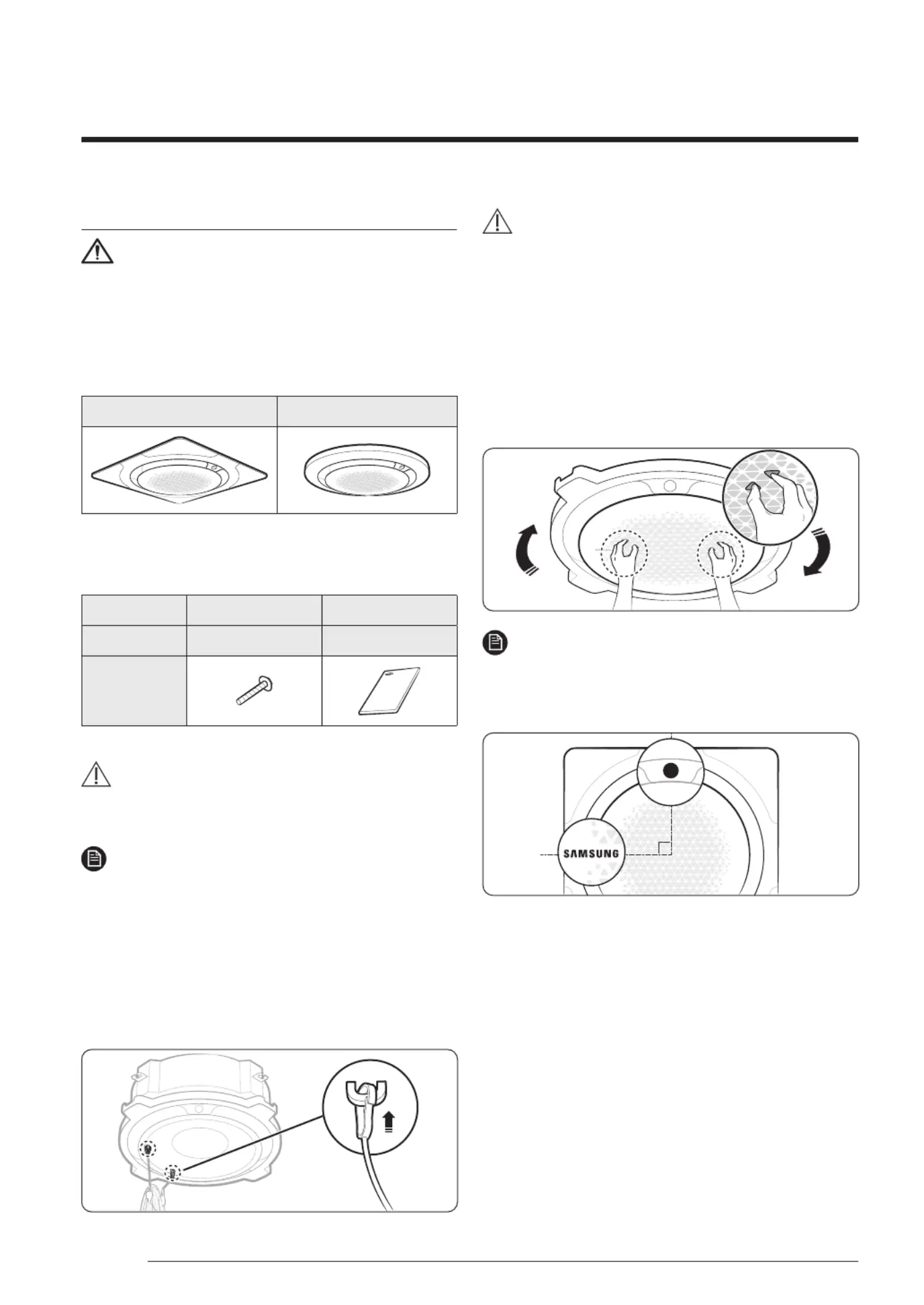

Installation
California Proposition 65 Warning (US)
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.
ca.gov.
360 cassette panels
Type A: Square panel Type B: Circular panel
Accessories
Item M4 screw Installation manual
Quantity 4 ea 1 ea
Shape
CAUTION
• After installing the product, be sure to explain to the
user how to use the air conditioner.
NOTE
• Tightening torque for the M4 screw:
1.2 to 1.8 N•m (※ 1N•m = 10 kgf•cm)
Installing the grille inlet for the
ceiling type and open type
1 Hook the two hook wires of the grille inlet onto the
two wire hooks on the indoor unit body.
CAUTION
• When servicing the product or replacing parts such as
motors and gears, be sure to remove the front grille
first. Failing to do so may cause the hook wires to
unhook and the front grille to drop on the floor.
• Be sure to check the letters for the wire hooks printed
on the indoor unit body and hook the hook wires
onto the specified positions.
2 Rotate the grille inlet clockwise until it is assembled
firmly in place.
NOTE
• When the grille inlet is installed correctly, the indoor
unit display is placed perpendicular to the Samsung
logo printed on the grille inlet.
3English

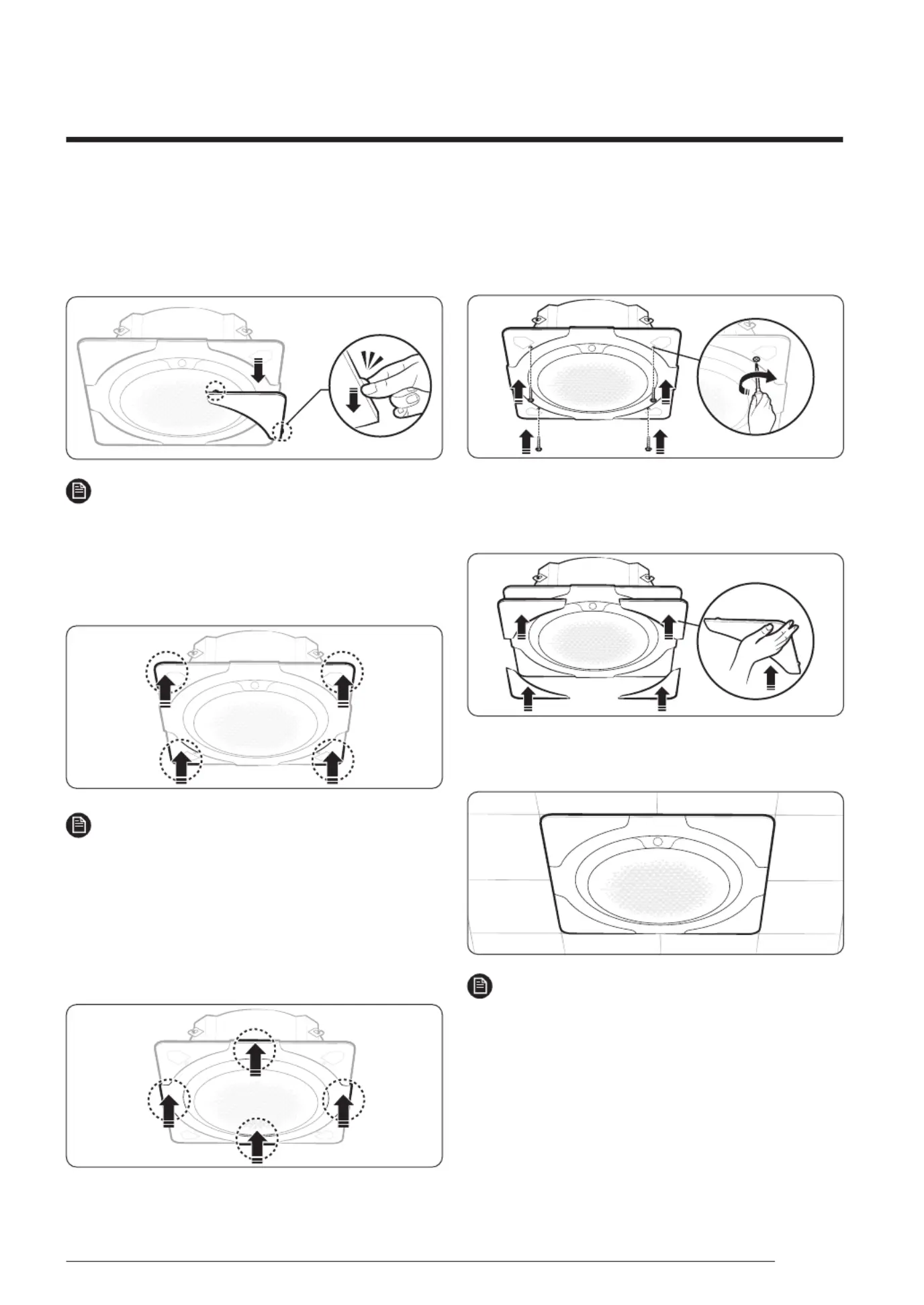

Installing the panel front for the
ceiling type
1 Remove the four cover panels from the panel front.
NOTE
• To remove the cover panels, use the two tongues at
the ends of each cover panel.
2 Push the four corners of the panel front toward the
indoor unit body one at a time until you hear “click”
so that they are assembled in place.
NOTE
• After assembling the panel front in place, you can
slightly adjust its position left and right. If required,
adjust the position of the panel front so that it aligns
with the ceiling opening.
3 Push the centres of the four sides of the panel front
toward the indoor unit body one at a time until you
hear “click” so that they are hooked in place.
4 Insert halfway the four screws into the four holes on
the panel front. Then fasten the screws tightly until
there is no gap between the ceiling and the panel
front.
5 Place each cover panel on a corner of the panel front.
Then push the cover panel upward until it is firmly
assembled to the panel front.
6 Check whether the panel front is firmly fixed to the
indoor unit body.
NOTE
• Make sure that the screws are fastened tightly until
there is no gap between the ceiling and the panel.
• If the panel is installed incorrectly, air may leak out.
