Page 1/16
True to the Music
www.radialeng.com
®

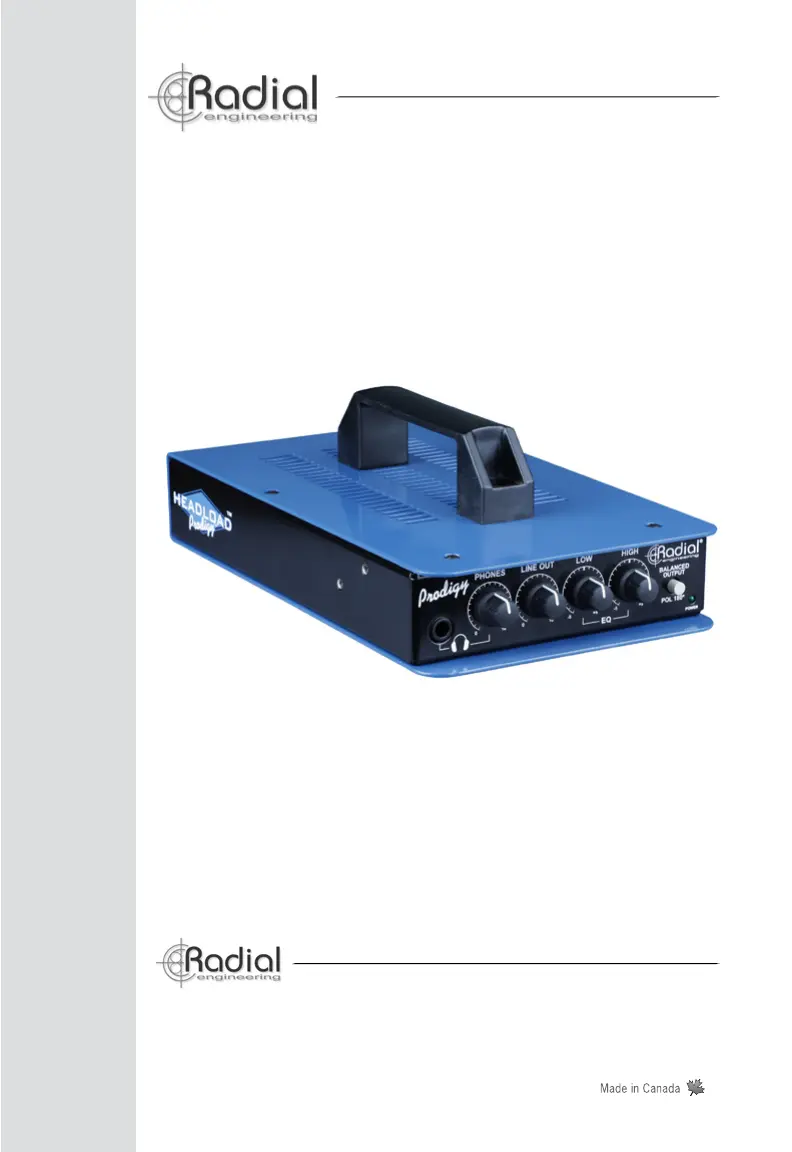

True to the Music
®
User Guide
Headload Prodigy
Load Box and Amp DI
www.radialeng.com
Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam, BC V3C 1S9, Canada
tel: 604-942-1001 • fax: 604-942-1010
email: info@radialeng.com
â„¢
CAUTION!
The Headload Prodigy is a load box that is designed to safely handle and attenuate up
to 120 watts RMS of power from a guitar or bass ampliîš¿er. The Headload Prodigy is
intended for 8 Ohm. For best performance and proper power transfer, NEVER EXCEED
THE PRODIGY’S 120 WATT POWER RATING and always match the impedance. Ex-
ceeding this power can cause the Headload Prodigy to overheat which could damage
the unit. The Headload Prodigy speaker connections employ switching jacks that reroute
the signal to the amp and/or internal load resisters. DO NOT DISCONNECT CABLE AT
SPEAKER BOX END AND LEAVE IT CONNECTED TO THE HEADLOAD PRODIGY.
! !
Headload Prodigyâ„¢ Load Box
True to the Music
®
Radial Engineering Ltd.
Radial® Headload ProdigyTM
Load Box and Amp DI
Table of Contents Page
Feature set ......................................................................................................................... 1-2
Making Connections .............................................................................................................. 3
How to Use ......................................................................................................................... 4-5
JDX Balanced Output ............................................................................................................ 6
JDX Unbalanced Output ........................................................................................................ 7
Using the Features ............................................................................................................. 8-9
Rack Mounting and Cable Length ....................................................................................... 10
Block Diagram ......................................................................................................................11
Speciîš¿cations ...................................................................................................................... 12
Warranty ................................................................................................................Back Cover
Thank you for purchasing the Headload Prodigy. The Prodigy is a multi-purpose load box that
enables you to reduce the output of your speaker cabinet and to send your guitar amp and
cabinet sound to the PA or recording system using the built-in JDX direct box output. You can
simultaneously set your amp to full output, 50% or 25% volume, or turn it completely off for
quiet on-stage performance or late night recording.
Best of all, the Prodigy has been designed to be straight forward and easy to use. However,
as with all products, making sure you understand the features will not only improve your
musical experience, it will ensure your equipment is safe from damage due to misuse. So
please take a few minutes to read through this manual to familiarize yourself with all of the
built-in features.
If after reading, you îš¿nd yourself looking for more answers, please visit the Prodigy FAQ page on
the Radial web site. This is where we post updates and questions from users like yourself.
