Read below š the manual in Italian for Power Dynamics PDY212 (16 pages) in the Speaker category. This guide has been helpful for 11 people and has been rated 4.5 stars on average by 2 users

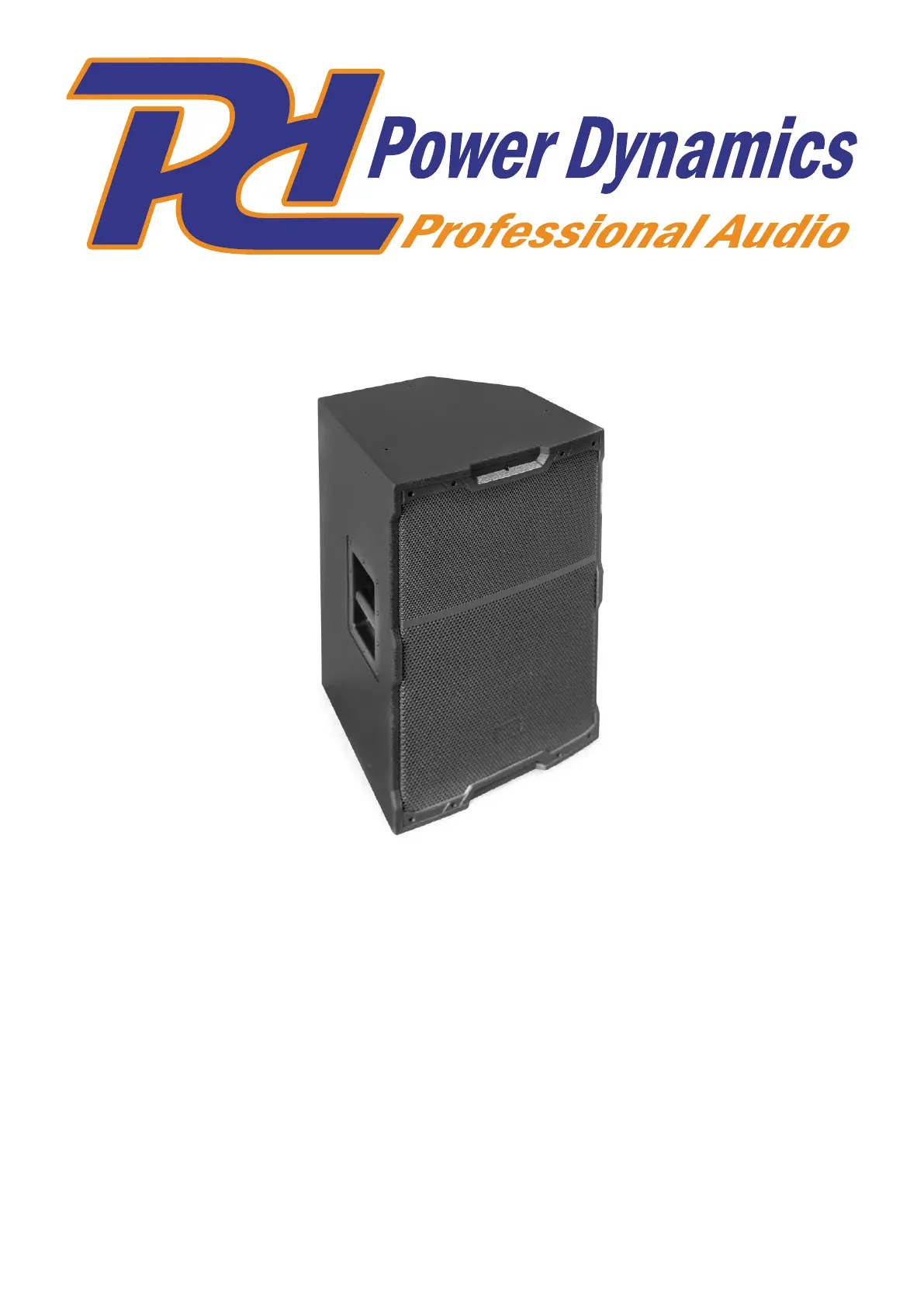

Page 1/16
PDY Passive Speaker Series
Ref. nr.: 178.622; 178.624
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
INSTRUKCJA OBSÅUGI
V1.2
2
ENGLISH
Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in
order to beneīt fully from all features.
Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to
avoid īre and/or electrical shock. Repairs must only be carried out by a qualiīed technician in order to avoid electrical shock.
Keep the manual for future reference.
- or to using the unit, please ask advice from a Pri
specialist. When the unit is switched on for the īrst time,
some smell may occur. This is normal and will disappear
after a while.
- The unit contains voltage carrying parts. Therefore do
NOT open the housing.
- Do not place metal objects or pour liquids into the unit
This may cause electrical shock and malfunction.
- Do not place the unit near heat sources such as
radiators, etc. Do not place the unit on a vibrating
surface. Do not cover the ventilation holes.
- The unit is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A
faulty or damaged mains lead can cause electrical shock
and malfunction.
- When unplugging the unit from a mains outlet, always
pull the plug, never the lead.
- not plug or unplug the unit with wet hands. Do
- If the plug and/or the mains lead are damaged, they
need to be replaced by a qualiīed technician.
- If the unit is damaged to such an extent that internal
parts are visible, do NOT plug the unit into a mains outlet
and DO NOT switch the unit on. Contact your dealer.
- To avoid īre and shock hazard, do not expose the unit to
rain and moisture.
- All repairs should be carried out by a qualiīed technician
only.
- Connect the unit to an earthed mains outlet (220-
240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the unit will not be used for a
longer period of time, unplug it from the mains. The rule
is: Unplug it from the mains when not in use.
- If the unit has not been used for a longer period of time,
condensation may occur. Let the unit reach room
temperature before you switch it on.
- Never use the unit in humid rooms or outdoors.
- To prevent accidents in companies, you must follow the
applicable guide lines and follow the instructions.
- Do not repeatedly switch the īxture on and oī. This
shortens the life time.
- Keep the unit out of the reach of children. Do not leave
the unit unattended.
- Do not use cleaning sprays to clean switches. The
residues of these sprays cause deposits of dust and
grease. In case of malfunction, always seek advice from
a specialist.
- Do not force the controls.
- is unit is with speaker inside which can cause Th
magnetic īeld. Keep this unit at least 60cm away from
computer or TV.
- If this product have a built-in lead-acid rechargeable
battery. Please recharge the battery every 3 months if
you are not going to use the product for a long period of
time. Otherwise the battery may be permanently
damaged.
- If the battery is damaged please replace with same
speciīcations battery. And dispose the damaged battery
environment friendly.
- If the unit has fallen, always have it checked by a
qualiīed technician before you switch the unit on again.
- Do not use chemicals to clean the unit. They damage the
varnish. Only clean the unit with a dry cloth.
- Keep away from electronic equipment that may cause
interference.
- Only use original spares for repairs, otherwise serious
damage and/or dangerous radiation may occur.
- Switch the unit oī prior to unplugging it from the mains
and/or other equipment. Unplug all leads and cables
prior to moving the unit.
- Make sure that the mains lead cannot be damaged when
people walk on it. Check the mains lead before every use
for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if power
outlet match. If you travel, make sure that the mains
voltage of the country is suitable for this unit.
- Keep the original packing material so that you can
transport the unit in safe conditions.
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of suīcient
magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should
read and adhere to.
The unit has been certiīed CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and
their guarantee!
NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5Ā°C/ Ā°F 41 and
35 95Ā°C/ Ā°F .
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your
dealer about the way to proceed. The speciīcations are typical. The actual values can slightly change from one unit to the other.
Speciīcations can be changed without prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid
your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings
contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety
recommendations and warnings. This is also applicable to all damages in whatever form.
3
UNPACKING INSTRUCTION
CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been
received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from
shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be
returned, it is important that the product is returned in the original factory box and packaging.
If the device has been exposed to drastic temperature īuctuation (e.g. after transportation), do not switch it on immediately. The
arising condensation water might damage your device. Leave the device switched oī until it has reached room temperature.
CONNECTIONS
1. FILTER SWITCH: I passive mode, a single n
ampliļ¬er can be used to power all drivers inside the
loudspeaker. The full frequency range is put into
the loudspeaker and the loudspeakersā internal
crossover separates the frequencies, delivering the
right frequencies to the right driver. In the example
of a 2-way passive loudspeaker, this means that
the single ampliļ¬er is powering both the HF
compression driver and the transducer. TLF he
internal crossover takes care of both the frequency
and power separation.
In bi-amp mode, two power ampliļ¬ers can be used.
This gives you the advantage of being able to
select the best power ampliļ¬er speciļ¬cations for
each driver inside the loudspeake In a bi-amp r.
conļ¬guration, an external crossover is used to
separate the frequencies and this splits the signal
to the dedicated LF ampliļ¬er and the HF ampliļ¬er.
T his way, each ampliļ¬er is only working on the
given frequency range and, in turn, is powering the
corresponding driver inside the loudspeaker.
2. INPUT: Receive the signal coming from an external
ampliīer.
(PASSIVE +1/-1 connected; +2 -2 not connected)
( -AMP +1/-1 LF, +2-2 HF) BI
3. OUTPUT: Direct link for connecting a second
speaker parallel. in
(PASSIVE -1 connected; +2 -2 not connected) +1
( -AMP +1/-1 LF, +2-2 HF) BI
