Aluminium basket- PG designed, powder coated aluminium baskets
help deliver exceptional bass
High roll foam surround- Helps to maximize the performance of the
subwoofers
BASV bobbin former- Able to handle high temperatures to ensure
longevity of the subwoofer [ZMAX82: 2.5” / ZMAX122: 3”]
Vented frame & motor- Better thermal efciency, reduces motor
compression and provides extended low frequency response
Big quality motor- High quality magnet
[ZMAX82: 100oz / ZMAX122: 195oz]
FEATURES
Models: ZMAX82 - ZMAX122
ZR Series Subwoofers
ZR

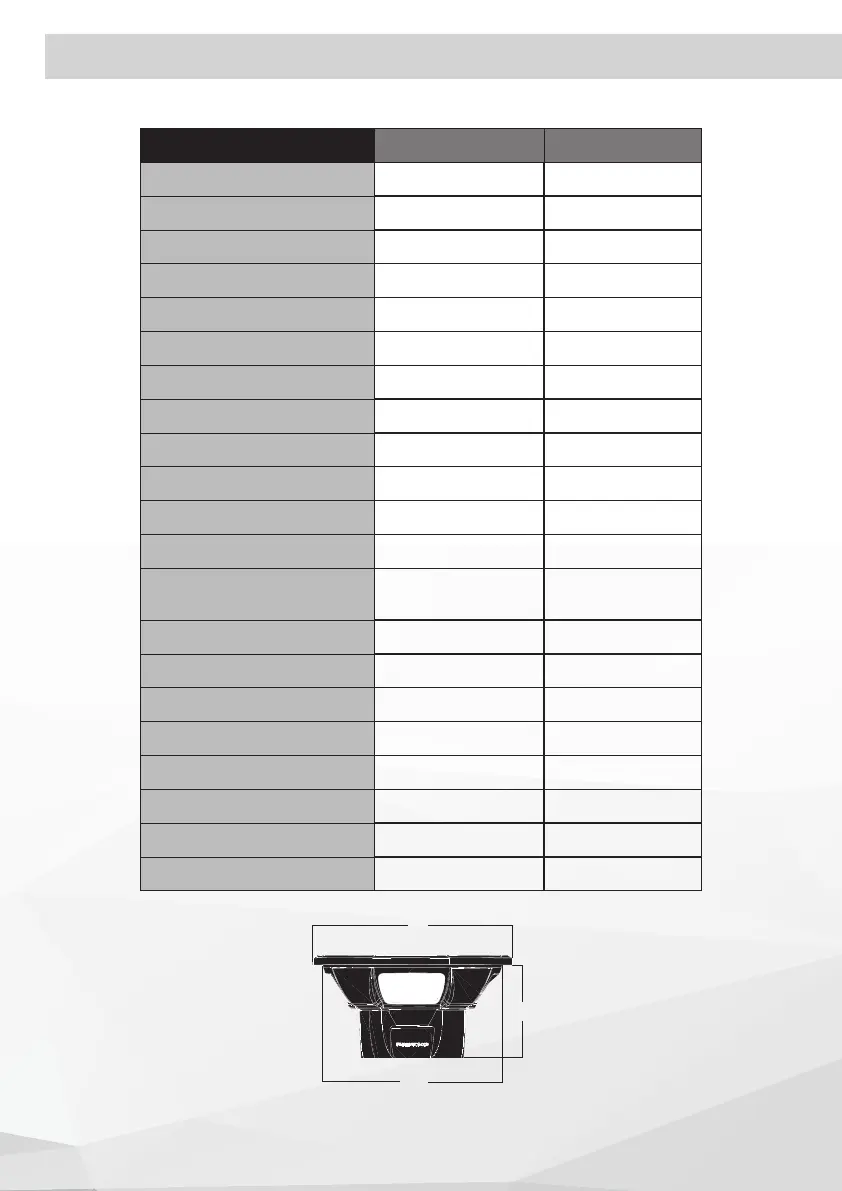

SPECIFICATION ZMAX82 ZMAX122
Nominal Impedance (Z) 1.85 ohms 3.50 ohms
DC Resistance (Re) 2 ohms 2.2 ohms
Resonance Frequency (Fs) 33.5 Hz49.7 Hz
Piston Area (Sd) 206.1cm
2510.7cm2
Force Factor (BL) 9.3 Tm 14.679 Tm
Mechanical Q Factor (Qms) 9.186 6.092
Electrical Q Factor (Qes) 0.585 0.423
Total Q Factor (Qts) 0.55 0.396
Sensitivity 1W/M (SPL) 81 dB 85 dB
Mechanical Compliance (Cms) 63.273 μM/N 57.261 μM/N
Moving Mass (Mms) 161.806 g 393.362 g
Linear Excursion (Xmax) 14.5mm 16.5mm
Volume Acoustic
Compliance (Vas)
3.82 Ltr
0.13 cu ft
21.2 Ltr
0.74 cu ft
Reference Efciency (NO.) 0.08% 0.18%
Nominal Power (Pe) 500 Watts 1500 Watts
Peak Power 1500 Watts 4500 Watts
Frequency Response 20-500 Hz 20-500 Hz
Voice Coil Diameter 2.3in/60mm 2.9in/75mm
Overall Diameter (A) 8.6in/218.50mm 12.95in/329.00mm
Cut Out Diameter (B) 7.35in/186.00mm 11.32in/287.53mm
Mounting Depth (C) 5.17in/131.49mm 7in/178.50mm
ZMAX82 / ZMAX122
B
A
C
Ported Enclosure - Punchy Bass
Net Internal Volume 25 Ltr
Slot Port Area 60cm2
Slot Port Length 29cm
Round Port Diameter 4 inch (10.16cm)
Round Port Length 40cm

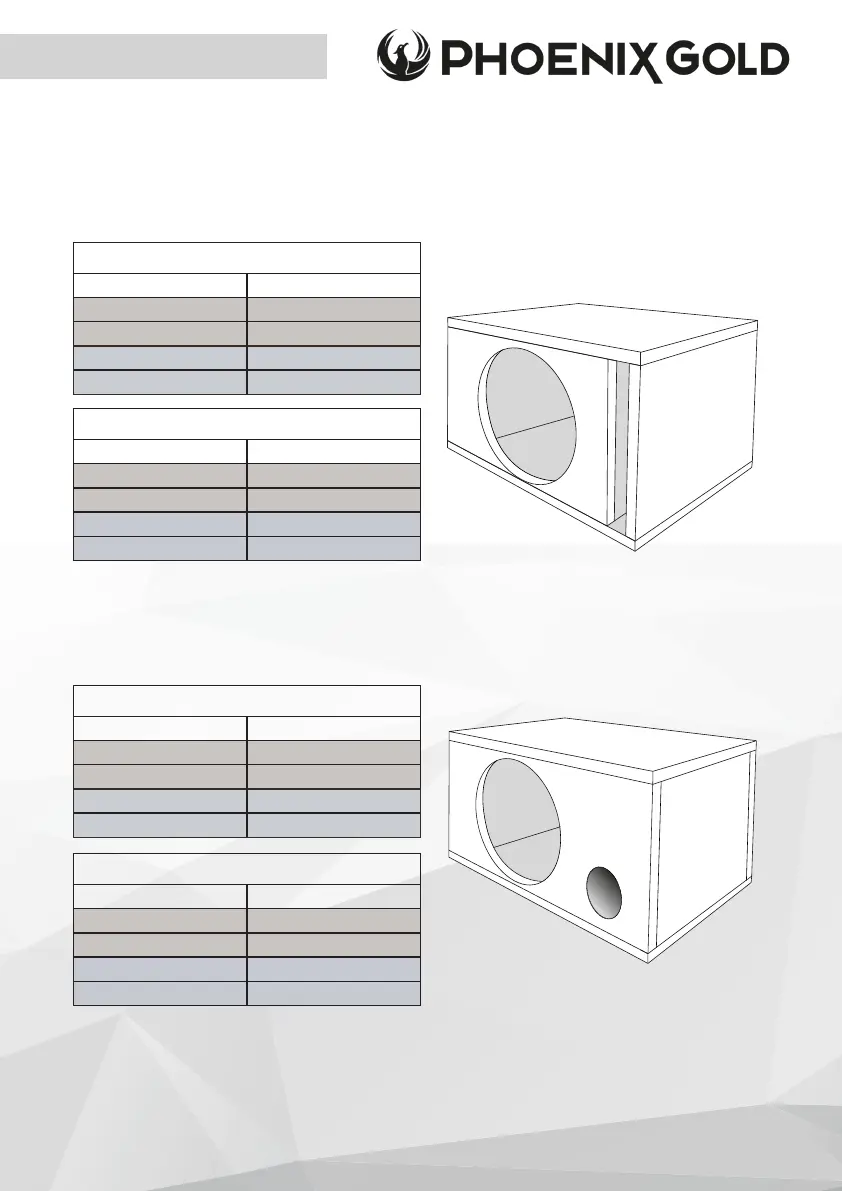

Enclosure Recommendations
Speaker and port displacement are already taken into account for recommended enclosures
ZMAX82
ZMAX122
Ported Enclosure - Deep Bass
Net Internal Volume 33 Ltr
Slot Port Area 60cm2
Slot Port Length 27cm
Round Port Diameter 4 inch (10.16cm)
Round Port Length 38cm
Ported Enclosure - Punchy Bass
Net Internal Volume 33 Ltr
Slot Port Area 90cm2
Slot Port Length 55cm
Round Port Diameter 4 inch (10.16cm)
Round Port Length 34cm
Ported Enclosure - Deep Bass
Net Internal Volume 40 Ltr
Slot Port Area 90cm2
Slot Port Length 41cm
Round Port Diameter 4 inch (10.16cm)
Round Port Length 37cm
Slot Port Example
Round Port Example
