NDK736 Mounting Kit

Nissan

2009-13 CUBE

2007-14 VERSA SEDAN

2007-12 VERSA HATCHBACK ( w/ Base CD Player)

2014 VERSA NOTE ( w/ Base CD Player)

VEHICLE APPLICATIONS

KIT ASSEMBLY INSTRUCTIONS

NISSAN VERSA (Use factory brackets for Double DIN)

1. Starting from the front, carefully pry up on the top dash vent trim and pull forward

to remove.

2. Remove the (2) Phillips screws securing the top edge of the radio trim bezel.

3. Carefully pull the radio trim bezel forward, disconnect all attached harnesses from the

back of the radio trim bezel and remove trim bezel.

4. Remove the (4) Phillips screws securing the factory radio to the sub-dash.

5. Carefully pull the radio forward, disconnect all harnesses and antenna connector and

remove radio.

DASH DISASSEMBLY

2007-12 NISSAN VERSA HATCHBACK

2007-14 NISSAN VERSA SEDAN

1. Remove the (2) Phillips screws (with plastic rings) securing the lower edge of the

Climate Control panel.

2. Carefully unclip and lower out of the way the Climate Control panel.

3. Remove the (2) Phillips screws securing the lower edge of the Radio/Vent trim bezel

to the sub-dash.

4. Carefully pry forward and unclip the lower edge of the Radio/Vent trim bezel and then

unclip the top edge and remove the bezel.

5. Remove the (4) Phillips screws securing the radio to the sub-dash

6. Pull the radio forward, disconnect all harnesses and antenna lead and remove radio.

DASH DISASSEMBLY

2009-13 NISSAN CUBE

1. This kit is an (ISO) mounting kit only. Remove metal sleeve from radio.

2. The mounting sleeve of your new radio and trim ring cannot be used when ISO

mounting an aftermarket radio. Your radio must have a removeable trim ring.

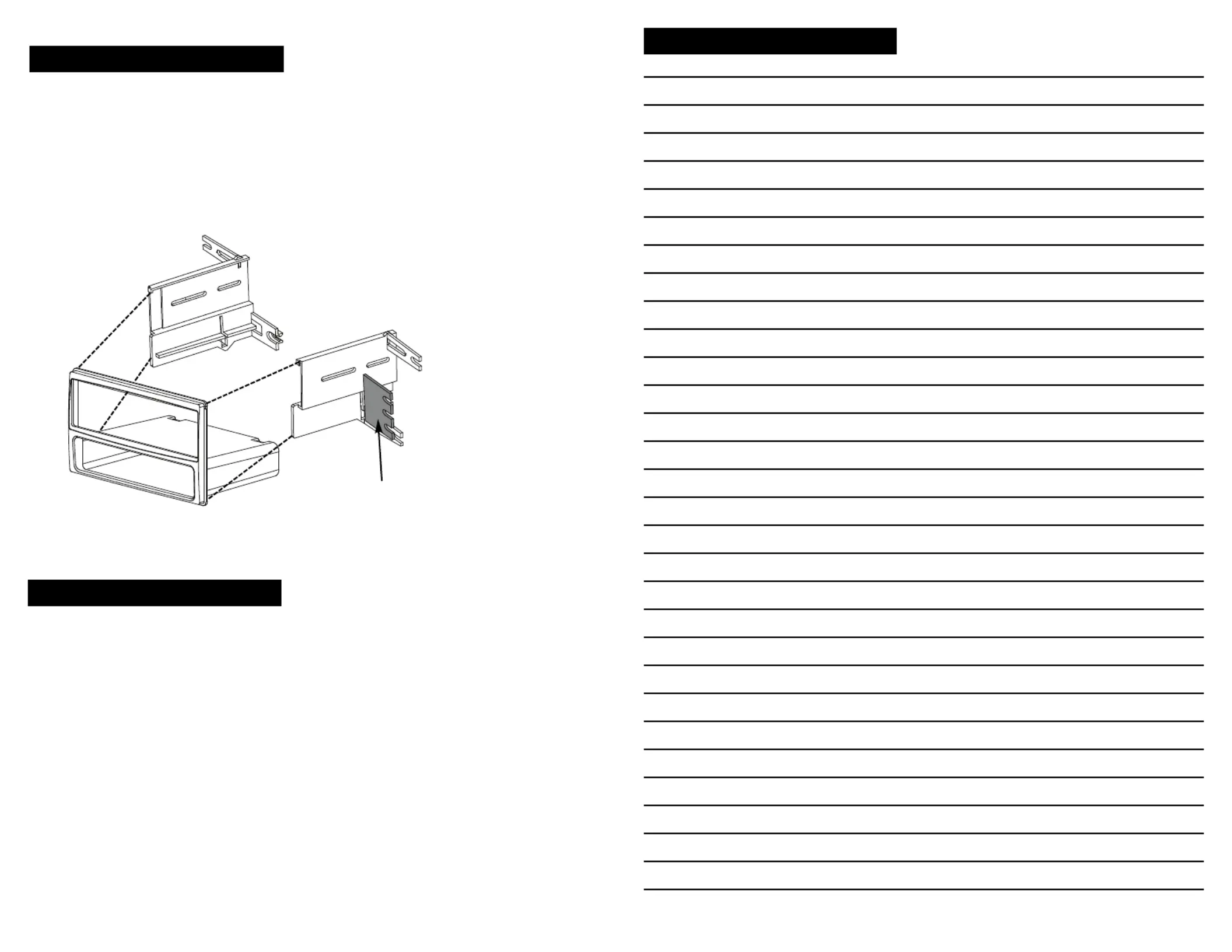

3. Insert left and right mounting brackets to rear of kit as shown in Figure A and attach

brackets to rear of pocket with small phillips screws supplied with kit.

4. Insert ISO mountable radio between ISO mount brackets and loosely attach to sides

of radio using screws provided with radio when possible or screws supplied with kit.

5. Slide radio forward or backward for desired look and tighten screws.

IMB736 LEFT

IMB736 RIGHT

Fig A

Remove shaded tabs on

left and right bracket

(Right tab hidden in picture)

2 7

NOTES

4 5

KIT ASSEMBLY INSTRUCTIONS

2012-14 NISSAN SEDAN/ 2014 NISSAN VERSA NOTE
