LS2
IN-DOOR/OUT-DOOR SPEAKER
INSTALL GUIDE
LS 2 INSTALL GUIDE

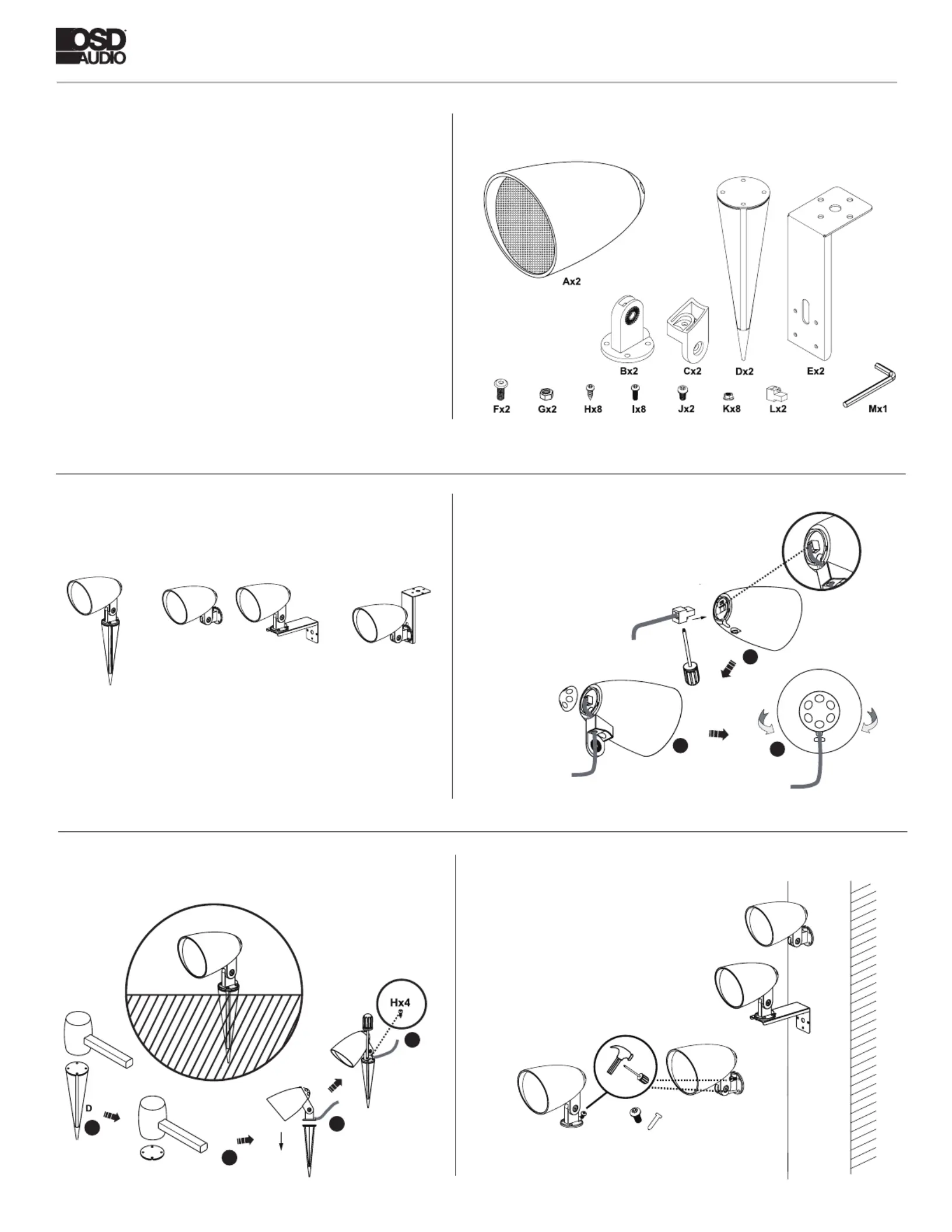

Tools Needed Parts List
Mounting Options Speaker Assembly
On-Ground On-Wall
- Drill
- Hammer/Mallet
- Knife
- Phillips Screwdriver
- Wire Cutter
- Measuring Tape
- Volume Control (Optional)
- Silicon Cable Connectors (Optional)
- Speaker Wire/ Direct Burial Wire
18 AWG minimum - for distances up to ….…………………… 10 ft
16 AWG - from ……………………………………………. 10 to 50 ft
14 AWG - from …………………………………………… 50 to 100ft
On-Ground On-Wall On-Ceiling
1
2
3
4
23
1
L
C
Wall
Floor
Connection
Placement
On-Ceiling

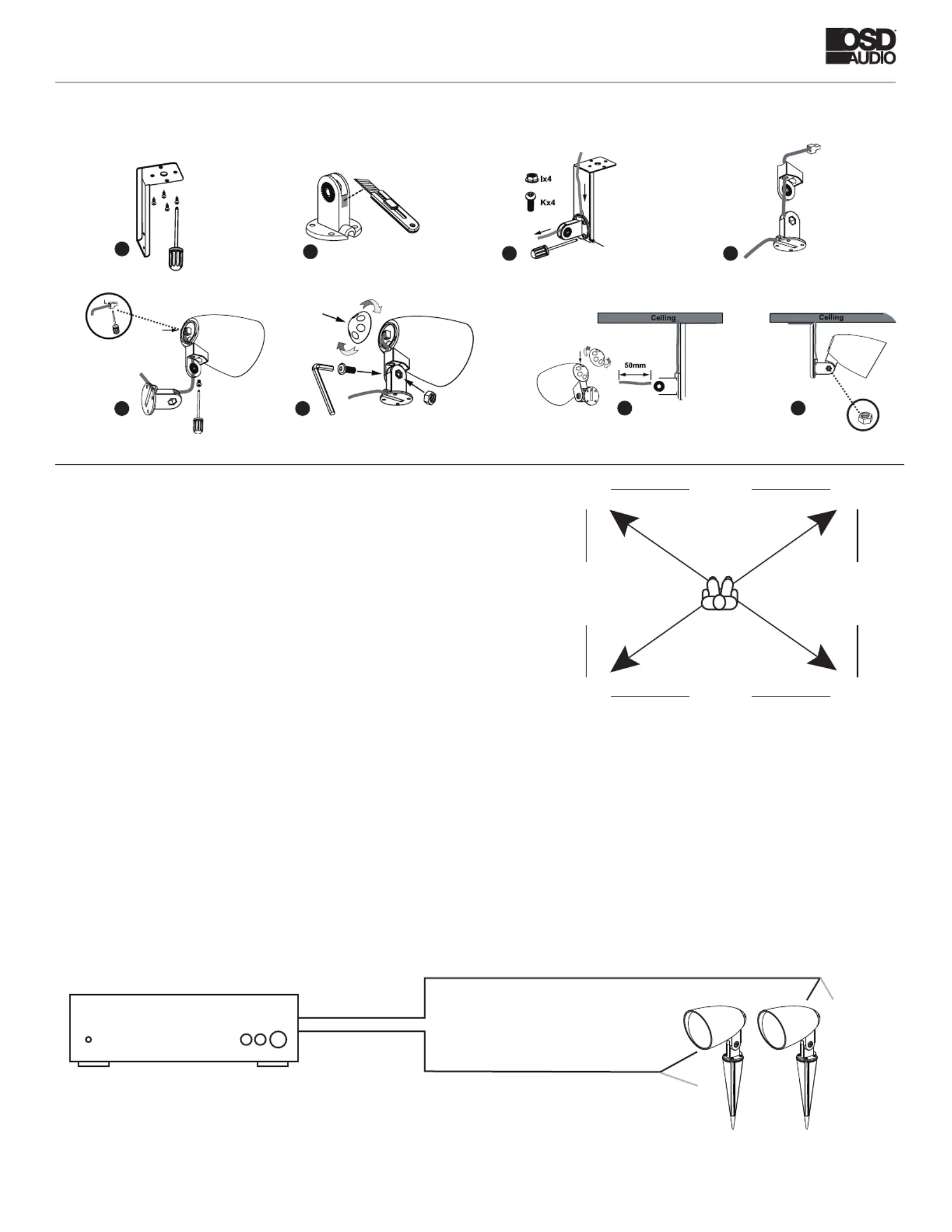

Designate the general listening area where the speakers would be most ideal.
The speakers should face the listening area and be placed with in 20 feet of
the general listening area for optimum performance. Use this method for both
indoor and outdoor applications. (See Diagram1)
Using a stereo receiver or multi-channel Amplier such as the OSD MX1260 connect the speakers. Please note, the red lead indicates
positive signal (+) and the black indicates negative signal (-). Connecting the positive and negative leads incorrectly will cause it to be
out of phase and will result in weak performance. (See Diagram 2)
LS 2 INSTALL GUIDE
RECEIVER/AMPLIFIER
Diagram 1
Diagram 2
Speaker Wire
Positive +
+
_
Negative -
15’ - 20’
15’ - 20’
15’ - 20’
15’ - 20’
RL
FL
RR
FR
Listening Area Center Reference
E
5 6 7 8
23 4
C
B
J
M
F
C
BG
G
E
B
BB
C
L
