NUVO NV-SUBAMP500-NA Manual
Read below š the manual in Italian for NUVO NV-SUBAMP500-NA (14 pages) in the Receiver category. This guide has been helpful for 2 people and has been rated 4.5 stars on average by 2 users
Page 1/14
Part Numbers
NV-SUBAMP100-xx
NV-SUBAMP200-xx
NV-SUBAMP500-xx
AMPLIFIER FEATURES
NV-SUBAMP100-xx
1 13 10
514 6 15 127
Fig. 1
NV-SUBAMP200-xx
19
5 12 11102071617
8
6 21415
Fig. 2
NV-SUBAMP500-xx
NOTE: Power mode, Volume control, Phase control, and Crossover control are accessed on the LCD display menu using the control knob.
19 2 3
219
12 111817 108 1020
Fig. 3
Installation Instructions
Nuvo In-Wall / In Ceiling Subwoofer Ampliļ¬ers
1507315 Rev A 20190328
2
1Status light
2LCD display
3Control knob
4Power mode switch
5Volume control
6Phase control
7Crossover control
8Low-level RCA input/
output jacks
9USB port
10 Voltage selector switch
11 Master power switch
12 Power cord inlet
13 WLS
14 High-level input
15
EQ selection:
A - NV-SUBIC8
B - NV-SUBIW8
C - SUBIWDUAL8
16 EQ mode
17 12 V DC trigger input/
output
18 IR
19 Power button
20 Sub terminal screws
21 Fuse
This instruction sheet covers the installation of the Nuvo In-Wall/In-Ceiling Subwoofer Ampliļ¬ers. These ampliļ¬ers offer a substantial amount of dynamic
power to increase the quality of your audio system.
UNDERSTANDING THE LCD PANEL FEATURES (FOR NV-SUBAMP500-XX MODELS)

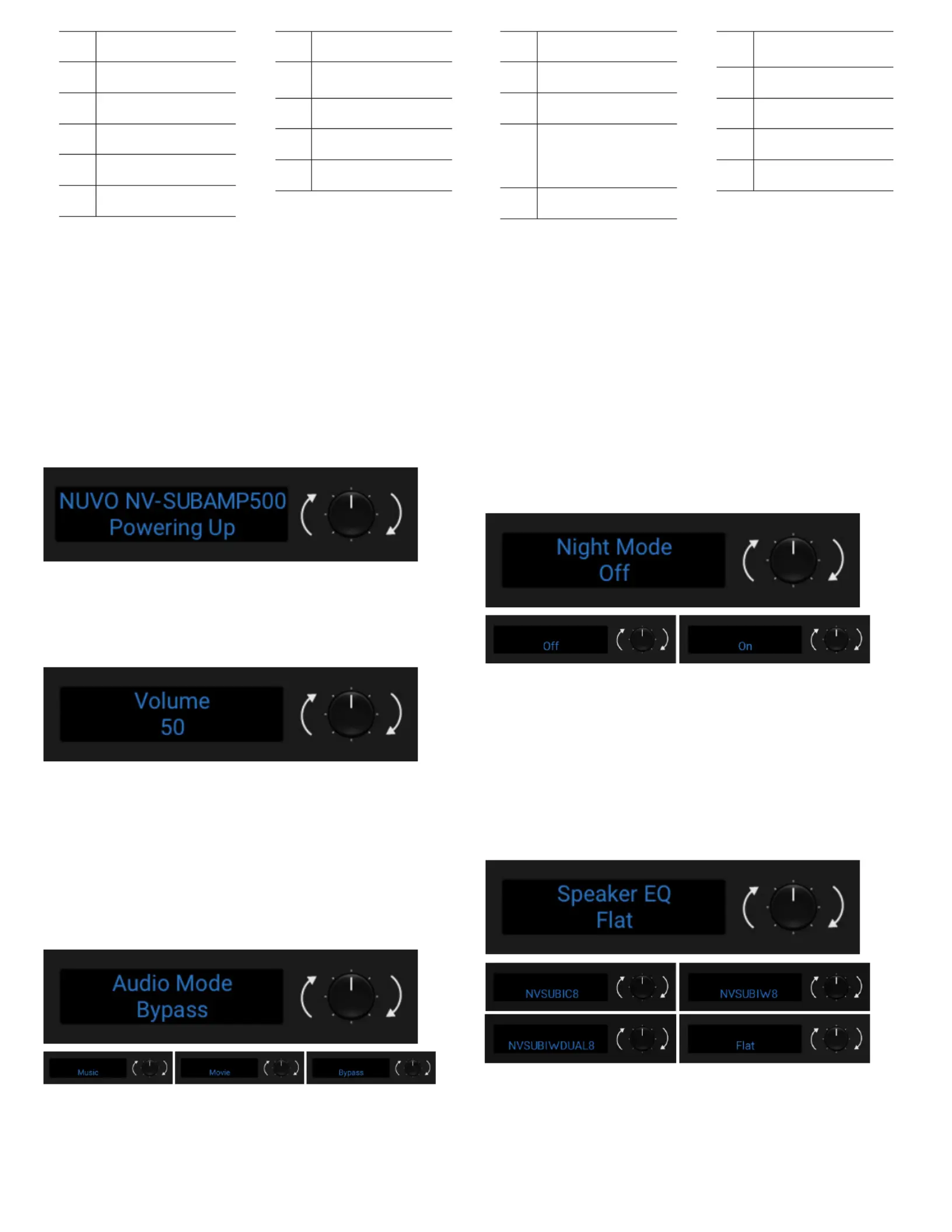

Power Up Screen
Shows a message that the system is powering up.
Home Screen/Volume
Option for adjusting volume level.
Audio Mode Screen/Status
This setting has presets to put the ampliļ¬er into a mode that supports
your favorite listening environment. Choose one of the following options:
ā¢ Music
ā¢ Movie
ā¢ Bypass
Night Mode Status
This setting places a low sound threshold on the system for evening use.
ā¢ Off
ā¢ On
Speaker EQ Screen
Select one of the following modes:
ā¢ NVSUBIC8 1
ā¢ NVSUBIW8 2
ā¢ NVSUBIWDUAL8 3
ā¢ Flat
3

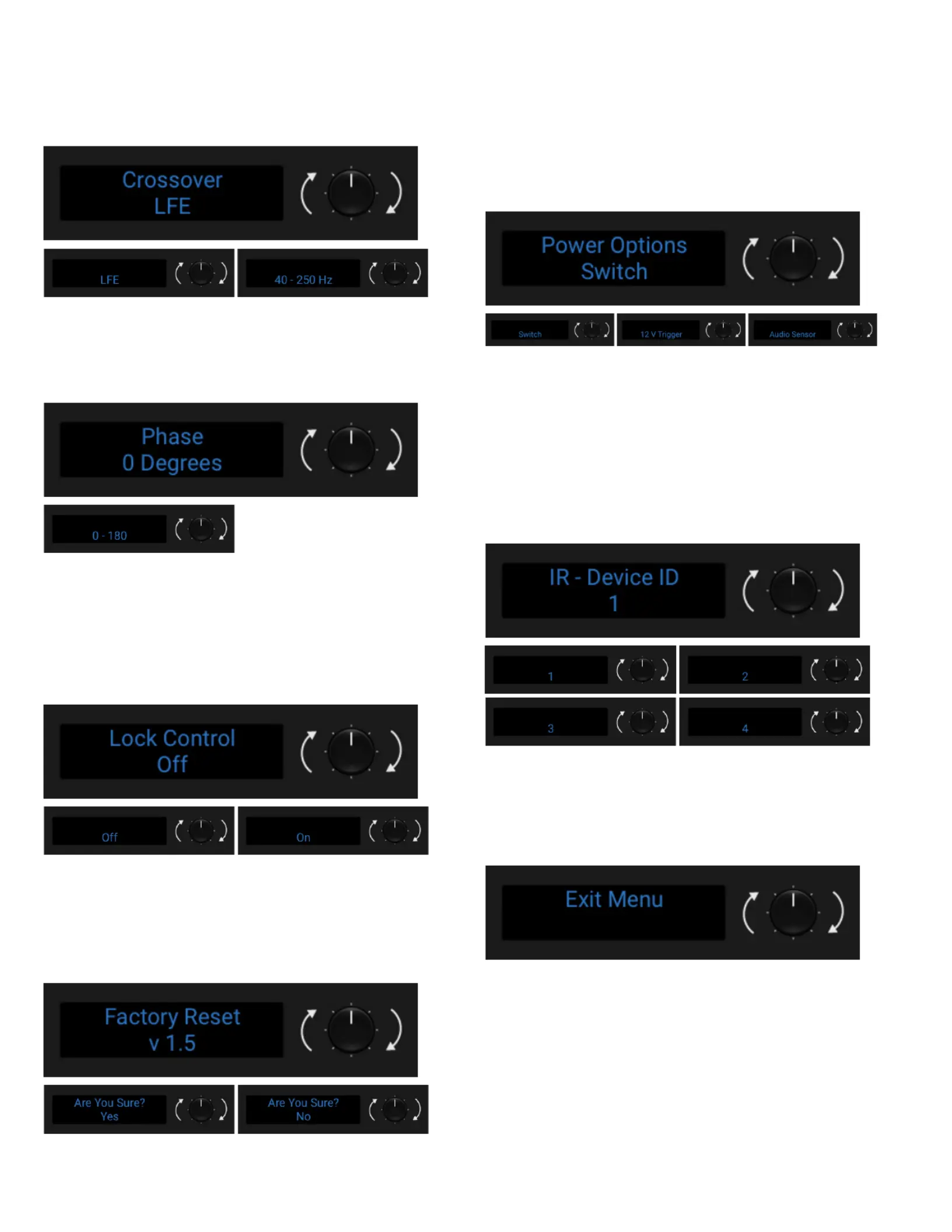

Crossover Main Screen
Crossover provides an option for a low pass ļ¬lter for the ampliļ¬er. Choose
from one of the following options:
ā¢ LFE (Default setting)
ā¢ 40 - 250 HZ
Phase Screen
ā¢ 0-180
Lock Control Main Screen
Locks the menu for the ampliļ¬er controls to prevent accidental changes.
ā¢ Off
ā¢ On
Factory Reset
ā¢ Yes: Resets all ampliļ¬er controls to the default settings.
ā¢ No
Power Options Screen
This setting sets the power state. Choose from one of the following options:
ā¢ The ampliļ¬er is always on. This is the default setting.Switch:
ā¢ 12 V Trigger: The ampliļ¬er turns on automatically upon receiving a 12 V
input signal. When the 12 V signal is removed, the ampliļ¬er automatically
goes into standby mode.
ā¢ The ampliļ¬er turns on automatically upon receiving an Audio Sensor:
audio input signal. When the ampliļ¬er no longer receives a signal, it
automatically moves into a standby state after 15 minutes.
IR - Device ID
Assigns an IR ID between 1 and 4 to the ampliļ¬ers in the system.
ā¢ 1
ā¢ 2
ā¢ 3
ā¢ 4
Exit Menu Screen
ā¢ Press the knob to exit the menu for the controls and bring up the Home/
Volume screen.
