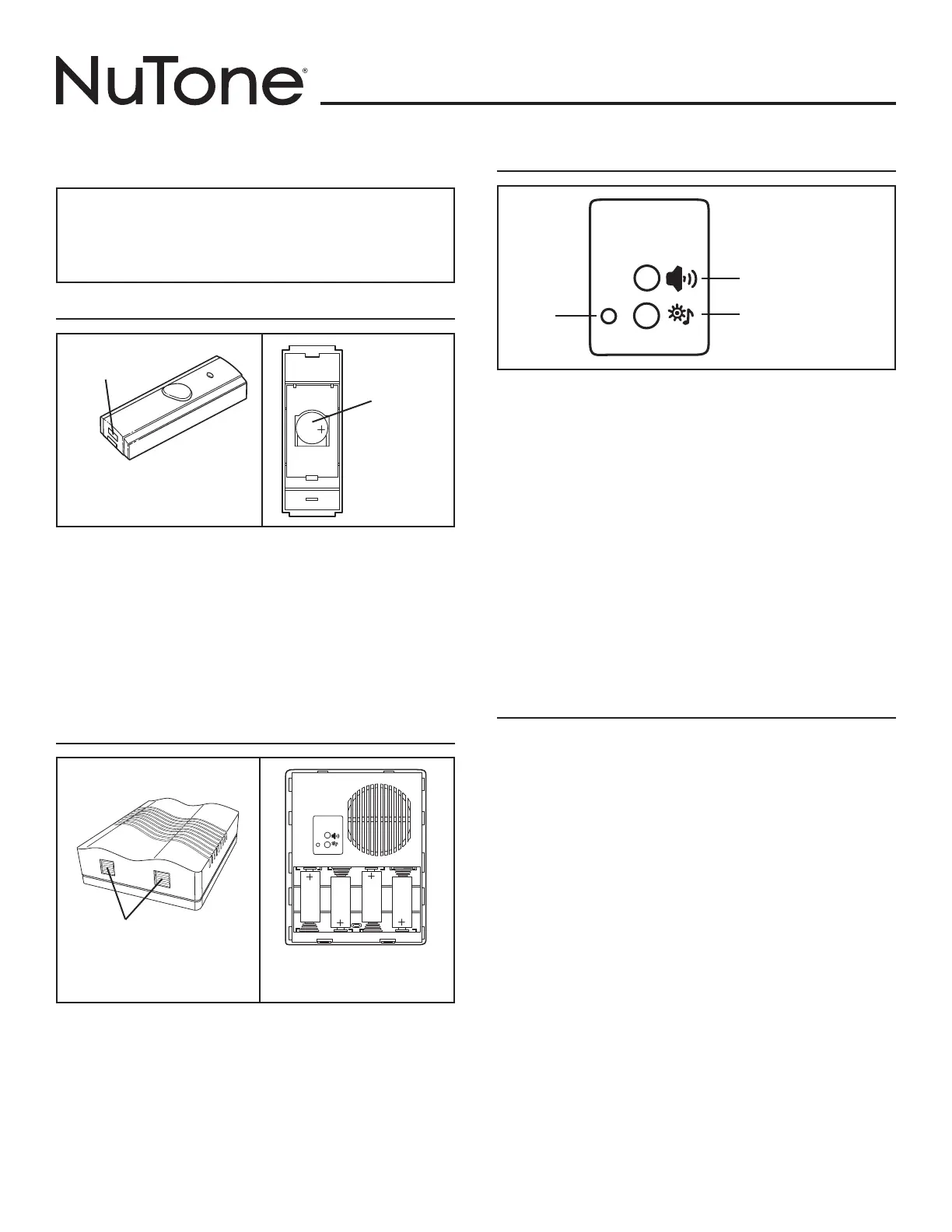

MODEL LA226WH

Page 1

SELECT-A-TONE WIRELESS CHIME

Installation & Operating Instructions

IMPORTANT: This wireless pushbutton and chime set is for

residential use, only. It will operate at an unobstructed distance of

300 feet. Building materials may reduce operating distance. Certain

building materials; such as, but not limited to metal, concrete, brick,

stucco and foil-lined insulation; cause greater interference than

others; for example, wood or vinyl siding.

INSTALL PUSHBUTTON BATTERY

Refer to Figures 1 and 2.

1. Remove pushbutton and 3V lithium coin-battery from packaging.

2. Insert small, flat-blade screwdriver into bottom of pushbutton and twist

to separate its base.

3. Orient battery with “+” side viewable.

4. Insert battery into holder and press to seat.

5. Insert top of mounting base onto pushbutton and press bottom

together until mounting base snaps securely onto pushbutton.

Use only 3V (volt) lithium CR2032 style coin-battery for

replacement.

INSTALL CHIME BATTERIES

Refer to Figures 3 and 4.

1. Remove chime from packaging.

2. Orient chime face-up.

3. Insert small, flat-blade screwdriver into bottom of locking-tabs, push

and tilt screwdriver to unlock tabs.

4. Lift bottom of cover to separate and remove it from base; set cover

aside.

5. Insert four (4) 1.5V “D” alkaline batteries (not supplied) oriented as

shown on back of battery compartment.

Figure 1

“PUSH”

TO OPEN COVER

Figure 3

3V LITHIUM

CR2032-STYLE

COIN

BATTERY

Figure 2

SLOT

Figure 4

“PUSH”

TO OPEN

4 - “D” SIZE BATTERIES

Figure 5

VOLUME BUTTON

LEARN BUTTON

LED

“LEARN” PROCEDURE

Refer to Figure 5.

1. Set pushbutton and chime next to each other.

2. Press and release “Learn” button.

3. LED lights to indicate “Learn” mode was entered.

4. Press and release wireless pushbutton.

5. Confirm chime-tone is heard.

6. Repeat Step 4 to cycle through available chime-tones.

7. When desired chime-tone is heard, press and release “Learn” button

(Note: Chime may not respond to this button being pressed if it is too

soon after chime-tone sounds).

8. LED should turn off to confirm “Learn” mode exited.

9. Press and release wireless pushbutton and confirm chime-tone

doesn’t change.

• Up to four (4) wireless pushbuttons can be used with a single chime

by selecting different chime-tones for each pushbutton.

• Chime can erase all “Learned” pushbuttons and tones by pressing

and holding “Learn” button; LED will light; after approximately 18

seconds, LED will turn off; release “Learn” button.

DETERMINE USABLE LOCATIONS

Do not plan to mount pushbutton directly on metal or concrete

surfaces; install a 1/8 to 1/4” wood spacer between pushbutton and

metal or concrete mounting surface.

Some stucco houses have metal mesh in the wall structure, which

will affect the wireless chime performance.

Experiment with various pushbutton and chime locations to

determine location that gives best performance before mounting

permanently.

Chime must not be located within 1-foot of any metal.

Pushbutton and chime should be located within 300-feet of each

other.

1. Place chime near its desired mounting location.

2. Select a level location and hold pushbutton in its desired mounting

location.

3. Press and release pushbutton.

4. Confirm chime-tone sounded.

5. If chime-tone does not sound, temporarily affix pushbutton to

mounting surface with double-stick or folded-over tape; repeat Steps 3

and 4.

6. If chime-tone still does not sound, move location of chime closer to

pushbutton; repeat Steps 3 and 4.

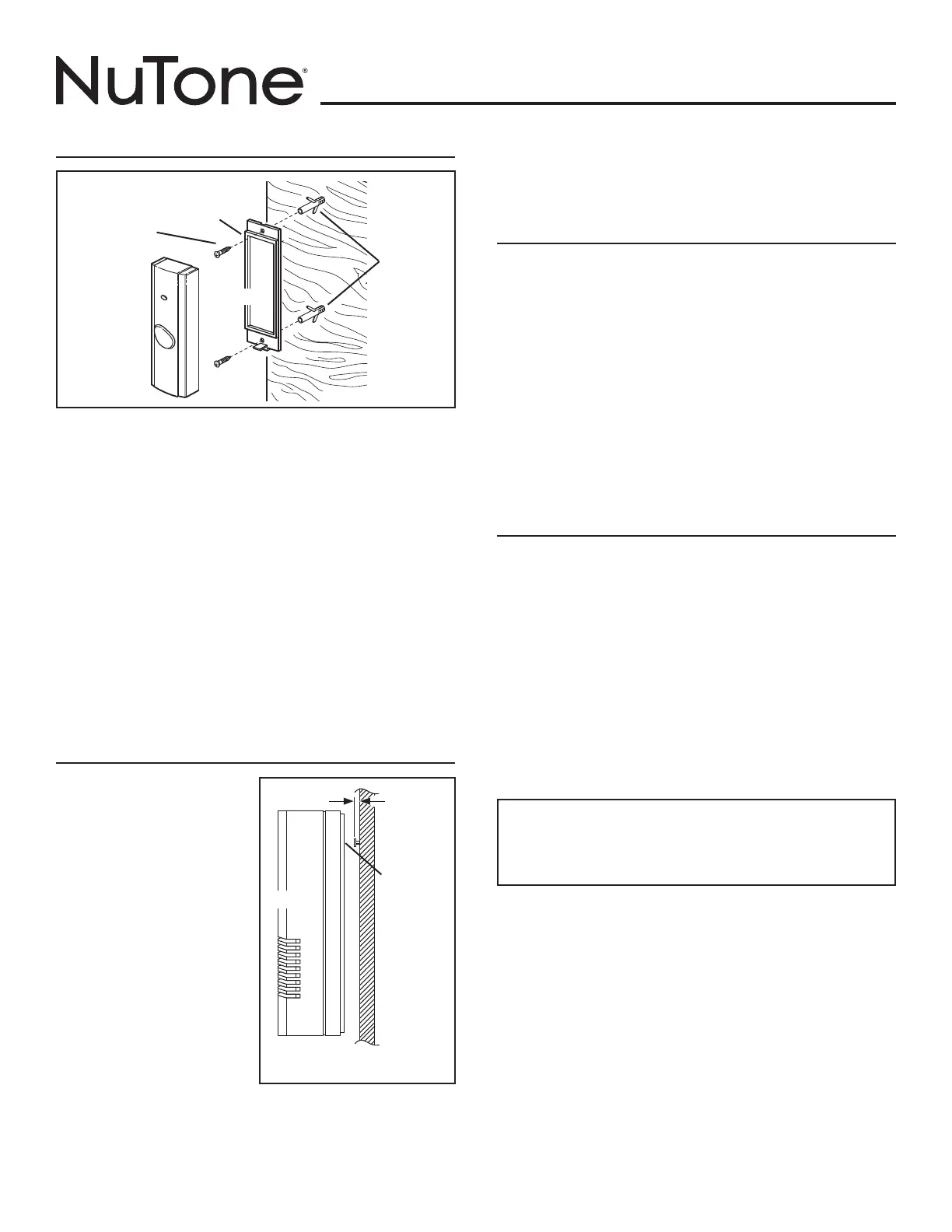

MODEL LA226WH

Page 2

Figure 6

MOUNT PUSHBUTTON

Refer to Figures 1 and 6.

1. After selecting usable locations in previous section, go to pushbutton

location.

2. Insert small, flat-blade screwdriver into slot in bottom of pushbutton

and twist to separate its mounting base.

3. Make sure pushbutton mounting location is level.

4. Position pushbutton mounting base with “TOP” arrow correctly

oriented and mark base mounting holes locations.

5. Drill two (2) holes, 1/16” diameter if using supplied screws alone or

3/16” diameter if using supplied plastic anchors and screws, at base

mounting hole locations.

6. If 3/16” diameter holes were drilled, insert supplied plastic anchors.

7. Secure pushbutton base to mounting location with two (2) supplied

screws.

8. Make sure black O-ring is completely seated in its mounting base

groove with round edge at top and flat edge at bottom.

9. Hook pushbutton top catch onto top of base, swing pushbutton into

position and press bottom of pushbutton until it securely snaps onto

base.

MOUNT CHIME

Refer to Figure 7.

1. Go to selected chime location.

2. Measure 3/4” down and

centered from top of chime

location and mark top mounting

screw position.

3. Measure 6 3/8” down and

centered from top of chime

location (5 5/8” from top screw

position) and mark bottom

mounting screw position.

4. Drill two (2) holes, 1/16”

diameter if using supplied

screws alone or 3/16” diameter

if using supplied plastic

anchors and screws, at marked

mounting screw locations.

5. If 3/16” diameter holes were

drilled, insert supplied plastic

anchors.

6. Insert and tighten top mounting

screw until 1/8” remains

protruding.

7. Remove four (4) “D” batteries from chime. (Note: Chime will remember

pushbutton “Learn” and tone when batteries are removed.)

8. Place chime keyhole slot over top mounting screw and apply slight

downward force to seat keyhole slot on top mounting screw.

9. Insert bottom screw through slot and start threads.

10.Level chime and tighten bottom screw.

11. Reinsert four (4) “D” batteries oriented as shown on back of battery

compartment.

SET VOLUME PROCEDURE

Refer to Figure 5.

There are four (4) volume levels which are accessed sequentially.

1. Press and release wireless pushbutton to sound chime tone.

2. Press and release “Volume” button to hear the next volume setting.

3. If chime tone is not sounding when “Volume” button is pressed then

chime will sound a beep to indicate volume setting.

4. Volume setting cycles from loud to medium-loud, medium-soft and soft

then back to loud.

5. Repeat Step 2 until desired volume level is set.

6. Last volume setting is remembered.

7. Press and release wireless pushbutton to sound chime tone and

confirm desired volume setting.

8. Hook top of cover to wall-mounted base and swing bottom into place.

9. Press bottom of front surface to secure locking-tabs.

TROUBLESHOOTING GUIDE

1. Chime does not sound:

a. Check battery polarity.

b. Replace batteries in chime and wireless pushbutton.

c. Bring pushbutton next to chime and test:

1. If chime sounds then change mounting location of chime.

2. If chime does not sound then conduct erase procedure per note

at end of “Learn” Procedure then conduct “Learn” Procedure,

Steps 1 through 9.

2. Chime loses volume or changes tone: Change batteries in chime.

3. Chime sounds when pushbutton is not pressed:

a. Release pushbutton catch at bottom and check inside for signs of

moisture; check O-ring for cracks or damage.

b. Conduct erase procedure per note at end of “Learn” Procedure then

conduct “Learn” Procedure, Steps 1 through 9.

Figure 7

BASE

PLASTIC

ANCHORS

TOP



BLACK

“O” RING

MOUNTING

SCREWS

CHIME

1/8”

KEYHOLE

SLOT

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including

interference that may cause undesired operation.

Regulatory Information

The user is cautioned that changes or modifications not

expressly approved by the party responsible for regulatory

compliance could void the user’s authority to operate this

equipment.

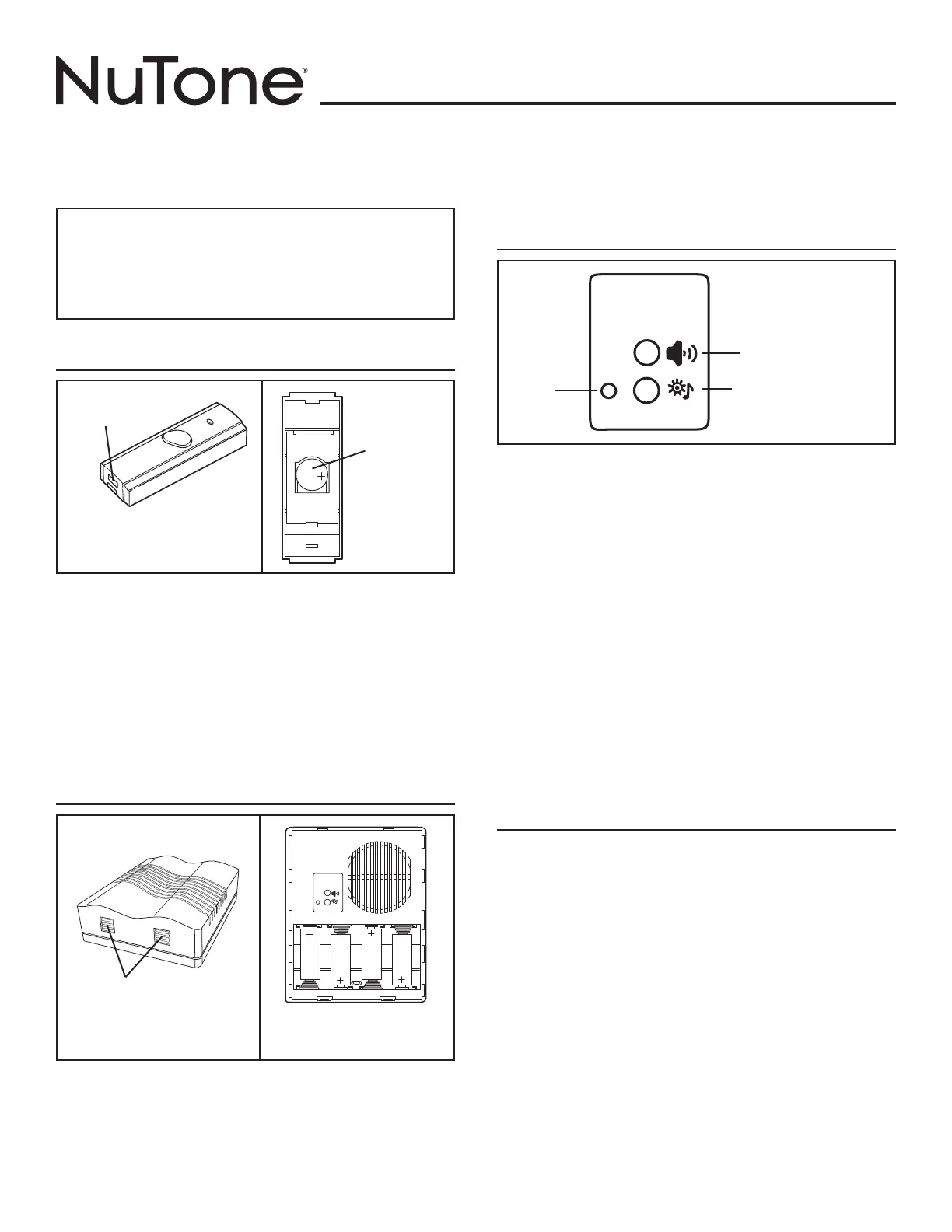

MODÈLE LA226WH

Page 3

CARILLON SANS FIL À SÉLECTION

DE TONALITÉ

Directives d’installation et d’utilisation

IMPORTANT : Cet ensemble de bouton-poussoir et de carillon sans fil

est conçu uniquement pour un usage résidentiel. Il fonctionne jusqu’à

une distance sans obstruction de 91 mètres (300 pi). Des matériaux

de construction peuvent en réduire la portée. Certains matériaux de

construction comme le métal, le béton, la brique, le stucco et l’isolant

couvert de papier aluminium causent plus d’interférences que

d’autres comme le parement de bois ou de vinyle.

INSTALLATION DE LA PILE

DU BOUTON-POUSSOIR

Voir les figures 1 et 2.

1. Sortez de l’emballage le bouton-poussoir et la pile bouton de 3V

aulithium.

2. Insérez un petit tournevis plat au bas du bouton-poussoir et tournez-le

pour en séparer la base.

3. Placez la pile avec le côté « + » visible.

4. Insérez la pile dans son logement et pressez pour l’appuyer.

5. Insérez la base dans le bouton-poussoir et pressez les deux parties

ensemble pour bien les emboîter.

N’utilisez qu’une pile bouton de 3V (volts) au lithium CR2032

comme pile de remplacement.

INSTALLATION DES PILES DU CARILLON

Voir les figures 3 et 4.

1. Sortez le carillon de l’emballage.

2. Placez le carillon face vers le bas.

3. Insérez un petit tournevis plat au bas des ergots de retenue et

tournez-le pour les dégager.

Figure 1

« POUSSER »

POUR OUVRIR

LE COUVERCLE

Figure 3

PILE BOUTON

AU LITHIUM

CR2032 3V

Figure 2

FENTE

Figure 4

« POUSSER »

POUR OUVRIR

4 PILES DE TYPE « D »

Figure 5

BOUTON DE VOLUME

BOUTON APPRENDRE

DEL

4. Soulevez le bas du couvercle et séparez-le de la base; mettez le

couvercle de côté.

5. Insérez quatre (4) piles alcalines « D » de 1,5 V (non comprises) dans

le sens indiqué au fond du compartiment à piles.

PROCÉDURE D’« APPRENTISSAGE »

Voir la figure 5.

1. Placez le bouton-poussoir et le carillon l’un à côté de l’autre.

2. Appuyez sur le bouton « Apprendre » puis relâchez-le.

3. La DEL s’allume pour indiquer que vous êtes entré en mode

« Apprentissage ».

4. Appuyez sur le bouton-poussoir sans fil puis relâchez-le.

5. Confirmez que vous avez bien entendu le carillon.

6. Répétez l’étape 4 pour passer entre les tonalités du carillon.

7. Lorsque vous entendez le type de carillon souhaité, appuyez sur le

bouton « Apprendre ». (Remarque : le carillon risque de ne pas réagir si

vous appuyez trop tôt sur ce bouton après que le carillon aitrésonné).

8. La DEL devrait s’éteindre pour confirmer que vous avez quitté le mode

« Apprentissage ».

9. Appuyez sur le bouton-poussoir sans fil et relâchez-le pour vérifier

que la tonalité du carillon n’a pas changé.

• Vous pouvez utiliser jusqu’à quatre (4) boutons-poussoirs sans fil avec

le même carillon en choisissant des tonalités différentes pour chacun.

• Le carillon peut effacer tous les boutons-poussoirs et tonalités

« appris » si vous maintenez appuyé le bouton « Apprendre »; la DEL

s’allume alors; après environ 18 secondes la DEL s’éteint; relâchez

alors le bouton « Apprendre ».

CHOIX DES EMPLACEMENTS UTILISABLES

Ne fixez pas le bouton-poussoir directement sur une surface en

métal ou en béton; installez une petite cale en bois de 3 à 6 mm

(1/8 à 1/4 po) entre le bouton et la surface métallique ou en béton.

Certaines maisons à revêtement en stucco ont un treillis métallique

dans leur charpente, ce qui nuira au fonctionnement du carillon.

Essayez divers emplacements pour le bouton-poussoir et le carillon

pour déterminer le meilleur endroit possible avant de les fixer en

permanence.

Le carillon ne doit pas être situé à moins de 30 cm (1 pi) de toute

surface métallique.

Le bouton-poussoir et le carillon ne doivent pas être séparés de

plus de 91 mètres (300 pi) l’un de l’autre.

1. Placez le carillon près de l’endroit où il sera fixé.

2. Choisissez un endroit de niveau et tenez le bouton-poussoir

àl’emplacement voulu.

3. Appuyez sur le bouton-poussoir et relâchez-le.

4. Vérifiez que le carillon a bien sonné.

5. Si le carillon ne sonne pas, fixez temporairement le bouton-poussoir à

la surface de montage avec du ruban double face ou un ruban replié;

répétez les étapes 3 et 4.

6. Si le carillon ne sonne toujours pas, rapprochez le carillon du bouton-

poussoir; répétez les étapes 3 et 4.

Product Specifications

Brand:	NuTone
Category:	Doorbell
Model:	LA226WH

Do you need help?

If you need help with NuTone LA226WH, ask a question below and other users will answer you

Your Name*

Your Email*

Write your question here

Doorbell NuTone User Manuals

NuTone BKL342LWH Manual

15 October 2024

NuTone LA225WH Manual

15 October 2024

NuTone LA227WH Manual

15 October 2024

NuTone BKL340KWH Manual

15 October 2024

NuTone LA226WH Manual

15 October 2024

NuTone LA224RWH Manual

15 October 2024

NuTone LA223WH Manual

15 October 2024

Doorbell User Manuals

Latest Doorbell User Manuals

Ezviz EP3X Pro Manual

26 October 2024

Infiniton CMPTRAL-A64N Manual

21 October 2024

Elektrobock BZ33-MP3 Manual

21 October 2024

18 October 2024

17 October 2024

17 October 2024

17 October 2024

Cata THALASSA PRO 80 GGR Manual

15 October 2024

Cata LEGEND 700 X Manual

15 October 2024

Cata F-2290 X Manual

15 October 2024
