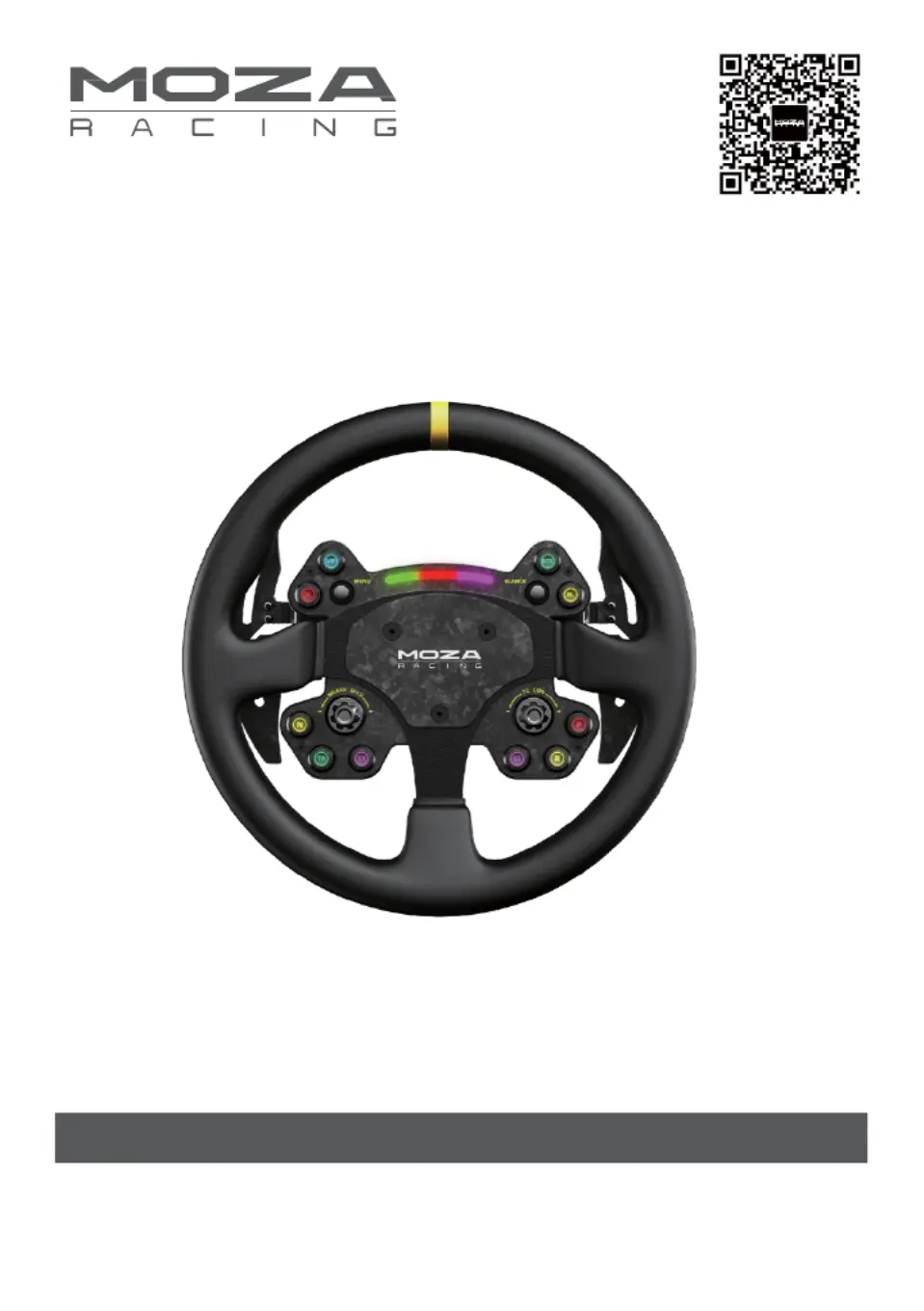

RS V2 Steering Wheel
Quick Guide
User Manual 使用
说
明
书
01
Product Description
·
Dual-Clutch Photoelectric Magnetic Paddles.
·
RGB Programmable Flow Shift Light.
·
10 illuminated programmable mechanical Keys
·
Racing Quick Release
·
Aluminum Alloy Back Shell
02
How to Use the Quick Release OR Quick Release Setup
1.
Aline the 6 steel balls on the steering wheel quick release female connector to the
corresponding 6 grooves on the base quick release male connector.
2.
Press the steering wheel down to join the connectors.
3.
Once locked check to ensure the steering wheel is connected to base by rotating the wheel.
4.
To remove the steering wheel, pull up the golden sleeve with both hands and remove the steering
wheel at the same time.
03
Racing Wheel Configuration
The steering wheel can be set conveniently and quickly in the MOZA Pit House suite software.
·
Down paddle mode: Set the mode of double clutch paddles, which can be set as left and right
composite axes, left and right independent axes and keys.
·
Speed follow-up: Turn on or off the linkage between LED shift indicator and speed.
·
Indicator display mode: It is divided into mode 1 and mode 2. When the mouse moves over the
option, a detailed explanation will pop up.
·
Speed prompt setting: It is divided into advance type, standard type and limit type, according to the
relationship between speed and the time when the shift indicator light ison.
·
Brightness adjustment: Adjust the brightness of the shift indicator.
·
Dial calibration: click here to calibrate the dial if the dial sensing is abnormal.
·
Indicator Light Color Adjustment: 7 colors can be set separately for each LED, adjust the color of
the MOZA Flow shifter according to your preferences.
Enter the debugging mode by pressing buttons in a sequence. You can set the color of the illuminated
button as follows: Press and hold the thumb knobs (BRAKE BIASand TC CON ) on the left and right at
the same time until the gear shift indicator flashes,and then enter the button setting mode.
Each time you press the button, you can change a color, and there are 9 colors in total.
04
(for detailed steering wheel settings and functions, please visit the officialwebsite of
MOZA Racing)
Installation of Paddle Approach Block
Place the steering wheel on a flat surface facing down, use a hexagonal wrench to removethe screw
on the side of the trigger lever of the shift paddle, and then use a wrench to liftthe latch from the
side of the magnetic paddle, and pull the trigger lever of the paddleoutward to obtain the best space
for disassembling and assembling paddles; use a hexagonal wrench to remove the screws on the
shift paddles, put on the heightening block and tighten with the long screws, and finally put the latch
back in place and tightenscrews. The heightening block can help shorten the distance between the
magnetic shifter paddles and hands by 8mm.

Product Specifications

Brand: MOZA
Category: Controller
Model: RS V2
