Modular Video Wall System
with Push-to-Pop-out and Anti-Theft Features
User’s Manual
User′s Manual2
Be sure to read this entire manual thoroughly and you fully understand all the instructions and warning before
attempting to begin your installation.
This products should only be installed by someone who has a basic knowledge of building constructio
installations and fully undestnd these instrudtions.
Always have someone assit you to lift and position your equipment.
Tighten screws and bolts firmly, but do not over tighten. Over tightening can damage the item and greatly
reduce their ability to hold.Please refer to suggested torque values where applicable in these instructions.
Maximum Flat-panel Weight: 50 kg
THE WALL STRUCTURE MUST BE CAPABLE OF
SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF
THE FALT-PANEL. IF NOT, THE WALL STRUCTURE MUST
BE REINFORCED.
Pencil Protective EyewearElectronic Stud Finder 1/4˝ Drill BitPortable Drill
Head Screwdriver Socket Wrench
½˝ Socket
Level
Installation Tools
The following tools may be required depending on your installation.
User′s Manual 3
Parts List
One-Latch Mounting Base -AA (Qty 1) (Qty 2)600mmX400mm adaptor-CCLeft and Right Mounting Bracket-BB
(Qty 1 Each)
M5 x 16mm Screw
(Qty 4)
(Qty 6) (Qty 6) (Qty 6) (Qty 8) (Qty 4) (Installed)
(Qty 4)(Qty 4) (Qty 4) (Qty 8) (Qty 1)
(Qty 4) (Qty 4) (Qty 4) (Qty 4)
A B C D E
F G H I J
K L M N O
M5 x 30mm Screw M6 x 16mm Screw M6 x 30mm Screw M8 x 16mm Screw
M8 x 30mm Screw M8 x 50mm Screw 16x6.2x1.5 Metal washer 13x8.2x5 Spacer 5mm Allen Key
16x8.2x1.5 Metal washer 8*70 Lag Bolt Anchor 13x8.2x13 Spacer M8 x 15mm Screw
Features

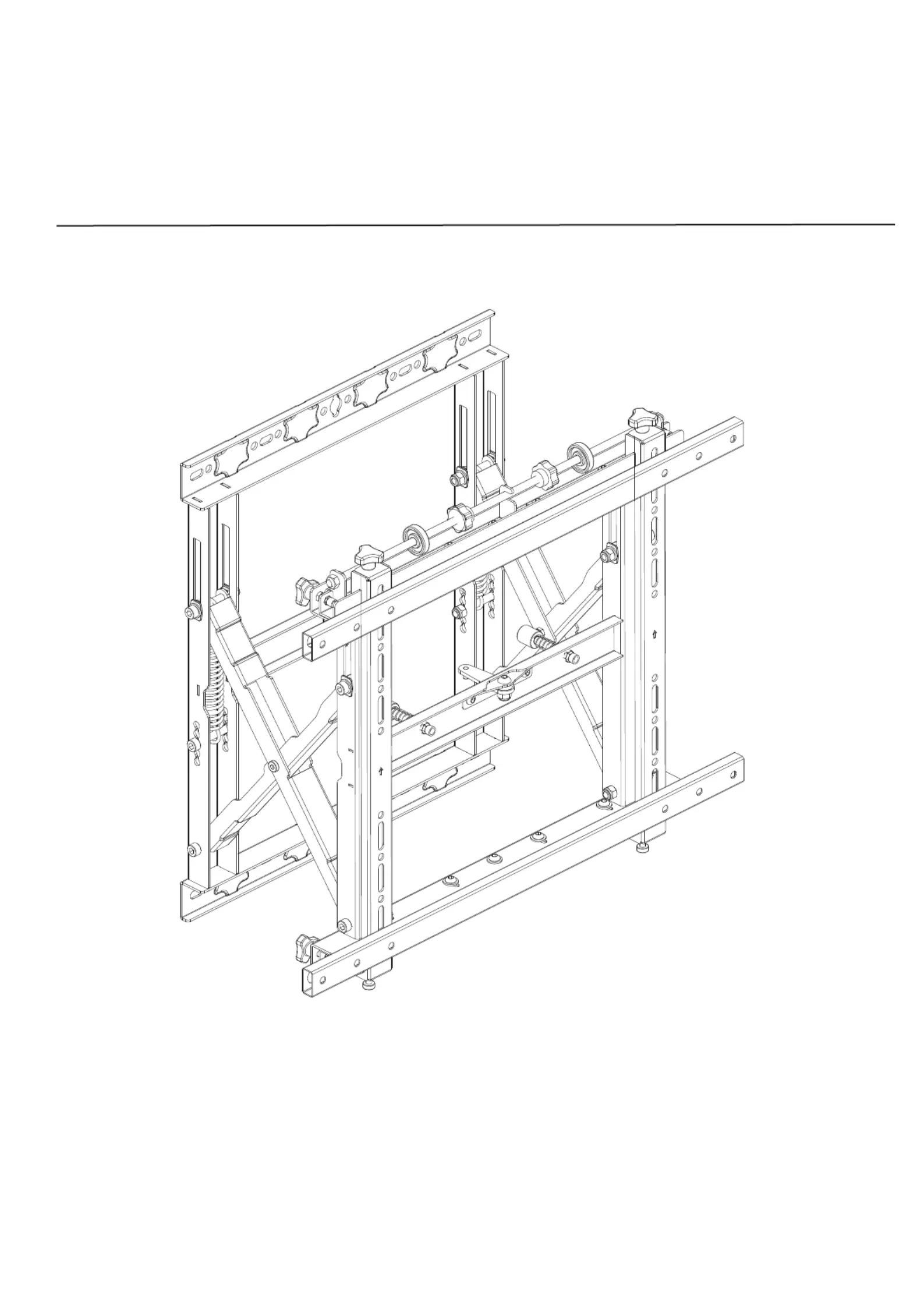

Video Wall Pop-Out Module is a customizable video wall mounting system featuring multi-monitor stacking, open design,
and scissor mount extension. It has an extending scissor mount for easy installation,cable management and servicing.
Post-Installation Adjustments
Leveling, tilt and in-out adjustment
knobs make it easier than ever to
flush and level the flat-panels for
a seamless video wall.
Cable/Electrical Access
Allows for easy cable access
and power distribution installations.
Locking Safety Screws
Prevent the flat-panel from
being removed or dislodged
from the mount. Use for added
protection.
Spring Lock
Simply push the mounting rails
in to lock or unlock the mount from
the closed position.
Product Specifications
| Brand: | Mount-It! |
| Category: | wall support |
| Model: | MI-367 |
