MooreCo 83951 Manual
MooreCo
Whiteboard
83951
Read below 📖 the manual in Italian for MooreCo 83951 (5 pages) in the Whiteboard category. This guide has been helpful for 4 people and has been rated 4.5 stars on average by 2 users
Page 1/5
1
Enlighten Boards
Assembly Instructions
T M
2
Part Drawing Description Qty

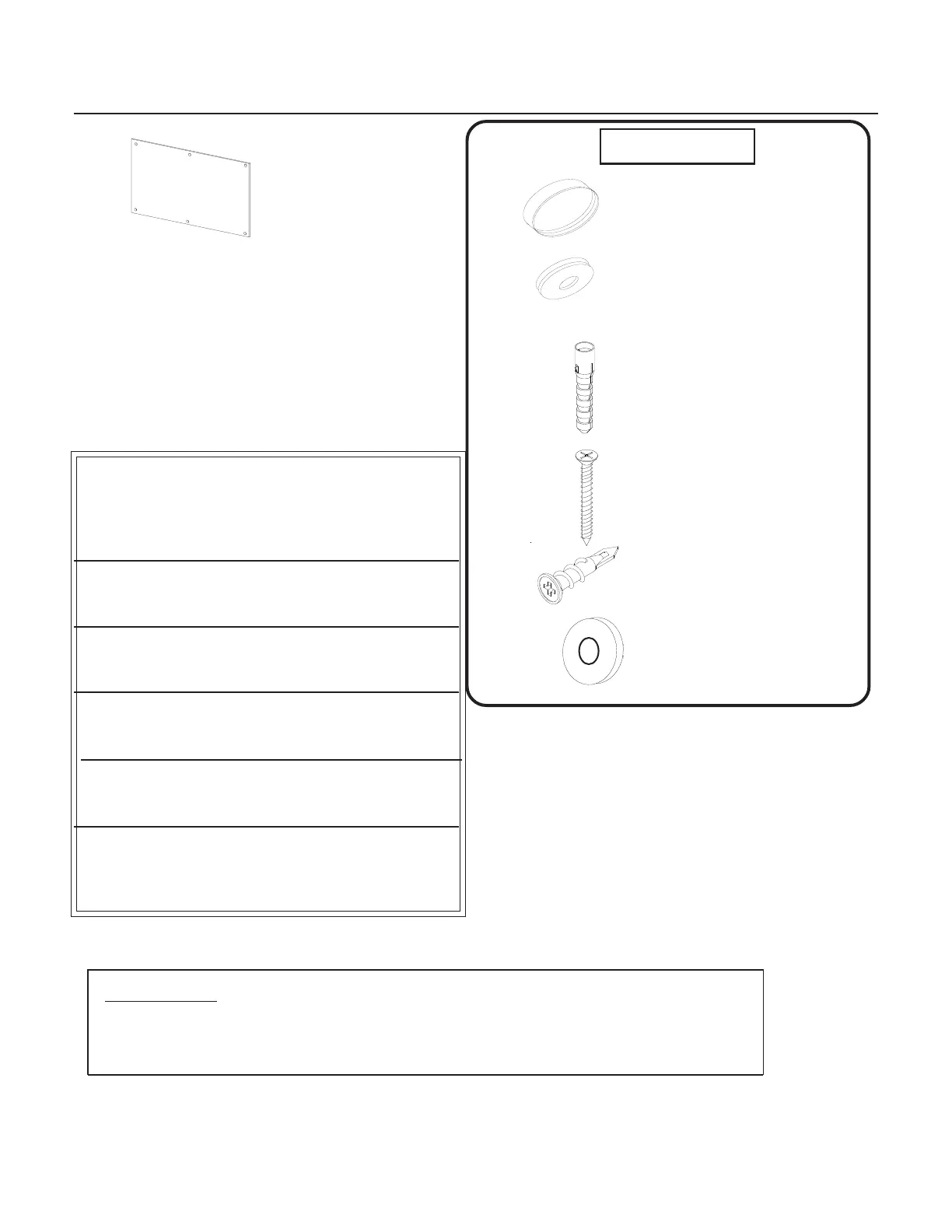

Hardware List
P-1 Glass Board 1 EA
EEnlighten Board
A Outer Cap Chart
B Brass Mount Chart
C Plastic Anchor Chart
D CS Screw Chart
Part Drawing Description Qty
Hardware Chart by Board Size
2’X3’ GBoard - 4 pcs. (A), (B)
4 pcs. (C), (D),(E)
3’X4’ GBoard - 4 pcs. (A), (B)
4 pcs. (C), (D), (E)
4’X6’ GBoard - 6 pcs. (A), (B)
6 pcs. (C), (D), (E)
1’ X1’ GBoard- 4 pcs. (A),(B)
4 pcs. (C), (D), (E)
1.5” X 2’ GBoard- 4 pcs. (A), (B)
4 pcs. (C), (D), (E)
20” X 30” GBoard-4 pcs. (A),(B)
4 pcs. (C), (D), (E)
See
See
See
See
TM
E Drywall Anchor See
Chart
F Plastic Washer See
Chart
4 pcs. (F)
4 pcs. (F)
6 pcs. (F)
4 pcs. (F)
4 pcs. (F)
4 pcs. (F)
Special Note:
Your new glass board requires a flat wall for mounting. Make sure the
area behind the glass board is free of any high spots.
3
Measure the length and width of your new board. Determine the wall center line and height
off the floor that you want your new board to be located. Hold your board up in position and
draw a line under the bottom of the board and parallel with the floor. If your wall has studs,
determine the centerline of the studs. It is recommended that you tie into as many studs
as possible when mounting your board. .
stallPreparing to Install Your New Enlighten Board
NOTE: The proper installation of your board will require at least two people.
Tools required: Tape measure, chalkline, electric drill / screwdriver, drill and
screwdriver bits, stud finder and level. .
TM
1.)

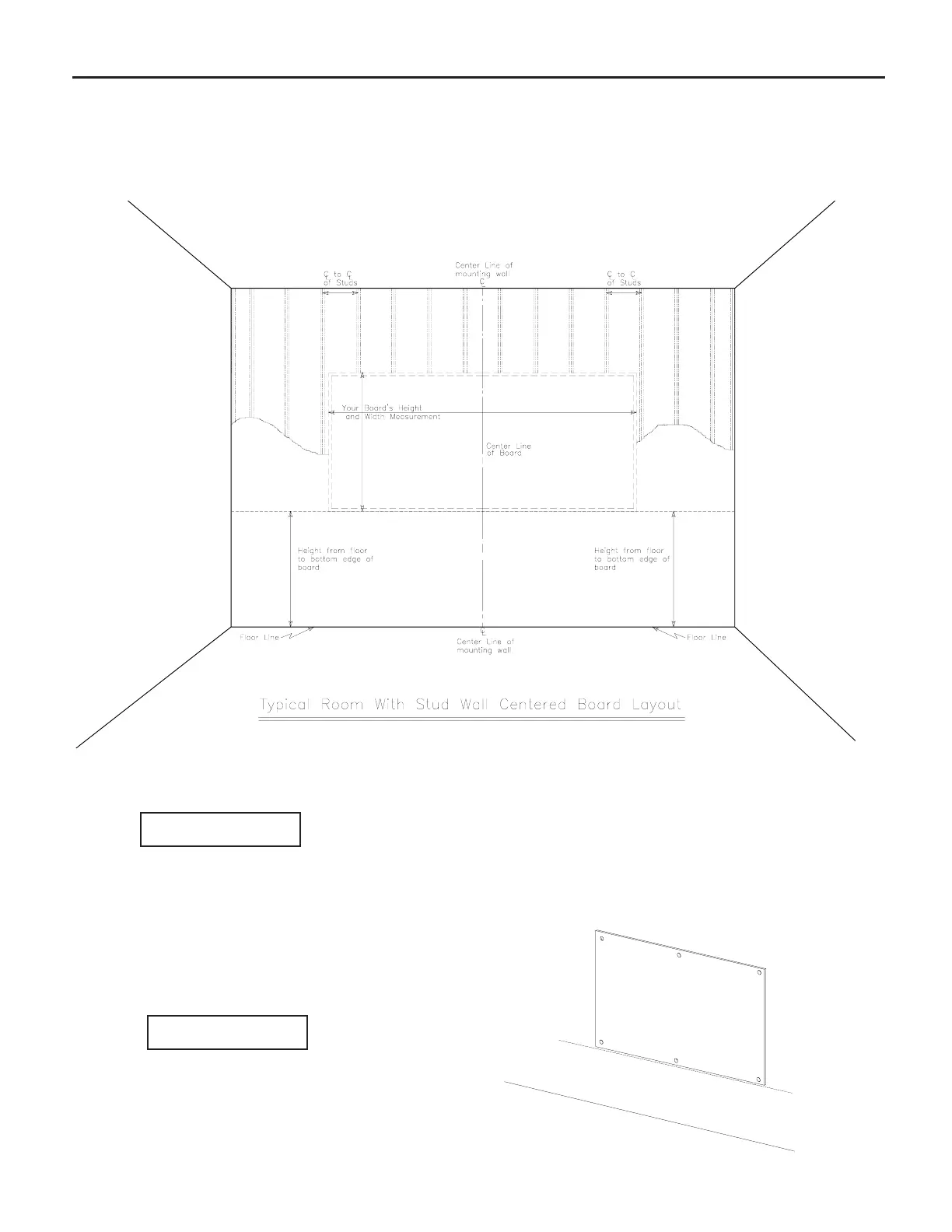

Illustration # 1
2.) When you have your glass board positioned,
mark the wall through the mount holes that are
in the board.
Illustration # 2
Product Specifications
| Brand: | MooreCo |
| Category: | Whiteboard |
| Model: | 83951 |
