Installation
Instructions
BEFORE YOU BEGIN
Read these instructions carefully and completely.
• IMPORTANT — Save these instructions
for local inspector’s use.
• IMPORTANT — Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Product failure due to improper installation is not
covered under the Warranty.
• WARNING This appliance must be properly
grounded.
• ATTENTION INSTALLER
ALL COOKTOPS MUST BE HARD WIRED
(DIRECT WIRED) INTO AN APPROVED
JUNCTION BOX. A “PLUG AND RECEPTACLE”
IS NOT PERMITTED ON THESE PRODUCTS.
• Proper installation is the responsibility of the
installer and product failure due to improper
installation is NOT covered under warranty.
30 and 36”
Electric Cooktop - Radiant
Excludes Down-Draft Models

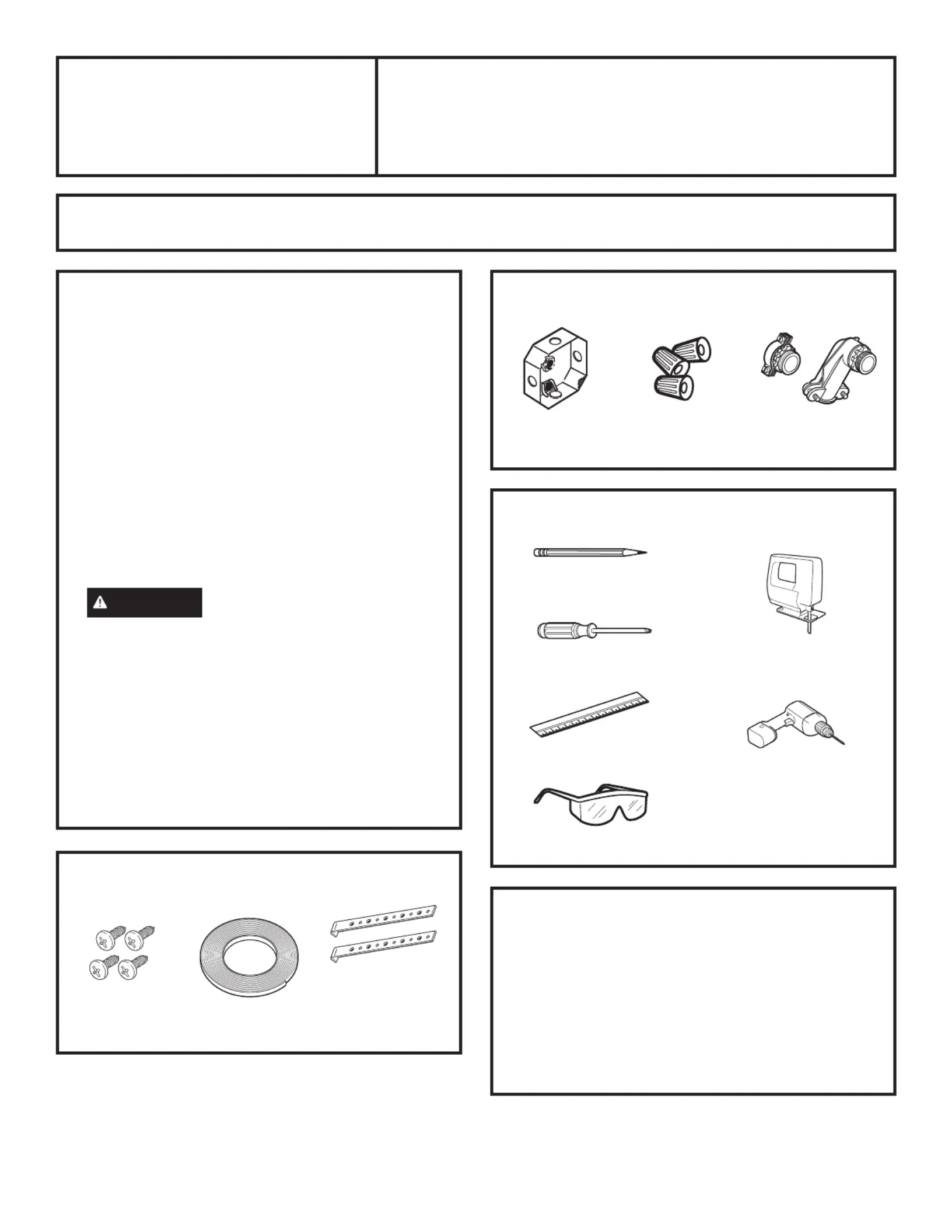

MATERIALS YOU WILL NEED
TOOLS NEEDED
CUTTING THE COUNTERTOP
If you are installing the cooktop in a solid surface
material such as granite, quartz or any other natural
or synthetic solid surface, we recommend that the
cutout be prepared by a professional cabinet or
countertop installer.
Cooktop cutouts in wood or wood-laminate
countertops may be able to be prepared using a
saber saw and electric drill.
PARTS INCLUDED
31-11072-4 01-19 GEA
Wire NutsJunction Box
Saber Saw
Pencil
Safety Glasses
1/8” Drill Bit & Electric or
Hand Drill
Ruler or Straightedge
Phillips Head
Screwdriver
2 Hold Down
Brackets
4 Screws
(WB01X1137)
Foam Tape
WB06K5042
90º or Straight
Squeeze Connector
for 1” Conduit
Questions? Call us at 1.800.432.2737 or visit GEAppliances.com.
In Canada, call 1.800.561.3344 or visit GEAppliances.ca.
231-11072-4
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR SAFETY
• For Personal Safety, remove house fuse or open
circuit breaker before beginning installation. Failure
to do so could result in serious injury or death.
• Be sure your cooktop is installed properly by a
qualified installer or service technician.
• To eliminate the risk of burns or fire due to reaching
over heated surface elements, cabinet storage
located above the surface units should be avoided.
If cabinet storage space is to be provided, the risk
can be reduced by installing a range hood that
projects horizontally a minimum of 5" beyond the
bottom of the cabinets. Cabinet installation above
the cooktop may be no deeper than 13".
• Make sure the cabinets and wall coverings around
the cooktop can withstand the temperatures (up to
200°F) generated by the cooktop.
• The cooktop should be easy to reach and lighted
with natural light during the day.
• Always disconnect the electrical service to the
cooktop before repairing or servicing the cooktop.
This can be done by disconnecting the fuse or
circuit breaker. Failure to do this could result in a
dangerous or fatal shock. Know where your main
disconnect switch is located. If you do not know,
have your electrician show you.
ELECTRICAL REQUIREMENTS
This appliance must be supplied with the proper
voltage and frequency, and connected to an individual,
properly grounded branch circuit, protected by a circuit
breaker or a time delay fuse as noted on name plate
and the chart below.
We recommend you have the electrical wiring and
hookup of your cooktop connected by a qualified
electrician. After installation, have the electrician show
you where your main cooktop disconnect is located.
Wiring must conform to National Electrical Code. You
can get a copy of the National Electrical Code, ANSI/
NFPA No. 70-Latest Edition, by writing to:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
The cooktop conduit wiring is approved for copper
wire connection only, and if you have aluminum house
wiring, you must use special UL approved connectors
for joining copper to aluminum.
You must use a two-wire, three conductor 208/240
VAC, 60 Hertz electrical system. A white (neutral)
wire is not needed for this unit. The cooktop must be
installed in a circuit that does not exceed 125 VAC
nominal to ground.
Refer to the name plate on your cooktop for the KW
rating for your cooktop.
Use the chart below to determine the minimum
recommended dedicated circuit protection:
Name plate location
KW Rating 240v KW Rating 208V
Recommended
Circuit Size
(Dedicated)
.: .: 20 Amp
4.9 KW - 7.2 KW 4.2 KW - 6.2 KW 30 Amp
7.3 KW - 9.6 KW 6.3 KW - 8.3 KW 40 Amp
9.7 KW - 12.0 KW 8.4 KW - 10.4 KW 50 Amp
31-11072-4 3
Installation Instructions
PRE-INSTALLATION CHECKLIST
WARNING The electrical power to the
cooktop supply line must be shut off while
connections are being made. Failure to do so
could result in serious injury or death.
A When preparing cooktop opening, make sure
the inside of the cabinet and the cooktop do
not interfere with each other. (See section on
preparing the opening.)
B Remove packaging materials and literature
package from the cooktop before beginning
installation.
C Be sure to place all literature, Owner’s Manual,
Installations, etc. in a safe place for future
reference.
D Make sure you have all the tools and materials
you need before starting the installation of the
cooktop.
E Your home must provide the adequate electrical
service needed to safely and properly use
your cooktop. (Refer to section on electrical
requirements.)
F When installing your cooktop in your home, make
sure all local codes and ordinances are followed
exactly as stated.
G Make sure the wall coverings, countertop and
cabinets around the cooktop can withstand heat
(up to 200°F) generated by the cooktop.
H Installing cooktop in combination
with other products.
Both products must be installed according to
their specific product installation instructions.
Consideration must be given the separate
electrical requirements and locations:
Over one or two wall ovens:
• Only certain models may be installed over wall
ovens. The wall oven and cooktop will both
have a label stating which models are approved
in combination.
Over a Microwave:
• See microwave installation instructions for how
to install a microwave under a cooktop. For
vertical dimension of cooktop, see Approximate
Cooktop Dimensions section.
In combination with telescopic downdraft vent:
• See telescopic downdraft vent instructions for
how to install a vent behind a cooktop.
• The countertop must have a deep flat surface
to accommodate the combined installation of
the cooktop and vent.
Over a warming drawer:
• See warming drawer instructions for how to
install a warming drawer under a cooktop. For
vertical dimension of cooktop, see Approximate
Cooktop Dimensions section.

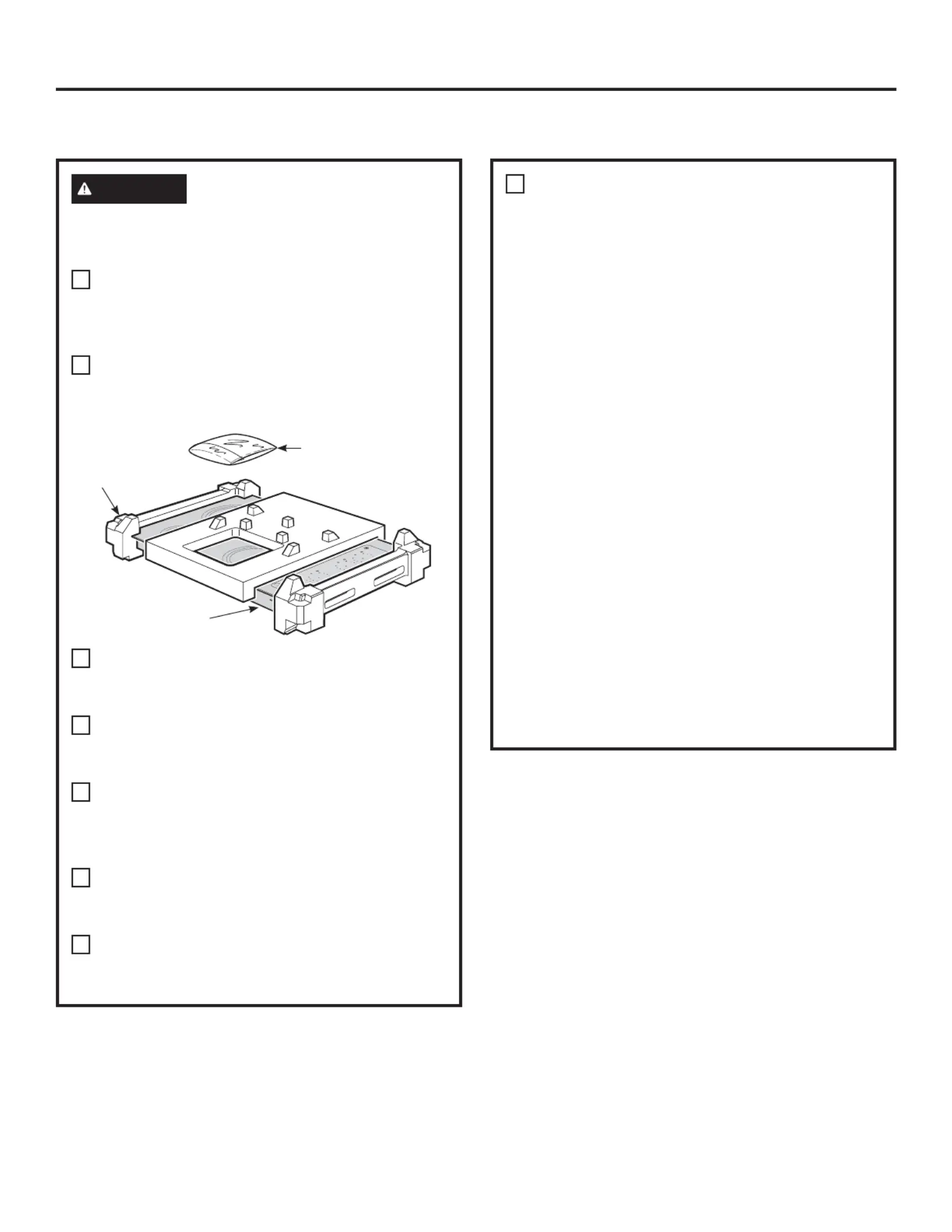

Cooktop
Foam
Packaging
Literature Package
(Located under unit)
