DSW.2
User Guide
DSW.2
DSW.2
DSW.2
DSW.2DSW.2
User Guide
2 EN
Important safety instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit
from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
This apparatus has been designed with Class 1 construction and
must be connected to a mains socket outlet with a protective earthing
connection (the third grounding pin).
This apparatus does not include a power switch. The apparatus may be
isolated from mains power either by unplugging the power connector from
the rear of the unit, or by unplugging the connector at the opposing end
of the power cord or cable from its supply outlet. As a result, either or
both of these connectors should remain accessible
•
•
•
•
•
•
•
•
•
•
•
•
•
Safety warnings
Do not expose the unit to dripping or splashing.
Do not place any object filled with liquid, such as a vase, on the unit.
Do not place naked flame sources, such as lighted candles, on
the unit.
To avoid overheating leave at least 10cm around the equipment to
ensure sufficient ventilation.
Do not position the unit in direct sunlight, near heat sources such as
a radiator, or directly on top of heat producing equipment, such as a
power amplifier.
To avoid interference do not position the unit near strong electrical or
magnetic radiation, such as near a power amplifier.
Radio interference
FCC Warning: This equipment generates and can radiate radio
frequency energy and if not installed and used correctly in accordance
with our instructions may cause interference to radio communications
or radio and television reception. It has been type-tested and complies
with the limits set out in Subpart J, Part 15 of FCC rules for a Class
B computing device. These limits are intended to provide reasonable
protection against such interference in home installations.
EEC: This product has been designed and type-tested to comply
with the limits set out in EN55013 and EN55020.
Copyright
Meridian Audio Ltd
Latham Road
Huntingdon
Cambridgeshire
PE29 6YE
England
Copyright © 2011 Meridian Audio Ltd.
V Web: isit us on the
http://www.meridian-audio.com
Part no: P88477/2
This guide was produced by: Human-Computer Interface Ltd,
http://www.interface.co.uk/
•
•
•
•
•
•
DSW.2
DSW.2
DSW.2
DSW.2 DSW.2 User Guide 3
EN
Unpacking
The DSW
DSW
DSW
DSWDSW.2 is supplied with the following accessories:
Power cord.
Three rubber inserts.
This manual.
•
•
•
If any of these items are missing please contact your dealer.
NOTE: You should retain the packaging in case you need to
transport the unit.
Connections

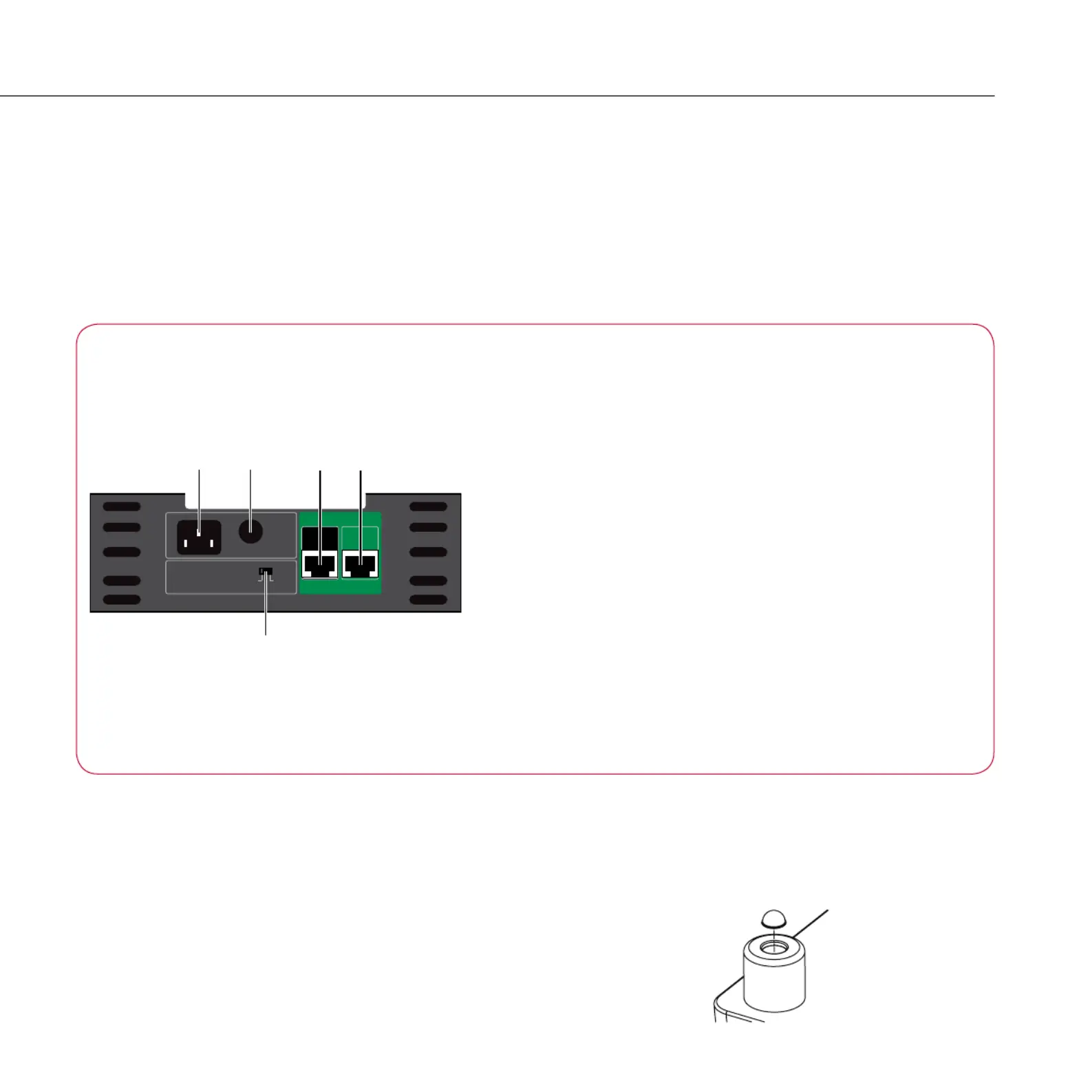

The following diagram gives details of the connections on
the back of the subwoofer:
Digital Channel
Selector
Power Inlet
2
1+2
1
InputOu put
SpeakerLink
Channel
selector
SpeakerLink
output
Power Fuse
Digital connections
Use this connection To connect to this
SpeakerLink input
SpeakerLink output
The SpeakerLink output of a Meridian
Digital Surround Controller or Audio
Core 200, or the SpeakerLink output of
another DSP loudspeaker.
The SpeakerLink input of a second
DSW digital when .2 subwoofer, daisy-
chaining the speakers.
Miscellaneous
Switch Description
Digital Channel Selector Set to 2 to use as an LFE/mono sub-
woofer with a Digital Surround Controller.
Set to 1+2 to use with an Audio Core
200. Set the left subwoofer to 1 and
the right subwoofer to 2 to use two sub-
woofers with a Digital Surround Controller.
Standby indicator
The status of the DSW is shown by a green standby .2
indicator on panel.the back
Status Description
Dimly illuminated Speaker in standby
Brightly illuminated Speaker operating
The subwoofer is switched on or into standby as appropriate
via the SpeakerLink connection by the Meridian system it is
connected to.
Fitting the rubber inserts
As supplied, the feet are suitable for soft, carpeted surfaces.
To use the DSW on a hard surface insert one of the .2
supplied self-adhesive rubber inserts into the recess on each
foot:
input
