Maxim Lotus 26315ICBRB Manual
Read below 📖 the manual in Italian for Maxim Lotus 26315ICBRB (2 pages) in the Lamp category. This guide has been helpful for 5 people and has been rated 4.5 stars on average by 2 users
Page 1/2
Page 1 of (2)

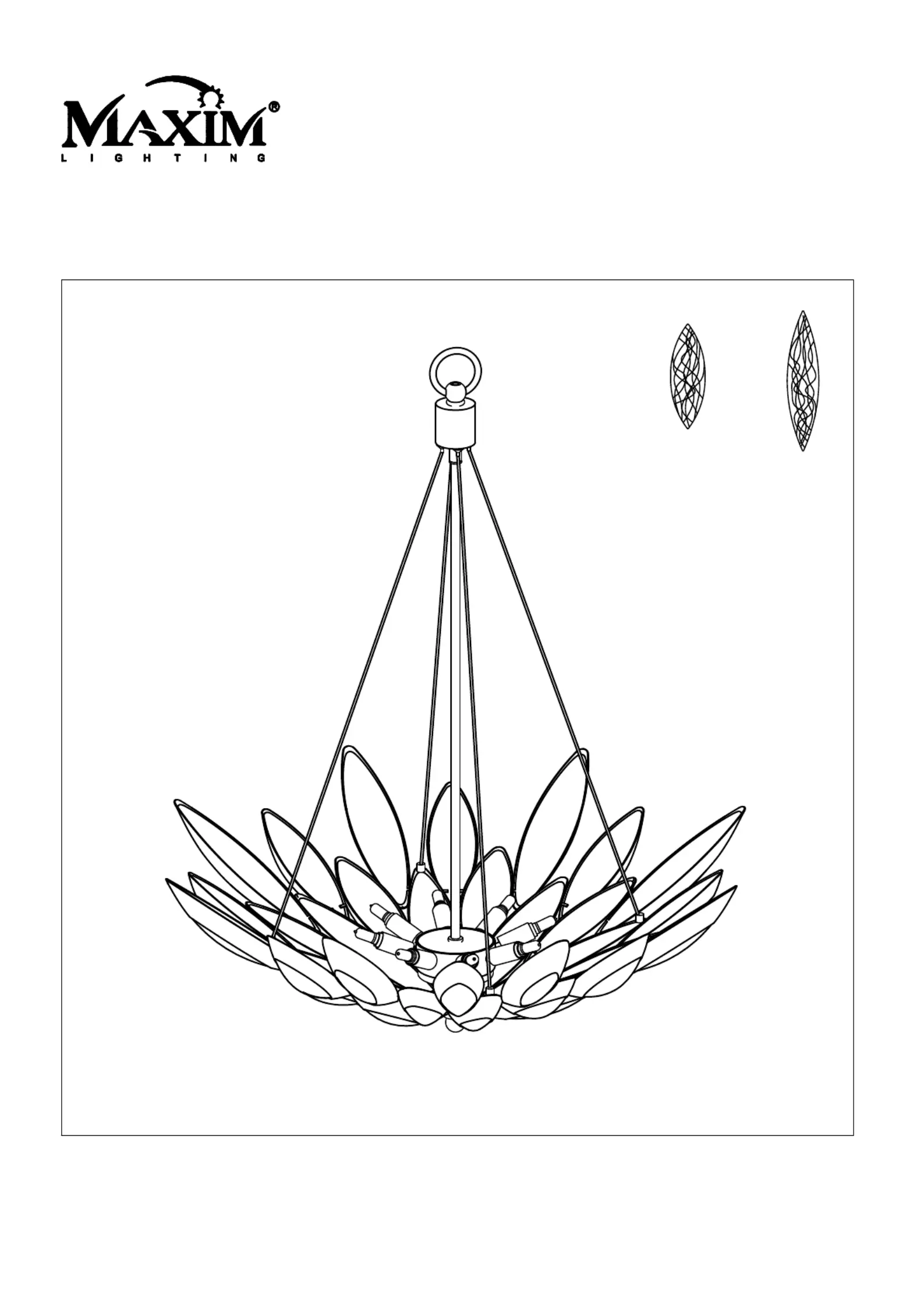

PRODUCT NAME: LOTUS
ITEM NUMBER: 26315ICBRB
Please consult your electrician for hanging fixture and wiring.
G9 8X40W (Bulb included)
MADE IN CHINA
16pcs
16pcs
GLS26310IC-A GLS26310IC-B
IMPORTANT: Turn off the power at the main fuse or circuit breaker box before starting installation.
Locate all hardware & components before discarding packaging
Cleaning & Care:
Clean with soft cloth and a mild detergent.
Do not use abrasive cleaner.
Mounting Strap (A) Body (B) Canopy (C) Chain (D) rod (E)
Page 2 of (2)
Bulb (G)
A
C
D
E
B
G
F
(A)
1).
Step.1: Remove mounting bracket (A) from
fixture and install to electrical box.
4).
Wire fixture to wires in outlet box.
Green wire is fo Ground.
5).
Raise Canopy (C) to ceiling and
secure with screw collar ring.
3).
Install fixture loop. Connect chain (D)
to fixture loop and screw collar loop
with key link.Thread fixture wire
through the chain (D) into outlet box.
(L)positire
ground wire (green wire)
(N)neutral
(C)
(C)
screw collar ring
(D)
(C)
Fixture loop
(B)
2).
Press the wire restraint to adjust the
desired length of cable. Secure the
cables.
(F)
Step.2:
Step.3:
Step.4:
Step.5:
Product Specifications
| Brand: | Maxim |
| Category: | Lamp |
| Model: | Lotus 26315ICBRB |
