Page 1/30

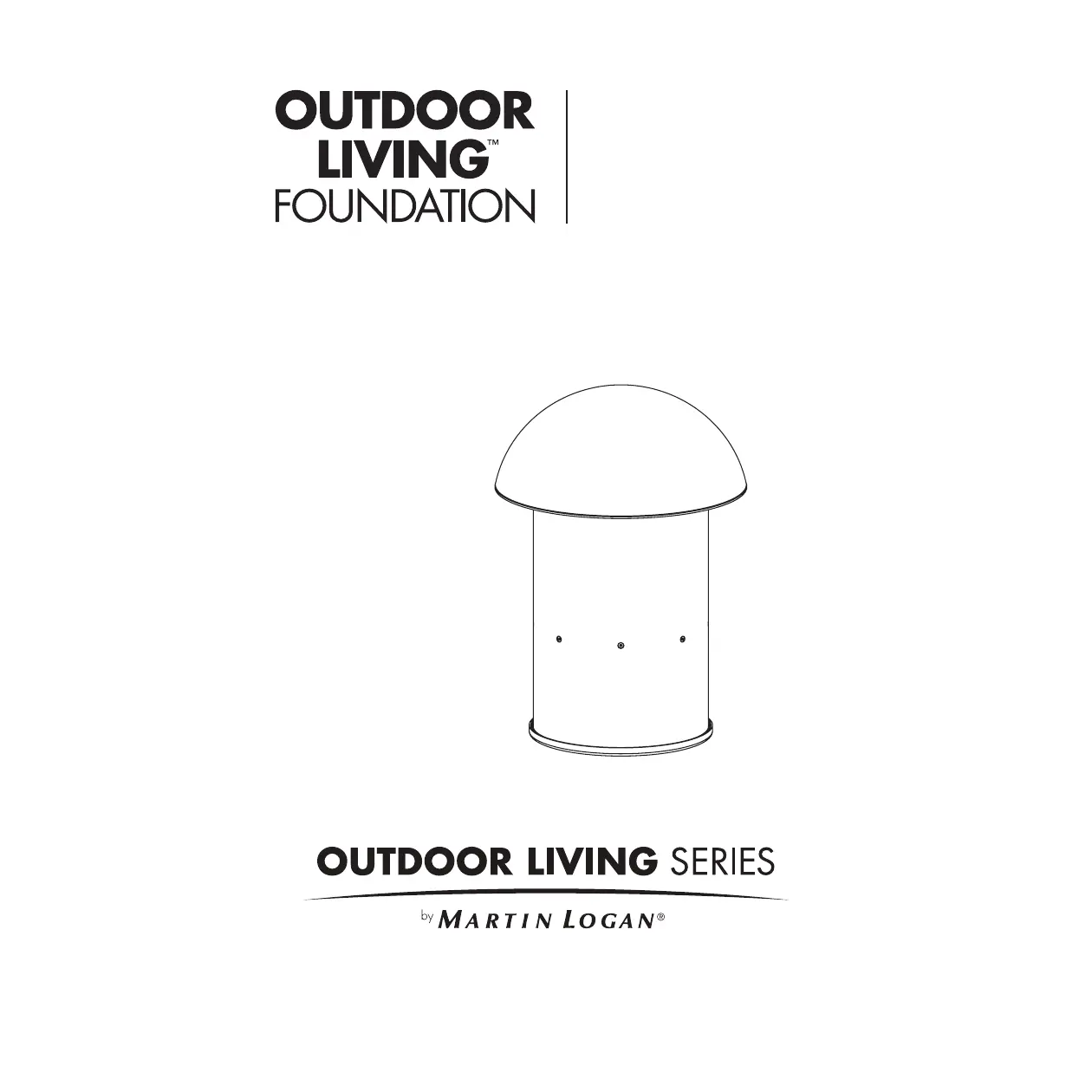

Register your warranty online at www.MartinLogan.com.
u s e r ’ s m a n u a l
• 1 in-ground
subwoofer
with canopy
• Works with any
8 ohm stereo
amplifier
SUB 8
2
EN |
TABLE OF CONTENTS
Overview 3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outdoor Livingâ„¢ Foundation Music System 3 . . . . . . . . .
Included Components 3 . . . . . . . . . . . . . . . . . . . . . .
Additional Required Components 3(Sold Separately) . . .
Required Tools 3 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Planning the System Layout 4. . . . . . . . . . . . . .
Cable Recommendations 5 . . . . . . . . . . . . . . . .
Installation Considerations 5. . . . . . . . . . . . . . .
Wiring & Speaker Installation 6 . . . . . . . . . . . .
Stereo Setup Using 4 Conductor Burial Cable
& Amplifier 6 (Option 1) . . . . . . . . . . . . . . . . . . . . . .
Stereo Setup Using 4 Conductor Burial Cable
& Amplifier 7(Option 2) . . . . . . . . . . . . . . . . . . . . . .
Mono Setup Using 2 Conductor Burial Cable
& Amplifier 8(Option 3) . . . . . . . . . . . . . . . . . . . . . .
Stereo Setup Using 4 Conductor Burial Cable
& Amplifier 9(Option 4) . . . . . . . . . . . . . . . . . . . . . .
Preparing the 4 Conductor Burial Cable
(For Stereo Setup) . . . . . . . . . . . . . . . . . . . . . . . . 10
Preparing the 2 Conductor Burial Cable
(For Mono Setup) . . . . . . . . . . . . . . . . . . . . . . . . 11
Cable Connections from Speaker to RED (+) and
BLACK (–) Burial Cable 12 . . . . . . . . . . . . . . . . . . . .
Cable Connections from Speaker to (+) and WHITE
GREEN (–) Burial Cable . . . . . . . . . . . . . . . . . . . . . .12
Cable Connections from Subwoofer to Burial Cable. . . .13
Test System 14 . . . . . . . . . . . . . . . . . . . . . . . . .
To Avoid Speaker Damage 14. . . . . . . . . . . . . .
Listening Outdoors 14. . . . . . . . . . . . . . . . . . . .
Limited Warranty 15. . . . . . . . . . . . . . . . . . . . .
Serial Number | Numéro de série
3| EN
OVERVIEW
WARNING!
• ACCOUNT FOR POTENTIAL ELECTRICAL,
GAS, BURIED CABLES, PLUMBING OR
OTHER OBSTACLES BEFORE DIGGING.
• MANY LOCALITIES FORBID DIGGING
WITHOUT PRIOR NOTIFICATION.
CONTACT LOCAL AUTHORITIES BEFORE
INSTALLATION.
• READ AND FOLLOW ALL INSTRUCTIONS
BEFORE BEGINNING.
Satellite speakers are sold separately as part of the MartinLogan Outdoor
Livingâ„¢ Foundation Music System.
MartinLogan Outdoor Livingâ„¢ Foundation
Music System
While it can be used in a variety of outdoor installations, the
MartinLogan Outdoor Livingâ„¢ Foundation Sub 8 is designed
to be used with the MartinLogan Outdoor Livingâ„¢ Foundation
Music System which includes 8 premium all-season outdoor
speakers and 1 all-season in-ground subwoofer ideal for
backyards ranging from 2,000 to 3,000 sq. ft.
Adding another subwoofer to this system provides an increase
in bass output that can be useful in extending the bass
coverage in the yard or simply for those that enjoy more bass.
While installation is relatively easy, MartinLogan’s Outdoor
Livingâ„¢ Foundation Sub 8 and Outdoor Livingâ„¢ Foundation
Music System is designed to be installed by your authorized
MartinLogan dealer.
Included Components:
• (1) In-Ground Subwoofer with Canopy
• (4) Silicone-Filled Wire Connectors
Additional Required Components
(Sold Separately):
• Burial Speaker Cable
• Wire Ties (Optional)
Required Tools:
• Shovel
• Cable Strippers
Power
Any 8 ohm stereo amplifier (for Stereo Setup) or
Any 4 ohm mono amplifier (for Mono Setup)
