Page 1/3

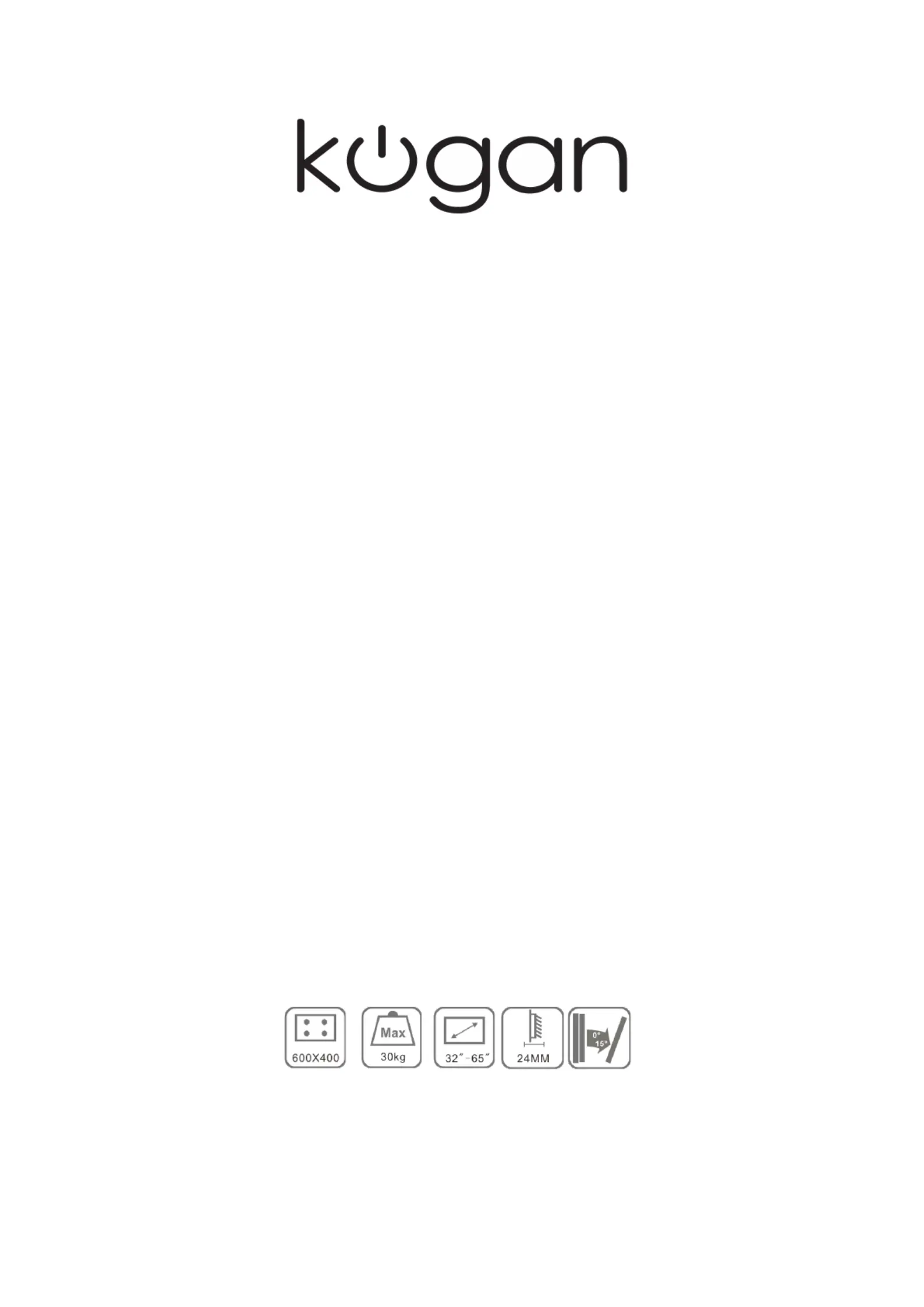

Slim Tilt Adjustable Wall Mount for 32” ~ 65” TVs
KAWLM65TSMA
Quick Start Guide
Caution
This product contains small items that could be a choking hazard if swallowed.
Keep these items away from young children.
•Make sure these instructions are read and completely understood before
attempting installation. If you are unsure of any part of the installation,
please contact a professional installer for assistance.
•The wall or mounting surface must be capable of supporting the combined
weight of the mount and the display, otherwise the structure must be
reinforced.
•Safety gear and proper tools must be used. A minimum of two people are
required for this installation. Failure to use safety gear may result in
property damage, injury or death.
•Please ensure children do not play with the mount or the mounted
television at any time.
•Please check the mount every two months to ensure that bolts and screws
are tight, and that the wall behind the mount appears to be in good
condition.
This product was designed to be installed on solid concrete walls.
Before installing, make sure the wall will support the combined load of the
equipment and hardware.
Never exceed the maximum load capacity of 30kg, or it may result in product
failure or personal injury.
Note: this product is intended for indoor use only. Use of this product outdoors
could lead to product failure or personal injury.
Item Checklist
What's in the box
M4 x 10mm
A (4 pcs)
M5 x 12mm
B (4 pcs)
M5 x 16mm
C (4 pcs)
M6 x 12mm
D (4 pcs)
M6 x 16mm
E (4 pcs)
M6 x 20mm
F (4 pcs)
M5 Washer
G (8 pcs) B1 (4pcs) B2 (4 pcs) B3 (4 pcs)
Magnetic removable
bubble level
Tools required
Mounting
Step 1-A (Solid concrete mounting)
Step 1-B Wood stud mounting
Step 2 Attaching brackets to Screen Step 3 Hanging the TV on wall plate
•If using A, B, C please use G.
•If using D, E, F please don't use G.
If you require any additional information regarding the mount or require
assistance in regards to a warranty claim, please contact the Kogan customer
support team.
Product Specifications
| Brand: | Kogan |
| Category: | Flat panel support |
| Model: | KAWLM65TSMA |
