2
PXA.2-SERIES AMPLIFIERS
OWNER’S MANUAL
INSTALLATION
Mounting: Choose a structurally sound location to mount your KICKER amplifi er. Make sure there are no items
behind the area where the screws will be driven. Choose a location that allows at least 4” (10cm) of open
ventilation for the amplifi er. Drill four holes using a 7/64” (3mm) bit and use the supplied #8 screws to mount the
amplifi er.
Wiring: Disconnect the vehicle’s battery to avoid an electrical short. Then, connect the PXA harness to the
amplifi er. A good ground connections is important. If this amplifi er is mounted in the front fairing of a motorcycle, it
will be best to extend the ground wire all the way to the battery.
The PXA amplifi ers have the capability to receive almost any level of input signal. If a Hi-Level signal is coming
from the speaker leads of the source unit, simply cut off the RCA jacks and connect it directly to the exposed
wires. Set the Input Level switch to Hi. Set the Auto Turn-On to DC. If speaker leads are not available from your
source unit, use an RCA stereo cable to connect directly to the RCA connectors of the PXA amplifi er. Set the
Input Level switch to Lo. Set the Auto Turn-On switch to +12V, and use the blue remote trigger wire to turn the
amplifi er on.
PERFORMANCE
Authorized KICKER Dealer:
Purchase Date:
Serial Number:
Model: PXA200.2
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N
@ 14.4V, 2Ω stereo, ≤ 1% THD+N
@ 14.4V, 1Ω stereo, ≤ 1% THD+N
25 x 2
50 x 2
100 x 2
Length [in, cm] 7, 17.8
Height [in, cm] 1-5/8, 4
Width [in, cm] 3-7/16, 8.7
Frequency Response [Hz] 10 - 20k
Signal-to-Noise Ratio [dB] 95
Input Sensitivity Low Level: 125mV–5V
High Level: 250mV–10V
Electronic Crossover Selectable HI or OFF; 60Hz, 80Hz or 120Hz; 12dB/octave slope
Pro Tip: To get the best performance from your new KICKER Amplifi er and extend the warranty by 1 year, use
genuine KICKER accessories and wiring.
MODEL: PXA200.2
IMPORTANT SAFETY WARNING – PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER IN A
DISTORTED OR CLIPPED MANNER CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING
FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS AND/OR VEHICLE.
2015 PX Stereo Amplifier Rev D.indd 2
2015 PX Stereo Amplifier Rev D.indd 2
2015 PX Stereo Amplifier Rev D.indd 2
2015 PX Stereo Amplifier Rev D.indd 2
2015 PX Stereo Amplifier Rev D.indd 2 10/23/2015 2:48:57 PM
10/23/2015 2:48:57 PM
10/23/2015 2:48:57 PM
10/23/2015 2:48:57 PM
10/23/2015 2:48:57 PM
3

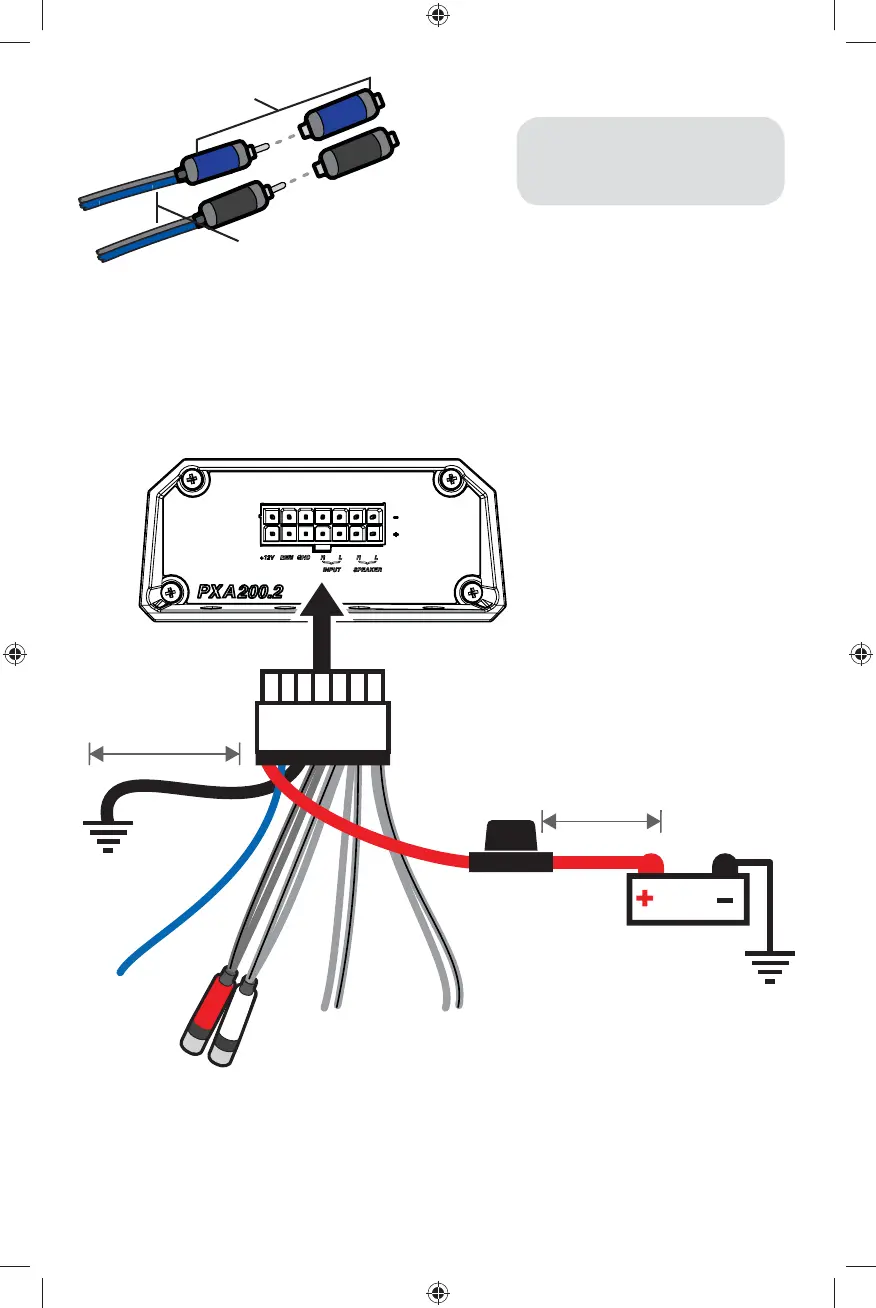

12V
Model External Fuse
PXA200.2 1 x 15 Ampere
battery
external fuse
(15A)
remote
turn-on
speaker outputs
+ +- -
RCA inputs
(remove to use
hi-level input)
bare-metal chassis
ground
bare-metal chassis ground
≤18”
(45cm)
≤24”
(60cm)
Cut the looped red power cable located on the PXA harness and install a 15A fuse. Fuse installation should be
within 18” (45cm) of the battery and in-line with the harness’ power cable, which is connected to your amplifi er. If
you ever need to remove the amplifi er from the vehicle after it has been installed, the ground wire should be the
last wire disconnected from the amplifi er--just the opposite as when you installed it.
KICKER KISL (optional)
from source unit high-level speaker outputs
to amplifi er
2015 PX Stereo Amplifier Rev D.indd 3
2015 PX Stereo Amplifier Rev D.indd 3
2015 PX Stereo Amplifier Rev D.indd 3
2015 PX Stereo Amplifier Rev D.indd 3
2015 PX Stereo Amplifier Rev D.indd 3 10/23/2015 2:48:57 PM
10/23/2015 2:48:57 PM
10/23/2015 2:48:57 PM
10/23/2015 2:48:57 PM
10/23/2015 2:48:57 PM
