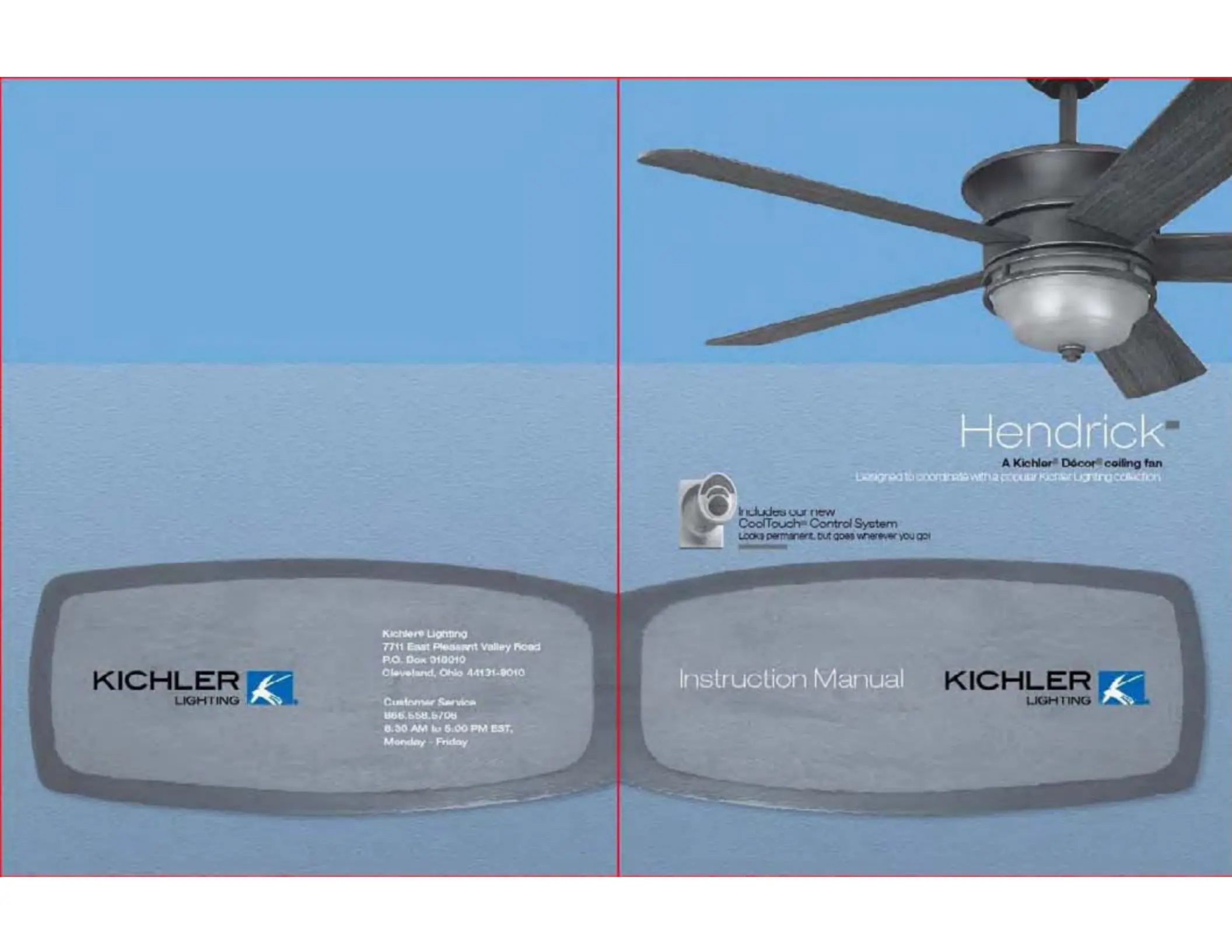

Page 1/14
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualied licensed
electrician.
3. Suitable for use with solid-WARNING:
state speed controls.
4. To reduce the risk of personal WARNING:
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting xtures are not acceptable for fan
support and may need to be replaced,
consult a qualied electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the oor.
7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
the grounded conductor and the
equipment-grounding conductor on one
side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN TO
OUTLET BOX MARKED "ACCEPTABLE FOR FAN
SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.
3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (5)
b. Hanger bracket and canopy
c. Ball/downrod assembly (1)
& extra downrod (1)
d. Coupling cover
e. Fan motor assembly
f. Blade support plates (5)
g. Mounting plate
h. Light kit
i. Glass shade
j. Receiver+7 wire nuts
k. CoolTouchTM Control System
l. Part bag contents
1) Mounting hardware :
wood screws (2), at washers (2),
star washers (2), wire nuts (3)
2) Blade attachment hardware:
screws (17), washers (17),
ber washers (17)
3) Safety cable hardware:
wood screw, lock washer, at washer
4) Balance Kit
Wire cutters
a
b
c
d
e
f
g
h
i
j
k
l
