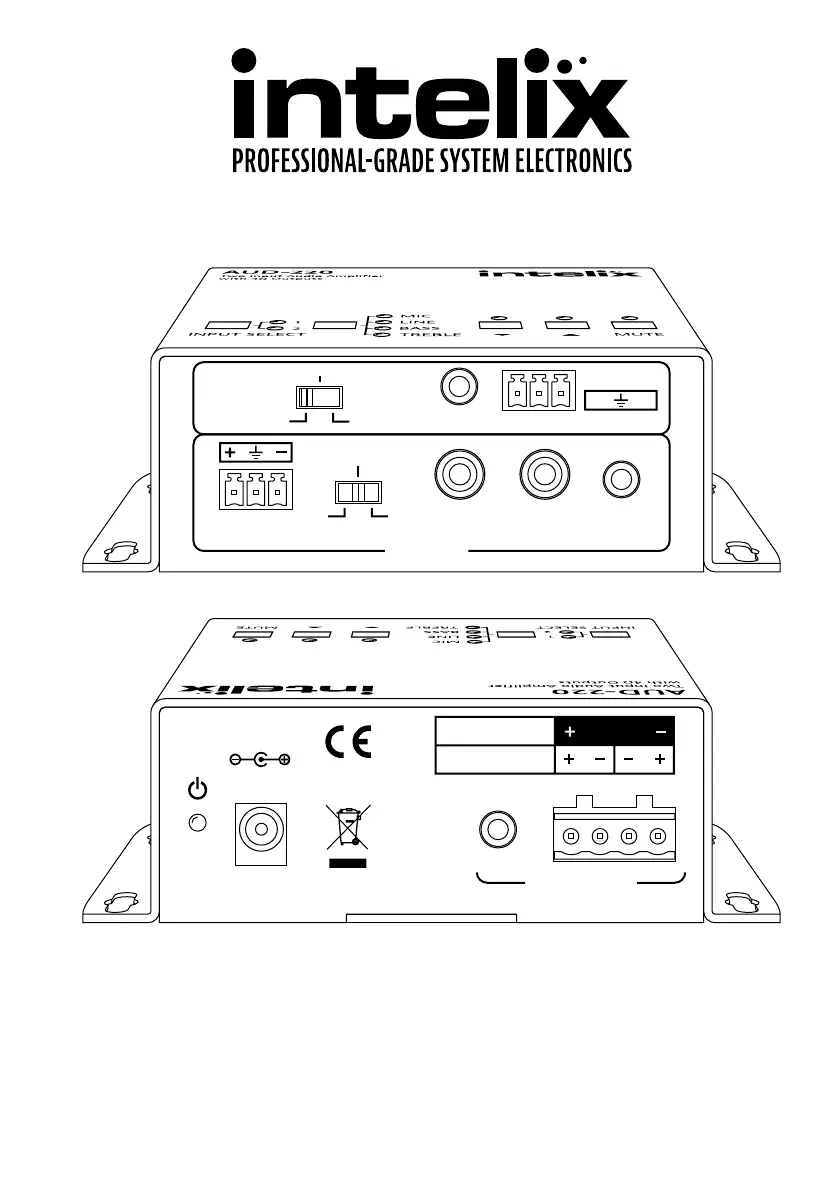

AUD-220 Installation Guide
The Intelix AUD-220 is a 2x20 watt Class D amplifier with 8 speaker output. Ω
The amplifier features two analog audio inputs and a balanced microphone
input with ducking functions. Additional features of the AUD-220 include input
and microphone volume control, bass and treble adjustments, microphone
mixing with source audio, and three modes of microphone input support (48
dB gain, 48 dB gain with 48V phantom power, and line level). The AUD-220
has three methods of control: push button, RS232, and IR with the optional
AUD-220-IR accessory kit.
L
IR
TX RX
RS232
LINE48V
MIC
MONO
R
1MIC 2
INPUTS
BRIDGESTEREO
2 x 20W @ 4Ω
1 x 40W @ 8Ω
LOOP
24V DC
OUTPUTS
2
Safety Precautions
FCC Statement
To insure the best from the product, please read all instructions carefully before
using the device. Save this manual for further reference.
• Unpack the equipment carefully and save the original box and packing material
for possible future shipment
• Follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
• Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
• Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
• Refer all servicing to qualified service personnel.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or
install this product near water.
• Do not put any heavy items on the extension cable in case of extrusion.
• Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
• Install the device in a place with fine ventilation to avoid damage caused by
overheat.
• Keep the module away from liquids.
• Spillage into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the module
immediately.
• Do not twist or pull by force ends of the optical cable. It can cause malfunction.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power
to the device before cleaning.
• Unplug the power cord when left unused for a long period of time.
• Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical waste.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference,
Any changes or modifications not expressly approved by the manufacture would
void the user’s authority to operate the equipment.
3

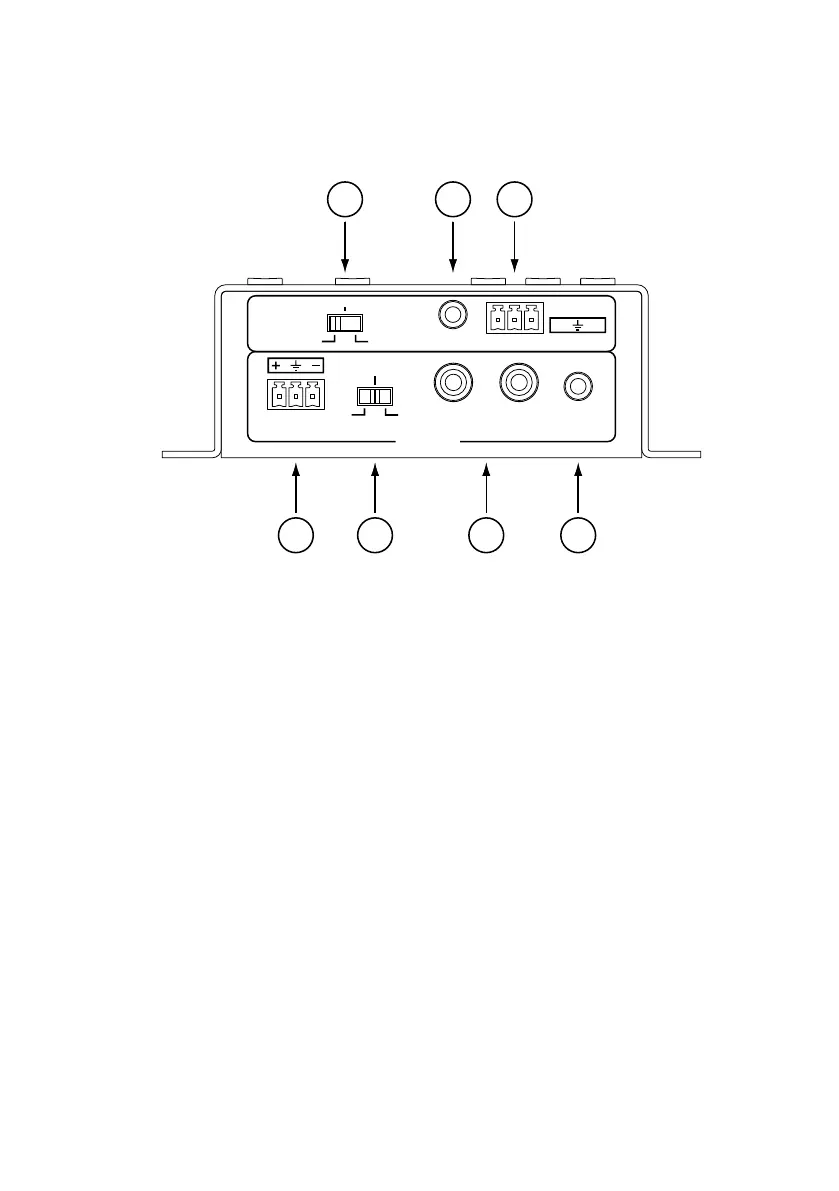

Input and Output Connections
Input Connections
L
IR
TX RX
RS232
LINE48V
MIC
MONO
R
1MIC 2
INPUTS
BRIDGESTEREO
1 2 3
4 5 6 7
1. Output Mode Selector
2. IR Input (requires optional AUD-220-IR)
3. RS232 Input
4. Microphone Input
5. Microphone Level Selector
6. Analog Input 1
7. Analog Input 2
