Indiana Line Tesi 242 Manual
Indiana Line
Speaker
Tesi 242
Read below 📖 the manual in Italian for Indiana Line Tesi 242 (7 pages) in the Speaker category. This guide has been helpful for 4 people and has been rated 4.5 stars on average by 2 users
Page 1/7
T E S I
I M P O R T A N T E
Leggete attentamente queste
istruzioni prima di installare i
diffusori: vi aiuteranno ad ot-
tenere le migliori prestazioni.
I M P O R T A N T
Please read carefully these
instructions before setting
up your loudspeakers: you
will be able to obtain the
best performances.
TESI 240
TESI 242
TESI 540
TESI 542
TESI 740
TESI 742
sistema /
system
2-way 3-way 2-way
tipo di carico /
enclosure type
bass-reflex bass-reflex bass-reflex
amplificatore /
suggested amplifier
watt 30
÷
80 30
÷
120 30
÷
100
impedenza /
amplifier load impedance
ohm 4
÷
8 4
÷
8 4
÷
8
risposta /
frequency response
hertz 58
÷
22000 38
÷
22000 55
÷
22000
sensibilità /
sensitivity
(2.83 V / 1 m) dB 90 91 92
woofer /
woofer
(dia) mm 120 120 2 x 120
midrange /
midrange
(dia) mm - 120 -
cupola tweeter /
tweeter dome
(dia)
mm 26 26 26
crossover /
crossover frequency
hertz 2700 180/2700 2600
bi-wiring / bi-amping
no yes no
schermatura /
shielded loudspeakers
no no yes
dimensioni /
dimensions
mm 135 230 195 135 825 240 350 135 240x x x x x x
peso /
weight
Kg 2.5 9.4 5.0
2
I diffusori acustici Indiana Line sono stati svi-
luppati per garantire le prestazioni necessarie
a soddisfare le esigenze di fedeltà, dinamica
e tenuta in potenza richieste anche dalle più
recenti tecniche di registrazione.
Questi diffusori, abbinati ad un impianto ste-
reo od un sistema Home Cinema, permettono
di ricreare nell’ambiente d’ascolto le coinvol-
genti emozioni di un concerto live o l’atmosfe-
ra della colonna sonora di un film.

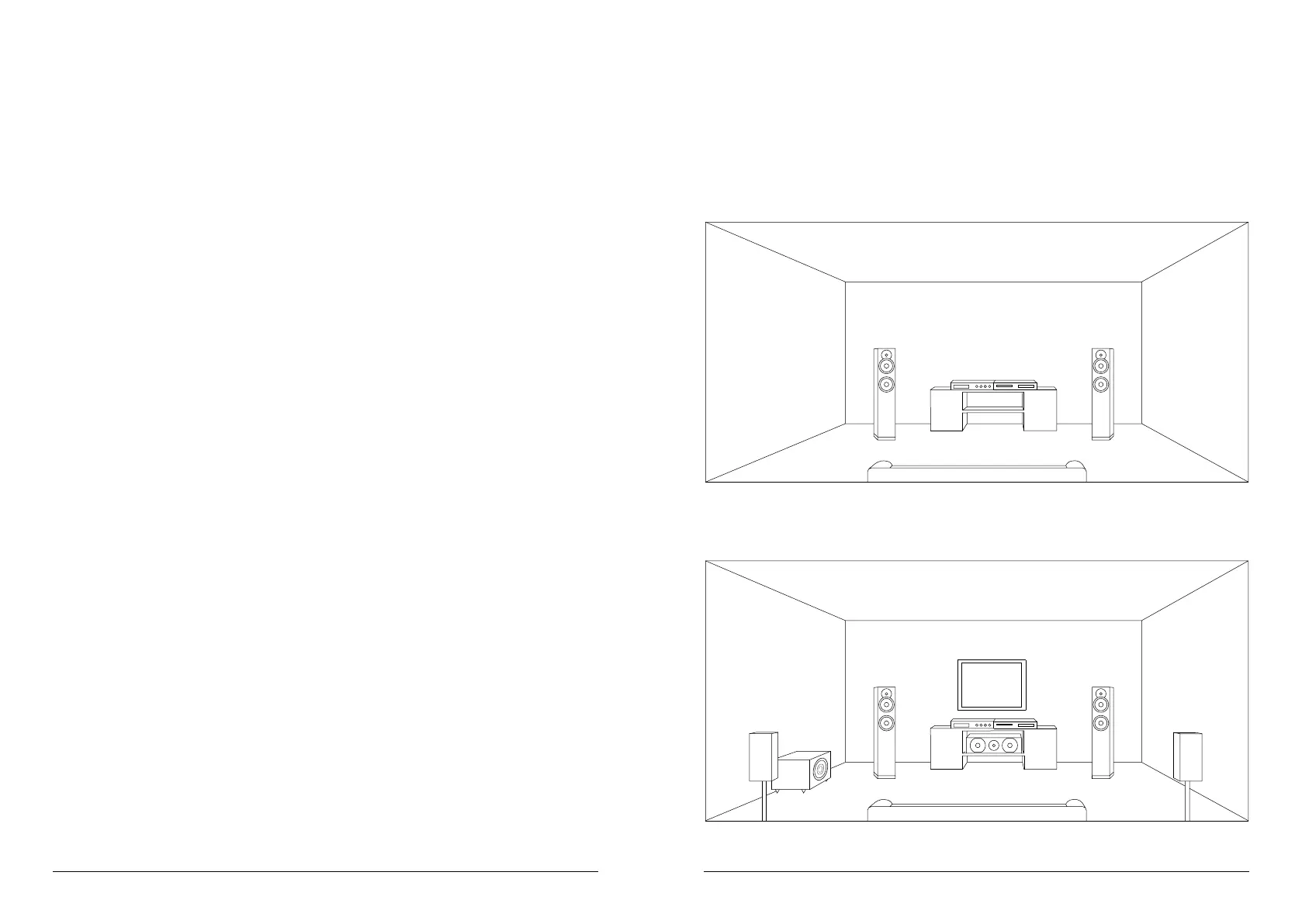

In un sistema stereo è bene che la distanza tra
i due diffusori non sia inferiore ad un paio di
metri. Il punto d’ascolto ideale è posto al cen-
tro dei due diffusori, ad una distanza pari a
quella tra le due casse.
The Indiana Line loudspeakers are been devel-
oped to warrant high performances as to meet
the musical quality precision, dynamic range
and power handling capability required by the
most advanced recording techniques.
These speakers, matched with a hi-fi stereo
or Home Cinema system, allow to recreate in
your listening room the enrapturing emotion
of a live concert or the atmosphere of a movie
sound track.
The right distance between the two speakers
have to be not closer than a couple of meters.
The ideal listening area is at the centre of the
speaker systems, at an equal distance from
the boxes.
4
Product Specifications
| Brand: | Indiana Line |
| Category: | Speaker |
| Model: | Tesi 242 |
