Imarflex IES-1000S Manual
Imarflex
Coffee maker
IES-1000S
Read below 📖 the manual in Italian for Imarflex IES-1000S (9 pages) in the Coffee maker category. This guide has been helpful for 2 people and has been rated 4.5 stars on average by 2 users
Page 1/9
SPECIFICATION
MODEL NO. : IES- 1000S
RATED VOLTAGE : 230Va.c ~ 60Hz
POWER CONSUMPTION : 850W
IMPORTANT SAFEGUARDS
Before using the electrical appliance, the following basic precautions should always be followed including the
following:
1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c)
3. Do not use any appliance with a damage cord or plug, if the cord is damaged it should be replaced
with same type and size or bring the unit to the nearest Imarex Authorized Service Center.
4. Do not place the coee maker on hot surface or beside re to avoid damage.
5. The use of accessory which is not recommended by manufacturer may cause injury to persons or
damage to appliance.
6. Place t pliance on at stable surface, do not hang its power cord over the edge of table or counter he ap
to avoid accident.
7. Ensure that the power cord does not touch hot surface of the unit.
8. Some parts of appliance are hot when operated; do not touch with hand directly.
9. Unplug the unit before cleaning and when not in use. Allow appliance to cool down completely before
taking O, attaching components or before cleaning.
10. not immerse the unit or power cord into water or any other liquid. Do
11. Children should be supervised to ensure that they do not play with the appliance.
12. This appliance is not intended for use by person (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the unit by a person responsible for their safety.
13. Do not use outdoors.
14. Save these instructions booklet for future reference.
15. FOR HOUSEHOLD USE ONLY.

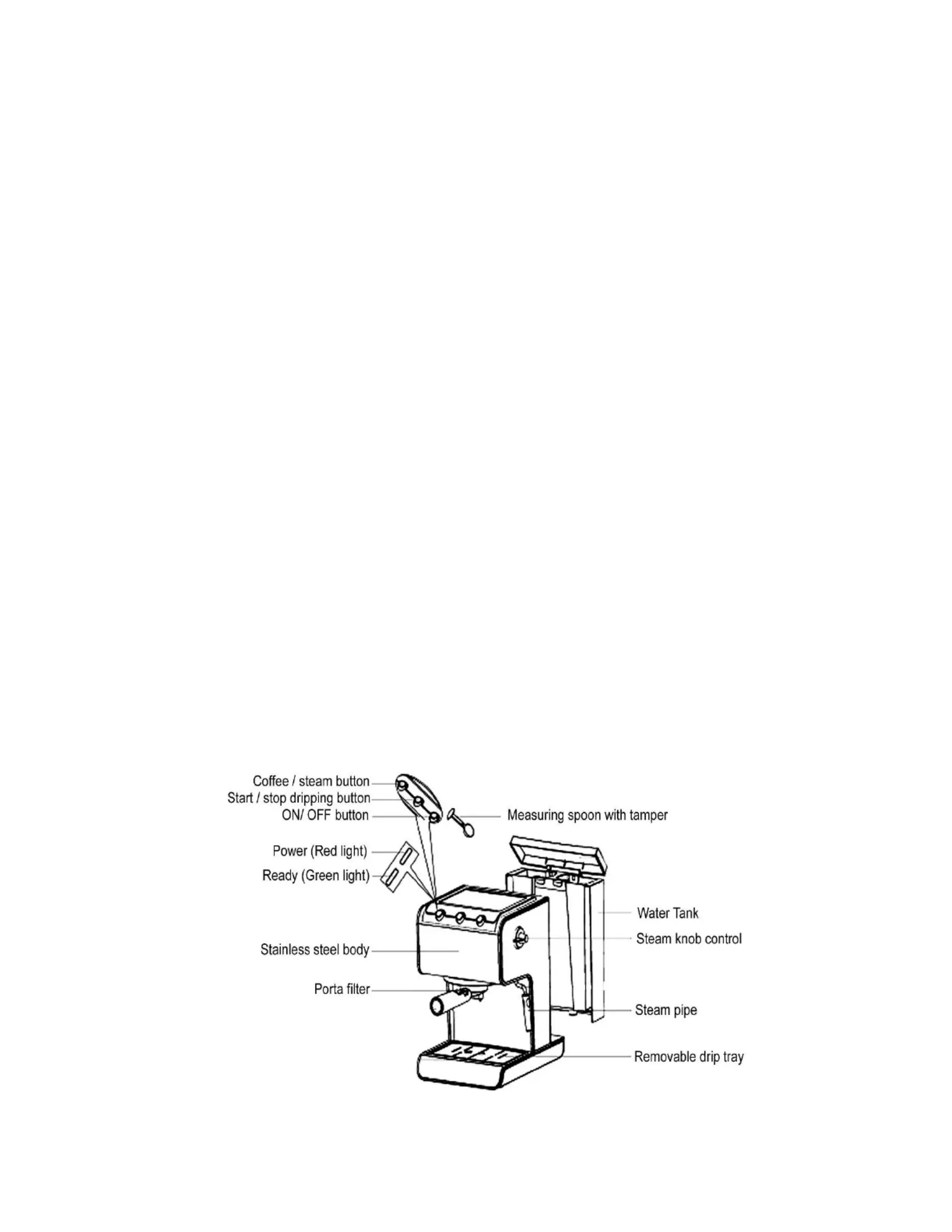

DESCRIPTION OF PARTS
PRODUCING STEAM TO HEAT LIQUIDS
The steam wand (without the frothing device) can be used to make hot beverages like drinking chocolate,
water or tea.
Method:
1. Open the top cover, remove t water tank and ll it with desired water, the water level should not he
exceed the “MAX” mark in the tank. Then place the tank into the unit properly.
2. Replace the top cover, press down the ON/OFF button to the lower position which is the “1” position,
the heat light indicator is illuminated.
3. Press down the star/stop button sition, make sure the to the lower position which is the “P” po
coee/steam button is on the higher position which is the position, when there is water owing
out, close the pump immediately, pressing down the coee/steam button to the lower position which
is the position and waiting for a moment, the unit begins to be heated until the green light indicator
is illuminated, it shows the heating is nish.
4. Remove the frothing device from the milk frothing steam pipe.
5. Dip the steam pipe into the liquid to be heated. Turn the steam control knob in anti-clockwise slowly
to start making steam.
6. When the required temperature is reached, you can turn the steam control knob to OFF position.
7. Press and release the ON/OFF button to the higher position which is the “0” position to cut the power
source o.
FOR INITIAL USE
Clean the unit before using. Follow these simple steps.
1. Wash Porta Filter With soap and water.
2. Remove the water into the unit,
3. Rinse thoroughly and put it back into the slot.
4. Fill the tank with water rst,
Product Specifications
| Brand: | Imarflex |
| Category: | Coffee maker |
| Model: | IES-1000S |
