Page 1/1
Ver.1.0
OUT PUT
R L
OFF
DIG ITAL INPUT

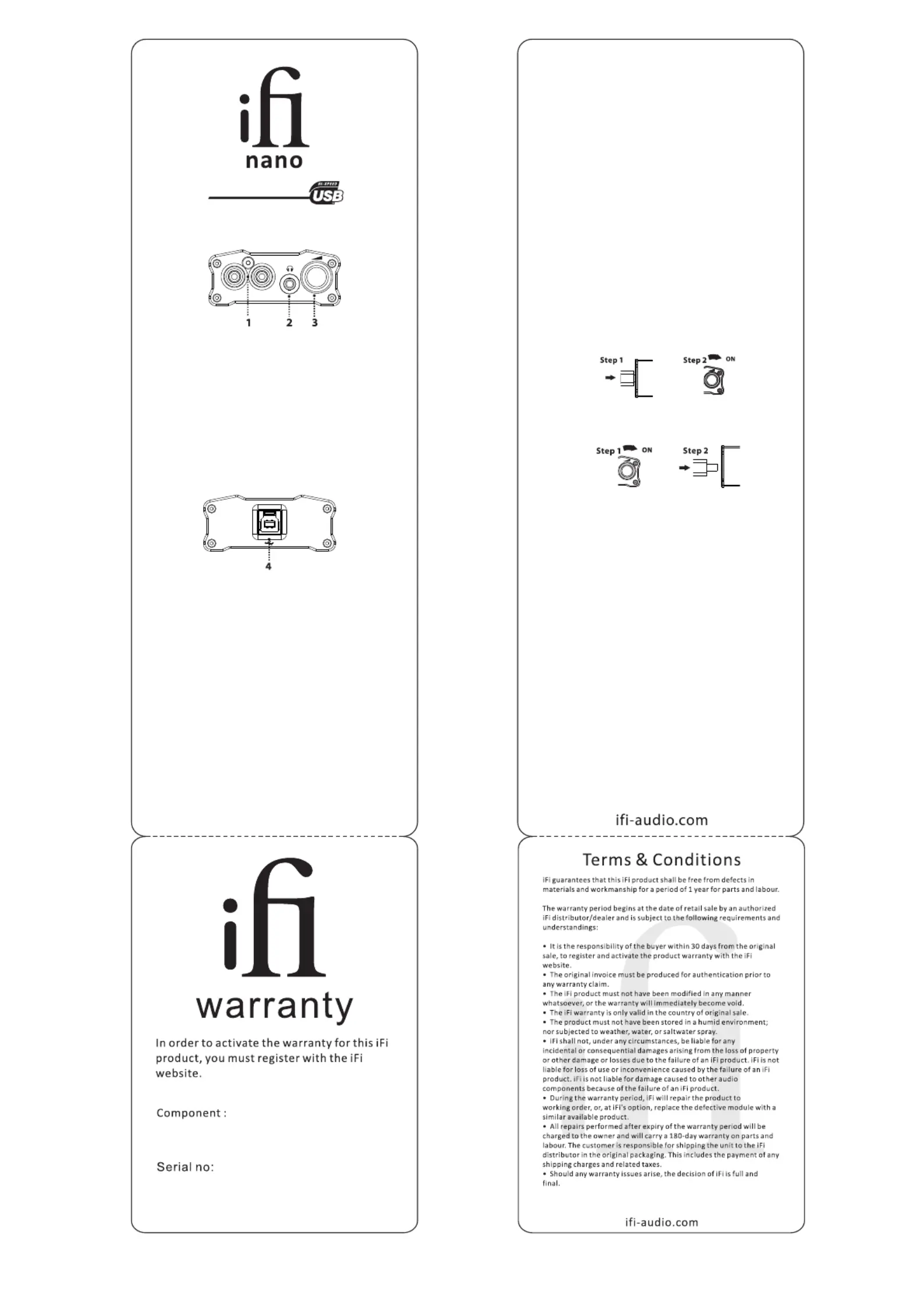

1.RCA Line Output
To amplifier, receiver, HiFi system or similar.
2.3.5mm Headphone jack
Connect headphones.
3.Volume Control ON/OFF
4.USB3.0 (2.0compatible) Input
From computer* or smartphone.
*Also provides charging for the internal battery.
MS Windows(XP or later), please download and install
the driver software before connecting the iDSD LE to
the computer (www.ifi-audio.com).
Tip: For the best sound quality, always set the volume
control on the computer and the playback software
to100%.
LED
Power ON:
LED Color
Green
Yellow
Cyan
White
Blue
Magenta
Green (Flashing)
Red
None
Power OFF:
LED Color Mode
Blue* Charging
When the iDSD LE is fully-charged, the Blue LED will no
longer be lit.
USB power
Connect to the computer first, then turn ON the power.
Mode
44/48kHz
88/96kHz
176/192kHz
DXD352/384khz
DSD2.8/3.1MHz
DSD5.6/6.2MHz
Awaiting USB Connection
Battery Low
Battery Empty
Battery Power
Turn ON the power first, then connect to the computer.
Tip: Under battery power, the nano iDSD LE will continue to
use battery power even if the USB cable is connected
afterwards.
Tip: For Apple iPhone/iPad/iPod Touch, Android devices,
please use Battery Power, otherwise you may receive error
messages from your device.
Tip: For connection to Apple devices, the Apple USB Camera
Adapter is required. For connection to Android devices, an
OTG cable and appropriate OS support are required. For
more information, please refer to www.ifi-audio.com.
Specifications
Formats supported:
PCM44.1 to 384kHz/16-32bit
DSD 2.8, 3.1, 5.6 and 6.2MHz/1bit
DXD352.8, 384kHz/24bit
High-Speed Asynchronous USB 2.0 (32bit/384kHz)
Battery: Lithium-polymer 1000mAh
Power (max): 1.5W
Dimensions: 106 (l) x67 (w) x28 (h) mm
Weight: 167g (0.37lbs)
Warranty period: 12 months
Specifications are subject to change without notice.
iDSD
E
E
E
EE
L
L
L
LL
OFF
OFF
