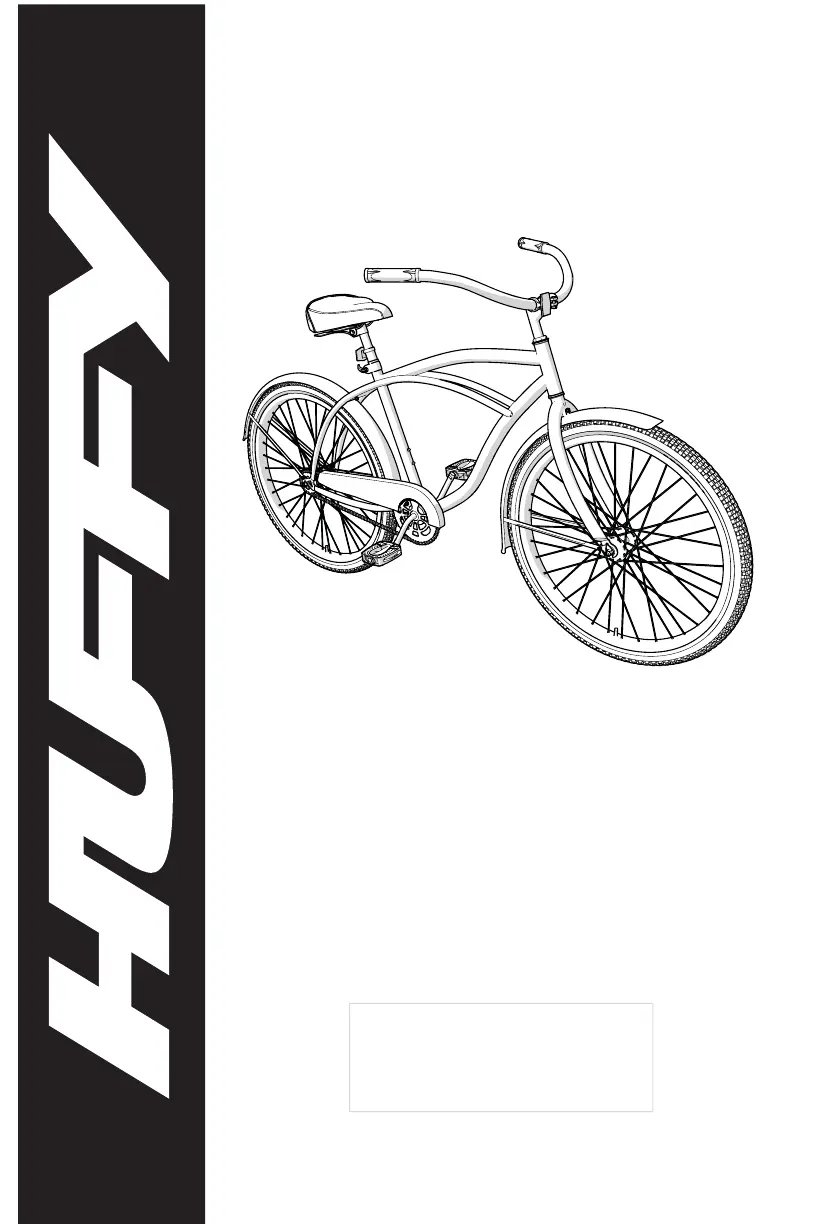

Owner’s Manual
for Cruiser Bicycles
Please read and fully understand this
manual before operation.
Save this manual for future reference.
This manual contains important safety,
assembly, operation and maintenance
information.
HCB EN 100512 m0001
Copyright Huffy Corporation 2012
2
Owner’s Manual Index
Your Bike
• Owner’s Bicycle Identifi cation Record ................................3
• Fitting the Rider to the Bicycle ............................................3
• Warning and Safety Information .........................................4
• Rules of the Road ...............................................................4
• The Owner’s Responsibility ................................................5
Bicycle Assembly
• Parts Assembly View ..........................................................6
• Parts Assembly List.............................................................7
• Introduction .........................................................................8
• Tools Needed ......................................................................8
• Front Fender Installation .....................................................9
• Assemble the Front Wheel to the Fork ..............................10
• Rear Fender Assembly ......................................................11
• Handlebar and Stem Installation ........................................12
• Testing Stem and Handlebar Tightness .............................13
• Seat Installation .................................................................14
• Testing Seat Clamp and Post Clamp Tightness .................15
• Front Refl ector Bracket Installation ....................................16
• Rear Refl ector Bracket Installation ....................................16
• Pedal Installation................................................................17
Maintenance and Service
• Brake System.....................................................................18
• Chain Adjustment ...............................................................18
• Tires ...................................................................................19
• Repair and Service ............................................................20
• Lubrication .........................................................................20
• Lubrication Table ................................................................20
• Inspection of the Bearings .................................................21
• Refl ectors ...........................................................................21
Huffy Warranty
• Huffy Corporation Limited Warranty ...................................22
3
Owner’s Bicycle Identifi cation Record
NOTE: This information is only available on the bicycle itself. It is not available
from Huffy.
Each Huffy bicycle has a Serial
Number stamped into the frame.
The Serial Number (1) can be found
on the bottom of the crank housing
as shown.
x
x
x
x
x
x
x
x
1
Write this number below to keep it for future reference.
If the bicycle is stolen, give this number and a description of the bicycle to the
police. This will help them fi nd the bicycle.
Model / Serial Number:
Purchase Date:
Model Name:
Fitting the Rider to the Bicycle
3
1
2
To determine the correct size of bicycle for the rider:
• Straddle the assembled bicycle with feet shoulder width apart and fl at on
the ground.
• There must be at least 1 inch (2.5 cm) of clearance (1) between the high-
est part of the top tube (2) and the crotch of the rider with tires properly
infl ated.
• The minimum leg-length for the rider is the highest part of the top tube plus
one inch (3).
