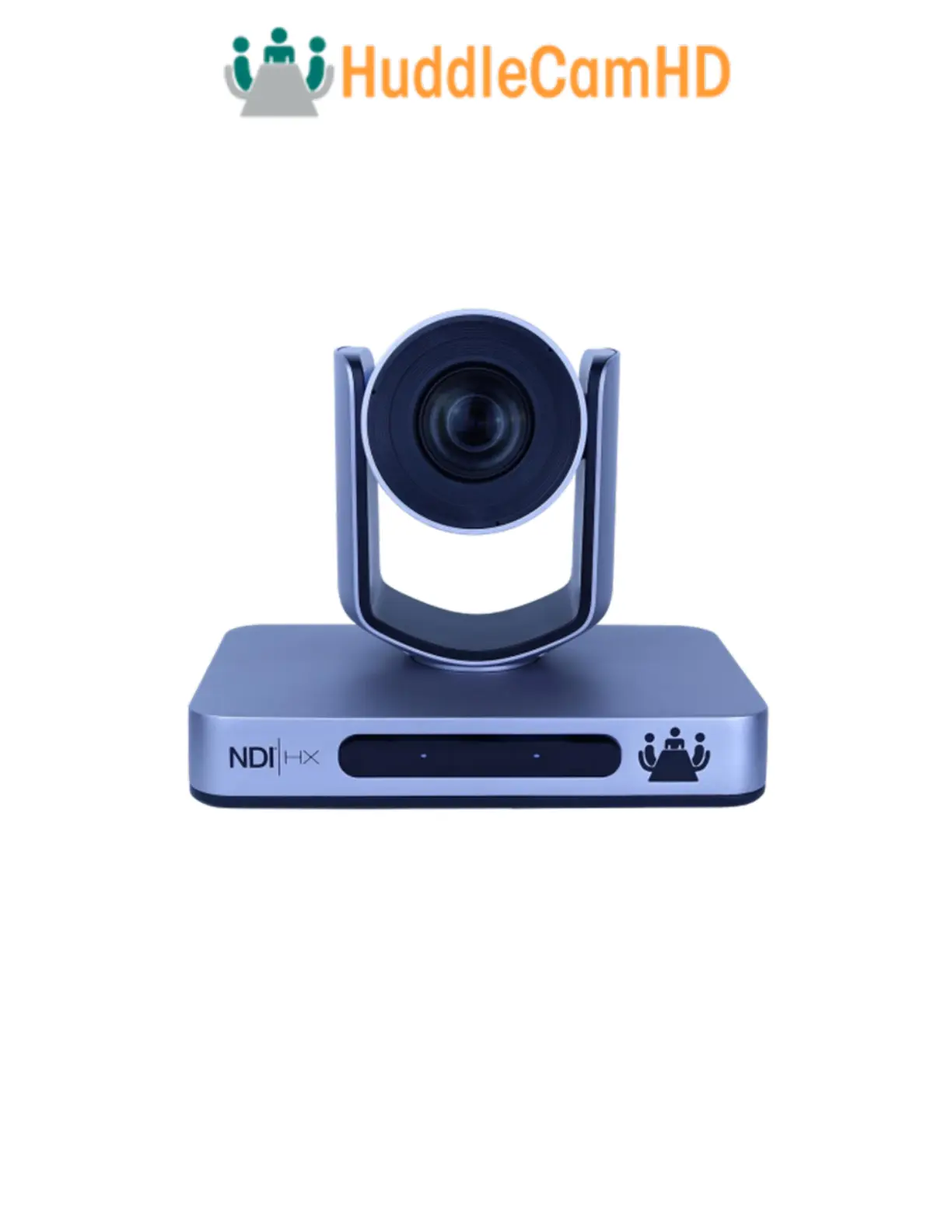

HuddleCamHD SimplTrack Lite
User Manual
Model No. HC20X-SIMPLTRACKLITE
V1.0
(English)
Please check huddlecamhd.com for the most up to date version of this document.
2
Table of Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Dimensional Drawings (mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Technical Speciîš¿cations ............................................. 8
NDI®|HX with NDI® 4 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tracking Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Device Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Conîš¿guring the Camera ............................................. 12
Tracking Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Main View Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Controlling the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Tracking Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Preset Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Video Recording & Screenshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
RS232 Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Serial Communication Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
HuddleCamHD VISCA Command List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
On Screen Display Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Network Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the Upgrade Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Maintenance and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Unqualiîš¿ed Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3
Preface
Thank you for using the HD Professional Video Conferencing Camera. This manual introduces the
function, installation, and operation of the HD camera. Prior to installation and usage, please read the
manual thoroughly.
Precautions
This product can only be used in the speciîš¿ed conditions in order to avoid any damage to the unit
itself.
• Don’t subject the camera to rain or moisture.
• Don’t remove the cover. Removal of the cover may result in an electric shock. In addition to void-
ing the warranty. In case of abnormal operation, contact support@huddlecamhd.com.
• Never operate outside of the specied operating temperature range, humidity, or with any other
power supply than the one originally provided with the unit.
• Please use a soft dry cloth to clean the unit. If the unit is very dirty, clean it with diluted neutral
detergent; do not use any type of solvents, which may damage the surface.
Warning
• Electrical Safety
Installation an operation must be in accordance with national and local electric safety
standards. Do not use any power supply other than the one originally supplied with this
camera.

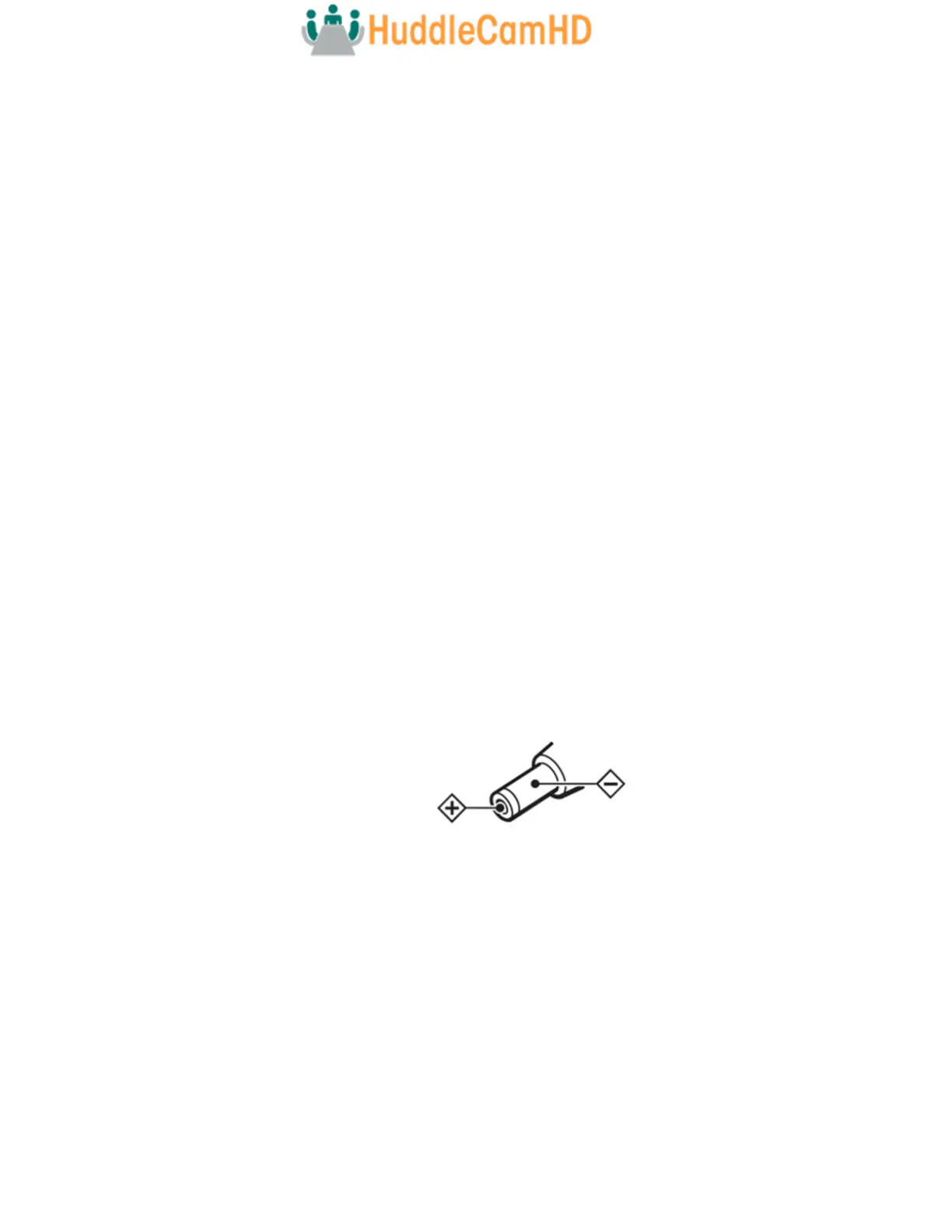

• Polarity of Power Supply
The power supply output for this product is 12V DC with a maximum current supply of
2A. Polarity of the power supply plug is critical and is as follows:
• Handling
ÅœAvoid any stress, vibration, or moisture during transportation, storage, installation,
and operation. o Do not lift or move the camera by grasping the camera head. Do
not turn the camera head by hand. Doing so may result in mechanical damage.
ÅœDo not expose the camera to any corrosive solid, liquid, or gas to avoid damage to
the cover which is made of a plastic material.
ÅœEnsure that there are no obstacles in the pan or tilt ranges of the camera lens.
ÅœNever power the camera on before installation is complete.
• Do not dismantle the camera – HuddleCamHD is not responsible for any unauthorized modi-
cation or dismantling
Product Specifications
| Brand: | HuddleCamHD |
| Category: | Security camera |
| Model: | SimplTrack Lite |
