UNTHREAD SOCKET SCREW FROM UPPER
RIGHT (CLOCKWISE) LOCATION TO LOWER
LEFT LOCATION FOR COUNTER-CLOCKWISE ROTATION
COUNTER-CLOCKWISE
ROTATION SCREW LOCATION
BOTTOM OF SWIVEL BASE
CLOCKWISE ROTATION
SCREW LOCATION
PRESS LEVER TO ROTATE SWIVEL BASE
SWIVEL BASE IS ASSEMBLED WITH CLOCKWISE ROTATION FROM THE FACTORY.
TO CHANGE FROM CLOCKWISE TO COUNTER-CLOCKWISE, REMOVE ROTATE
STOP SCREW AND RE-INSTALL TO COUNTER-CLOCKWISE LOCATION ON
BOTTOM OF SWIVEL BASE.
CLOCKWISE ROTATION
COUNTER-CLOCKWISE
ROTATION
INSTALLATION INSTRUCTIONS
(SHEET 1)
TOOLS LIST:
1. 2MM HEX WRENCH OR BIT WITH DRIVER
2. 3MM HEX WRENCH OR BIT WITH DRIVER
3. #1PHILLIPS SCREW DRIVER
4. #2 PHILLIPS SCREW DRIVER
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.
DRAWN
DATE
TITLE
DWG. NO.
REV.
SHEET 1 OF 3
CUSTOMER INSTRUCTIONS
3/27/2023
S. YANG
C
SC-1000-CS
SWIVEL BASE
COUNTER TOP,
SELF CHECK-OUT,
2X FLAT HEAD SCREWS
SC-1000 HEAD UNIT
SWIVEL BASE
USE 4X COUNTERSINK HOLES
TO ATTACH TO COUNTER
DETAIL A
DETAIL B
DETAIL C
2X FLAT HEAD SCREWS
ATTACH IN THESE LOCATIONS
REAR OF SC-1000 HEAD UNIT
SLIDES UNDER SWIVEL BASE TAB

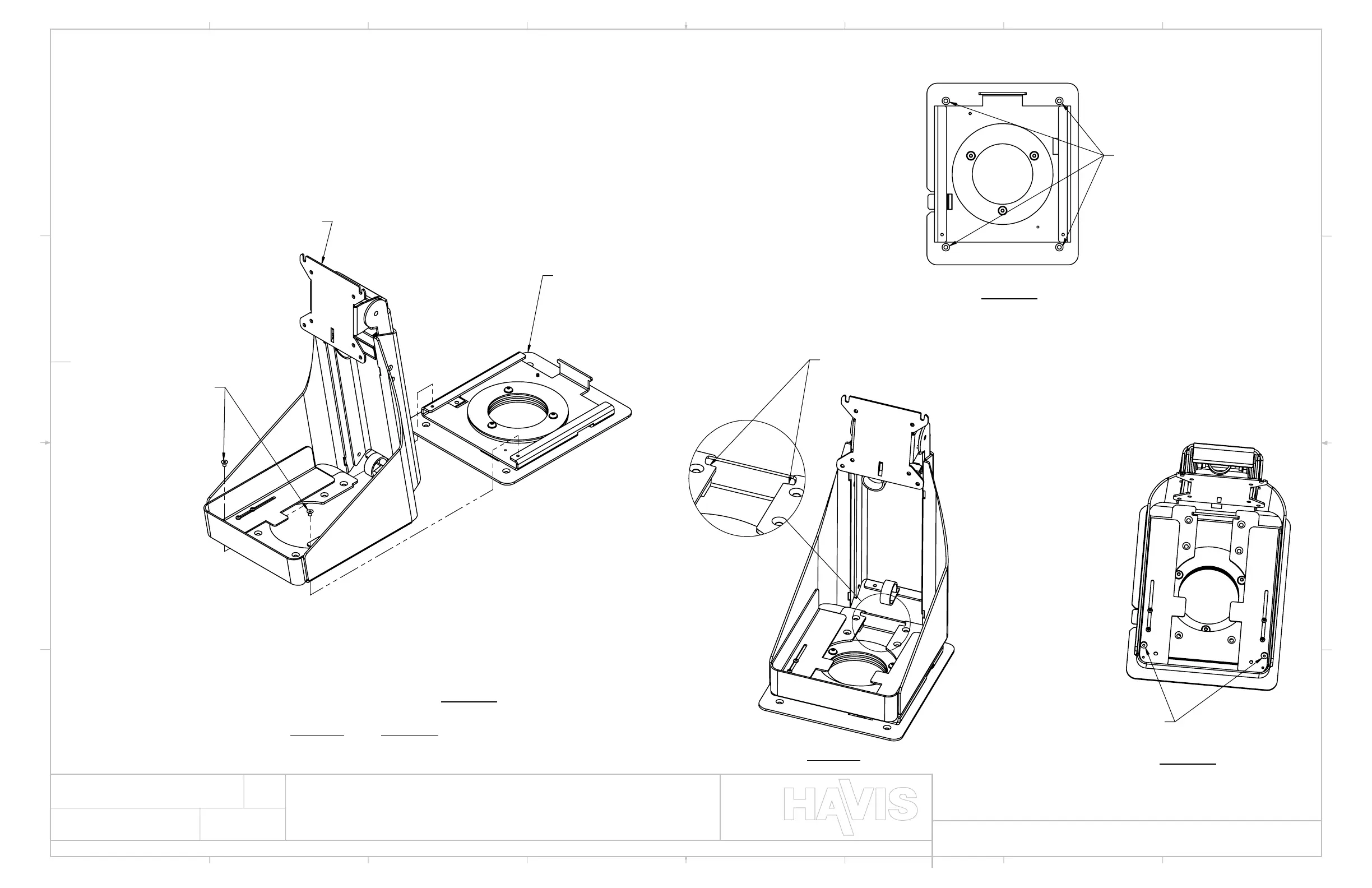

ASSEMBLY STEPS:
1. ENSURE SWIVEL BASE ROTATES IN DESIRED DIRECTION. SEE SHEET 1.
2. ATTACH SWIVEL BASE TO COUNTER WITH 4X FLAT HEAD SCREWS
(CUSTOMER TO PROVIDE) USING HOLES SHOWN IN
DETAIL A
.
3. SLIDE SC-1000 HEAD UNIT ONTO SWIVEL BASE AND SECURE WITH
2X FLAT HEAD SCREWS. SEE
DETAIL B
AND
DETAIL C
VIEWS.
INSTALLATION INSTRUCTIONS
(SHEET 2)
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.
DRAWN
DATE
TITLE
DWG. NO.
REV.
SHEET 2 OF 3
CUSTOMER INSTRUCTIONS
3/27/2023
S. YANG
C
SC-1000-CS
SWIVEL BASE
COUNTER TOP,
SELF CHECK-OUT,
2X SET SCREWS
DISPLAY BRACKET
4X M4 X 10MM
PHILLIPS SCREWS
INSTALLATION INSTRUCTIONS
(SHEET 3)
4X PRINTER BRACKET SCREWS
DETAIL A

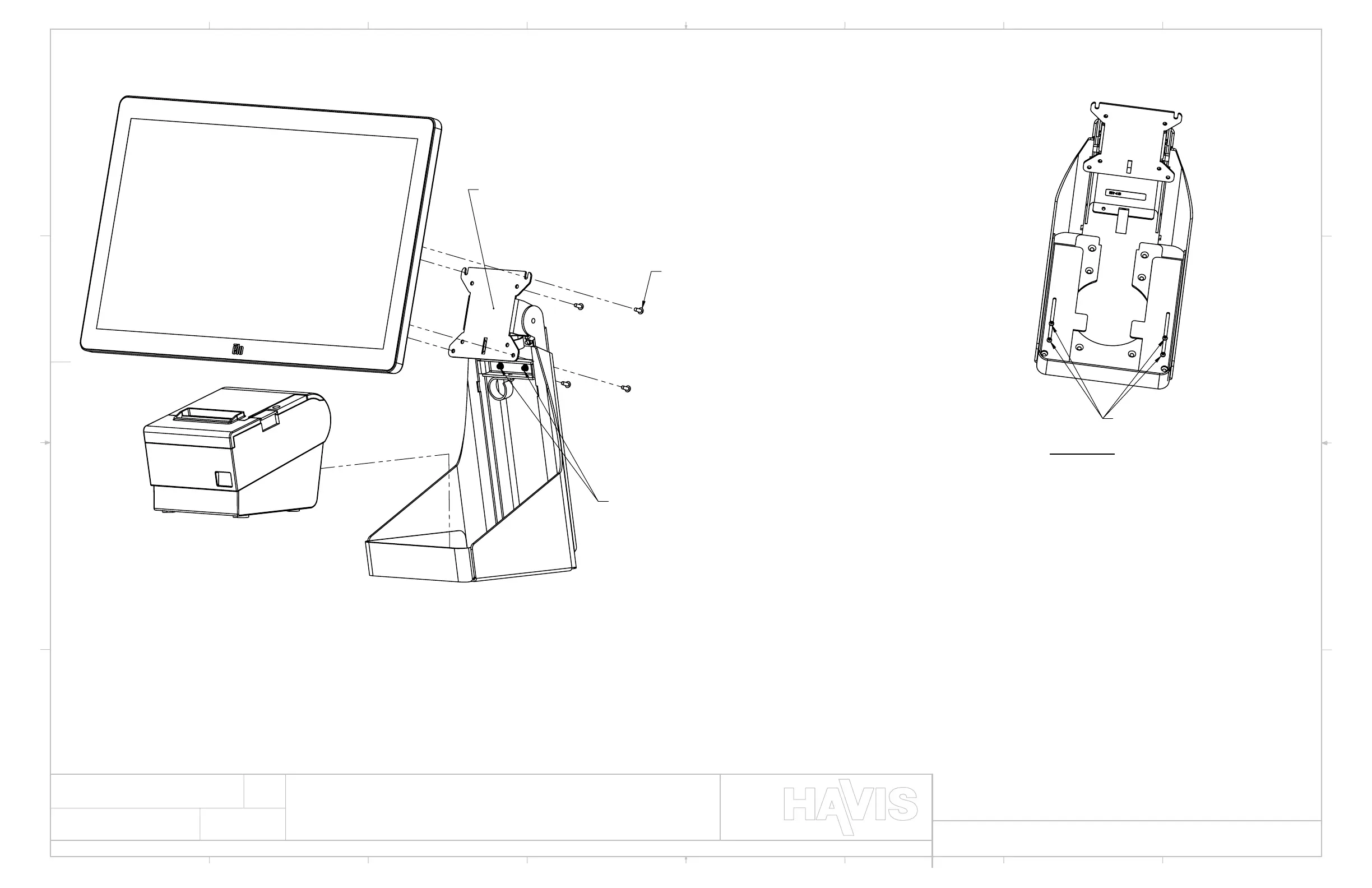

ASSEMBLY STEPS:
4. LOOSEN 2X SET SCREWS.
5. HOLD DISPLAY ATTACHMENT BRACKET AT DESIRED HEIGHT.
6. TIGHTEN 2X SET SCREWS.
7. ATTACH DISPLAY WITH 4X M4 X 10MM LONG PHILLIPS SCREWS.
8. SLIDE PRINTER BRACKET TO DESIRED LOCATION.
9. PLACE PRINTER INTO SC-1000-CF UNIT. 4X SCREWS CAN BE
LOOSENED TO ADJUST PRINTER BRACKET (SEE DETAIL A).
(
OPTIONAL
) DUAL LOCK (2 STRIPS INCLUDED) CAN BE USED
UNDER THE PRINTER TO HOLD IT IN PLACE IF DESIRED.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.
DRAWN
DATE
TITLE
DWG. NO.
REV.
SHEET 3 OF 3
CUSTOMER INSTRUCTIONS
3/27/2023
S. YANG
C
SC-1000-CS
SWIVEL BASE
COUNTER TOP,
SELF CHECK-OUT,

Product Specifications
