Page 1/1

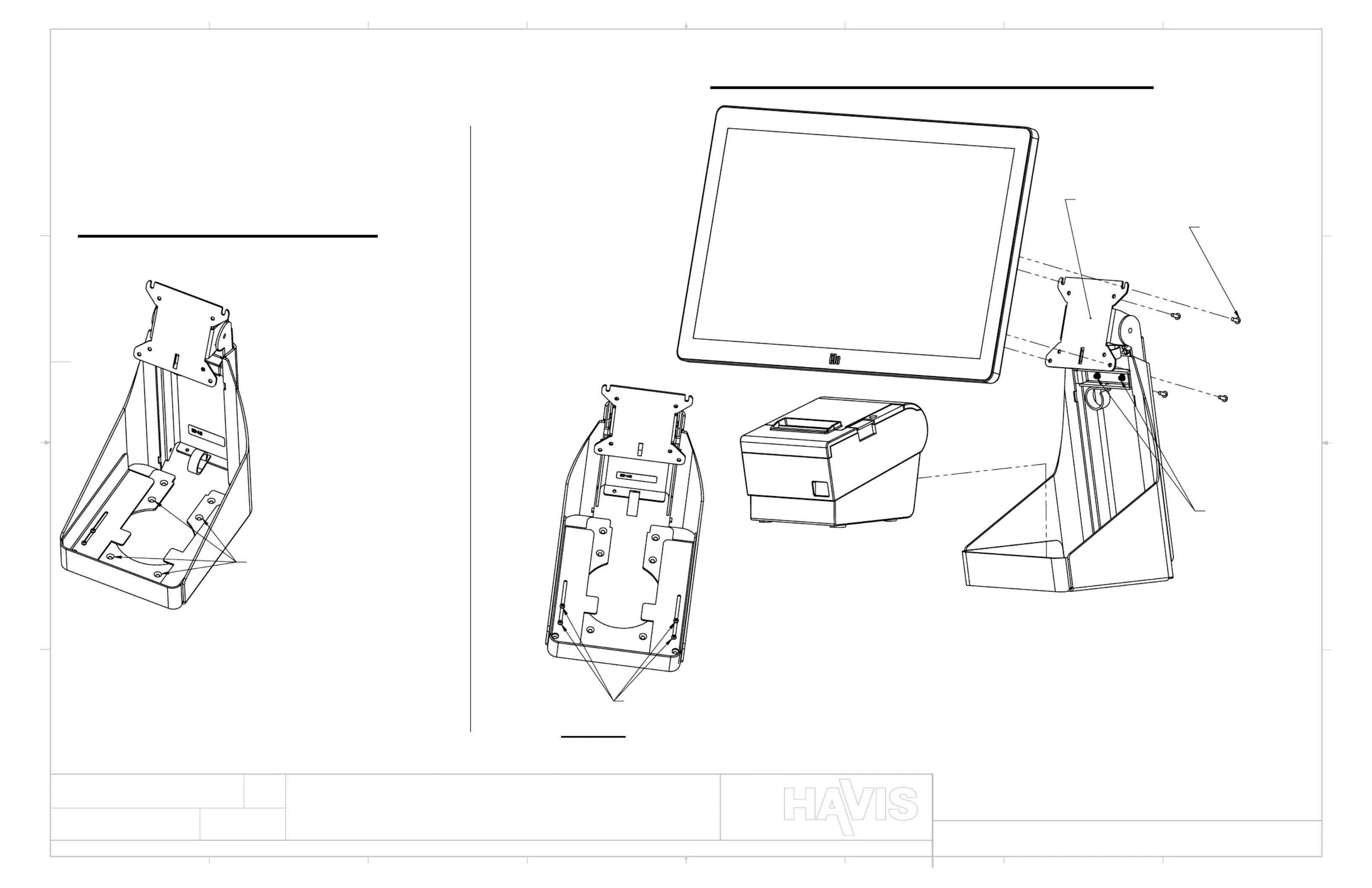

ATTACH TO COUNTER USING

4X COUNTER SINK HOLES

2X SET SCREWS

DISPLAY BRACKET

4X M4 X 10MM

PHILLIPS SCREWS

4X PRINTER BRACKET SCREWS

DETAIL A

ASSEMBLY STEPS:

1. ATTACH SC-1000-CF TO COUNTER THROUGH 4X

COUNTER SUNK HOLES.

(CUSTOMER TO PROVIDE ATTACHMENT SCREWS)

ASSEMBLY STEPS:

1. LOOSEN 2X SET SCREWS.

2. HOLD DISPLAY ATTACHMENT BRACKET AT DESIRED HEIGHT.

3. TIGHTEN 2X SET SCREWS.

4. ATTACH DISPLAY WITH 4X M4 X 10MM LONG PHILLIPS SCREWS.

5. SLIDE PRINTER BRACKET TO DESIRED LOCATION.

6. PLACE PRINTER INTO SC-1000-CF UNIT. 4X SCREWS CAN BE

LOOSENED TO ADJUST PRINTER BRACKET (SEE DETAIL A).

(

OPTIONAL

) DUAL LOCK (2 STRIPS INCLUDED) CAN BE USED

UNDER THE PRINTER TO HOLD IT IN PLACE IF DESIRED.

COUNTER ATTACHMENT

DISPLAY INSTALL & PRINTER INSTALL

TOOLS LIST:

1. 3MM HEX WRENCH OR BIT WITH DRIVER

2. #1 PHILLIPS SCREW DRIVER

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.

DRAWN

DATE

TITLE

DWG. NO.

REV.

SHEET 1 OF 1

CUSTOMER INSTRUCTIONS

3/27/2023

S. YANG

SC-1000-CF

FIXED BASE

SELF CHECK-OUT,COUNTER TOP,
