C-VS-1600-EXPL_INST_6-09.docx6-09

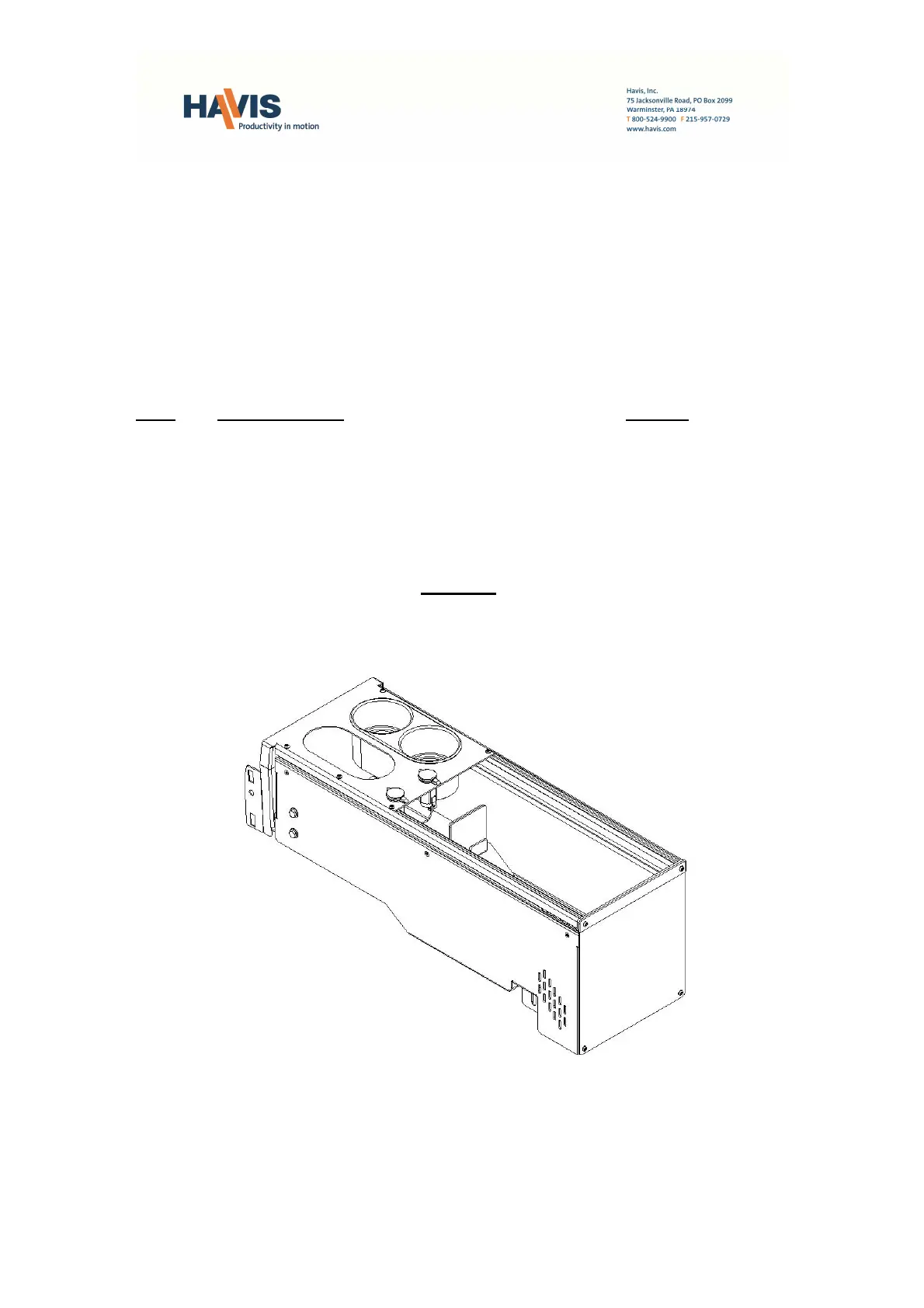

INSTALL INSTRUCTIONS C-VS-1600-EXPL
16” VEHICLE SPECIFIC CONSOLE
2006-2010 FORD EXPLORER
TOOLS NEEDED:
Screw Driver Set
Wire Cutters
Wire Crimping tool
Torx Bit Set
Socket set
QTY DESCRIPTION PART #
1 Hardware kit – Torx C-HK-1
4 ¼” Flat washer GSM31005
4 ¼-20 x ¾” Hex head bolt GSM33001
1 Duct block off plate CM001517
1 Duct block off plate gasket CM001518
Always!
Read all instructions before installing any Havis, Inc. products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
C-VS-1600-EXPL_INST_6-09.docx6-09
O.E.M. console
prior to removal
Carefully remove
chrome trim bezel
Remove O.E.M. cup
holder assembly. (7mm)
Remove rear side bolts,
(10mm-Driver & Pass.)
Remove front side bolts,
(10mm-Driver & Pass.)
Remove O.E.M. console
housing. (7mm or 10mm)
Unplug 12volt socket.
If vehicle has MP3 or USB ports,
you must remove plugs and
reconnect harness for Dash system
to work correctly.
Remove O.E.M. console housing. (7mm)
A relocation plate for the MP3 and USB
plugs is not currently available. It is up
to the installer to locate where desired.
Remove O.E.M. console
housing. (7mm)
C-VS-1600-EXPL_INST_6-09.docx6-09

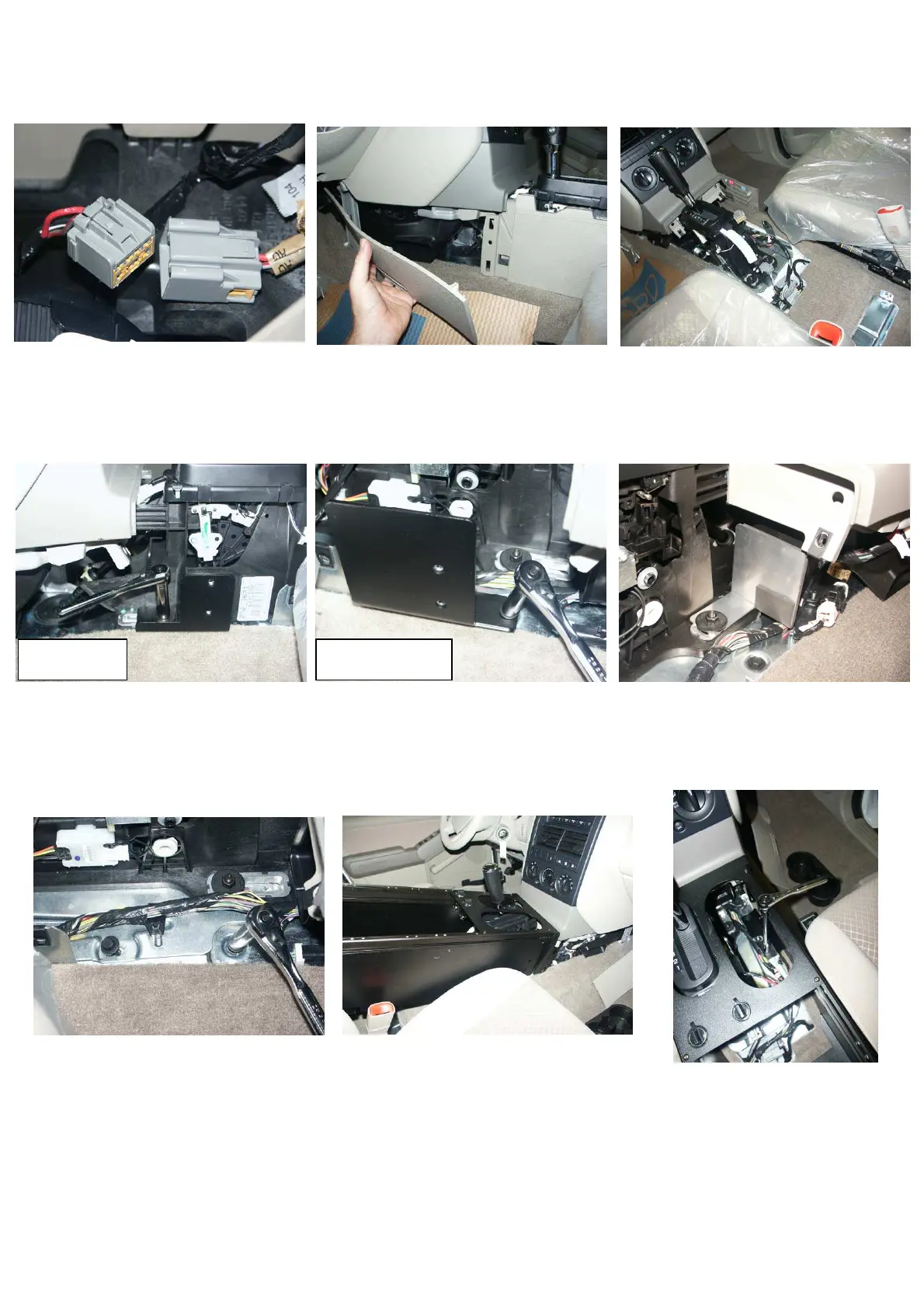

O.E.M. console
completely removed
Remove side panel
(Driver & Pass)
Unplug O.E.M. housing
harness.
Remove (2) passenger side
floor bolts and harness clip.
(10mm)
Attach passenger side floor
with O.E.M. bolts. (10mm
w/ extension) Reattach
harness clip.
Put gearshift lever into
“Drive” and carefully
place new console
housing into position.
(All floor brackets to the
inside of housing)
Remove one (1) floor nut on driver side and passenger side. (11mm)
Attach brackets to vehicle using O.E.M. 11mm nut. Make sure brackets
are pushed forward towards dash.
Install air duct block off
plate and gasket using
O.E.M. bolt. (11mm)
Driver-side Passenger-side
