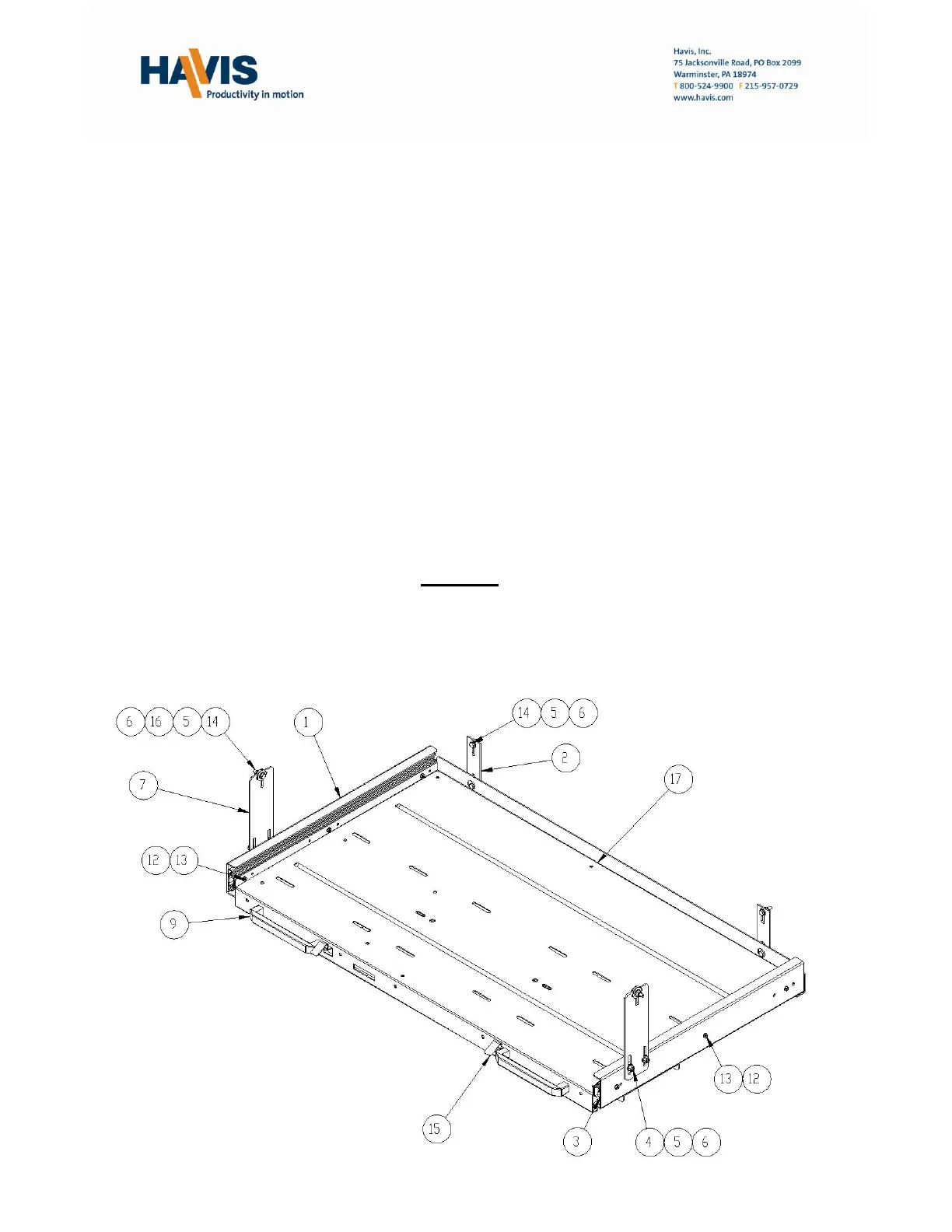

INSTALL INSTRUCTIONS C- - -F TTB CV
FULL SIZE TRUNK TRAY
1995-2009 FORD CROWN VICTORIA
TOOLS REQUIRED:
Ratcheting wrench
Sockets - 7/16”, #10, #8
Screwdriver set
Wrench – 7/16”
HARDWARE:
QTY DESCRIPTION PART #
2 Front mounting bracket S-1-TA001HBS2-004 (item 2)
6 GSM33001 ¼” x ¾” Hex head bolt (item 4)
18 GSM31005 ¼” Flat washer (item 5)
10 GSM30016 ¼” Nylock nut (item 6)
2 Driver/Pass side mounting bracket CM000701 (item 7)
4 GSM33002 ¼” x 1” Hex head bolt (item 14)
4 GSM31014 ¼” x 1” Fender washers (item 16)
Always!
Read all instructions before installing any Havis, Inc. products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
C-T - -F_INST_6- 6- TB CV 09 09
Center and lower tray to maximize
height for equipment
Tighten all hardware.
Loosely attach Driver/Pass side
mounting brackets to vehicle as shown
in photo above using ¼” x ¾” Hex
bolts, washers and serrated nuts.
Loosely attach Driver/Pass side
mounting brackets to trunk tray
using ¼” x ¾” Hex bolts, washers
and serrated nuts.
Center and lower tray to maximize
height for equipment
Tighten all hardware
Loosely attach front mounting
brackets to vehicle using ¼” x ¾”
Hex bolts, washer and serrated nut.
Loosely attach front mounting
bracket to trunk tray assembly using
¼” x ¾” Hex bolt and serrated nut.
Ford Crown Victoria Police
Interceptor trunk
Remove spare tire and tire jack
from trunk
Position trunk tray on top of
trunk deck
