Page 1/1

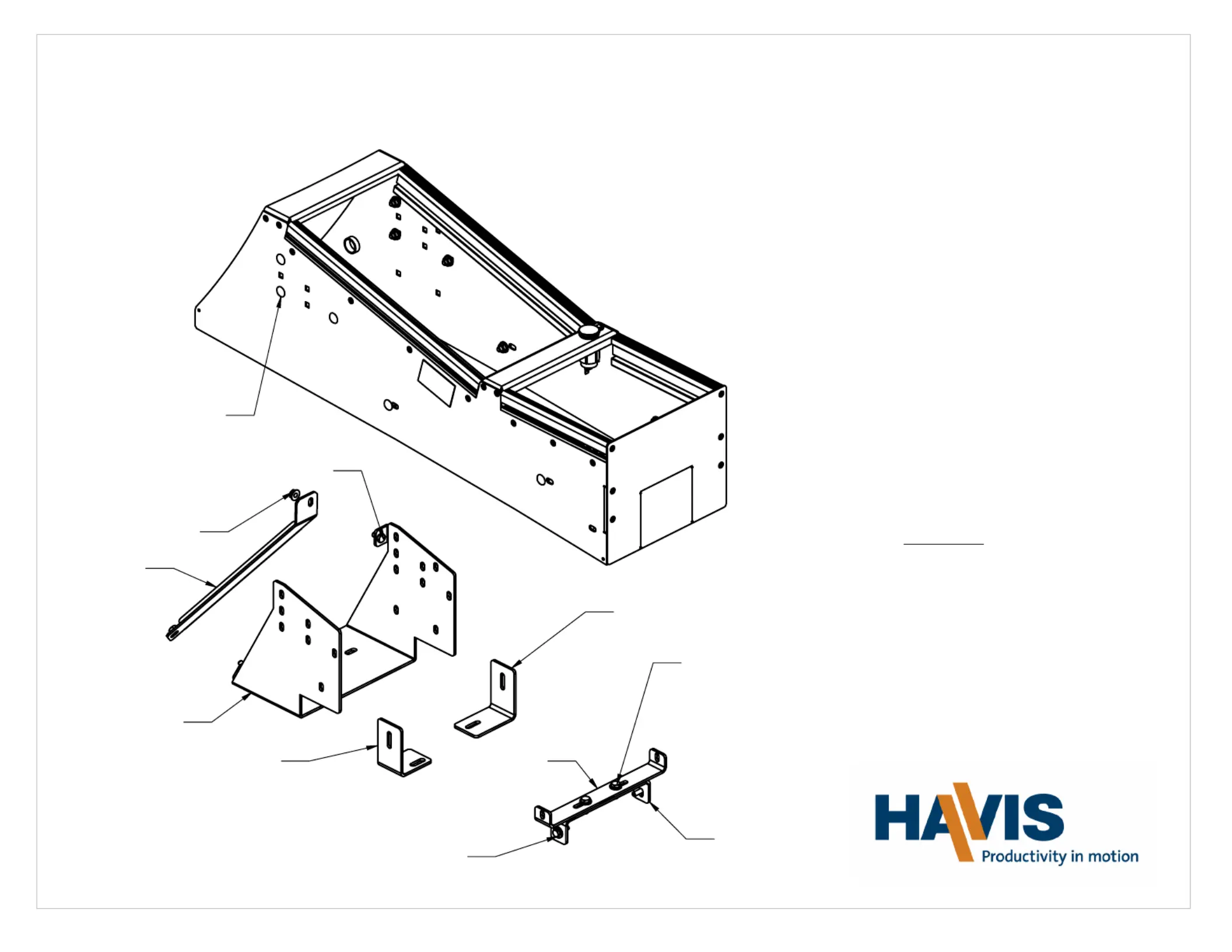

1/4-20 X 1/2" CARRIAGE
BOLT GSM31999 & 1/4-
20 SERRATED NUTS
GSM30023, 10X
CM004828
CM004941
1/4-20 X 3/4" HHCS GSM33001, 2X
1/4-20 WASHER GSM31005, 2X
M6-1.0 X 20MM HHCS, GSM33711, 2X
1/4" WASHER GSM31005, 2X
CM004942
CM004829
CM004884
CM005692
1/4-20 X 1/2" HHCS
GSM33300, 2X
1/4-20 SERRATED
NUT GSM30023, 2X
C-VS-1508-INSE INSTALLATION INSTRUCTIONS
REMOVE OEM TUNNEL PLATE.
1.
RETAIN OEM HARDWARE.
DISASSEMBLE FRONT MOUNTING
2.
BRACKET CM004884 FROM CONSOLE.
LOOSELY ATTACH CM004884 FRONT
3.
MOUNTING BRACKET, CM004828 MID
DS MOUNTING BRACKET & CM004829
MID PS MOUNTING BRACKET USING
OEM HARDWARE.
LOOSELY ATTACH CM004941 &
4.
CM004942 USING SUPPLIED
HARDWARE.
LOOSELY ATTACH CM005692
5.
SUPPORT BRACKET TO CM004884
USING SUPPLIED HARDWARE IN THE
ORIENTATION SHOWN.
LOWER HAVIS CONSOLE OVER
6.
MOUNTING BRACKETS AND SLIDE
INTO POSITION.
FIX MOUNTING BRACKETS TO
7.
CONSOLE USING SUPPLIED
HARDWARE.
TIGHTEN ALL HARDWARE.
8.
CONSOLE INCLUDES PROVISIONS
9.
FOR
OPTIONAL
OEM REAR CONDUIT.
REMOVE SQUARE KNOCKOUT FROM
END PANEL, PLACE CONSOLE OVER
CONDUIT, ATTACH WITH SPACERS
PROVIDED AND OEM REAR BRACKET
SCREWS.
Product Specifications
| Brand: | Havis |
| Category: | Car kit |
| Model: | C-VS-1508-INSE |
