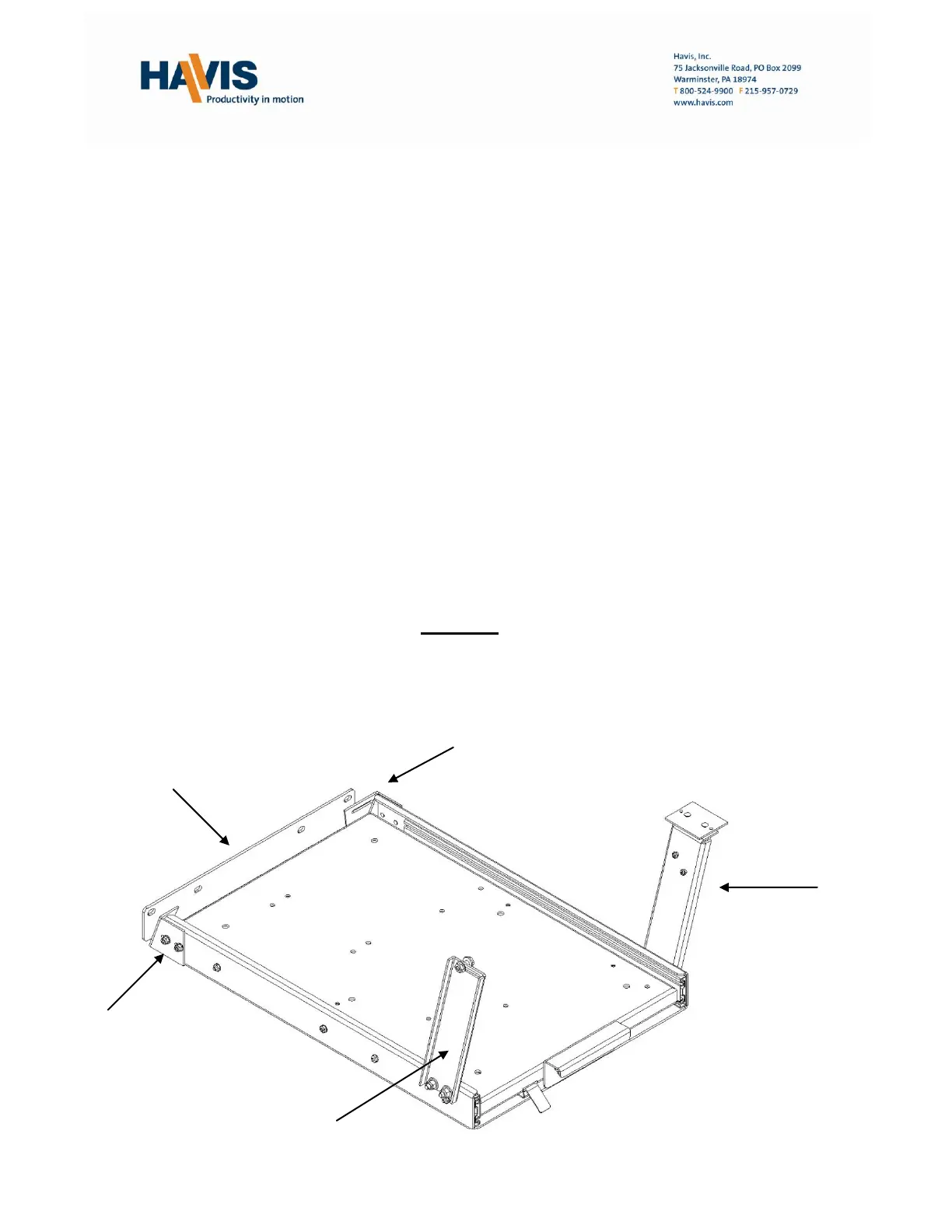

INSTALL INSTRUCTIONS C- - TTB CV
HALF SIZE TRUNK TRAY
1995-2009 FORD CROWN VICTORIA
TOOLS REQUIRED:
Ratcheting wrench
Sockets - 7/16”, #10, #8
Screwdriver set
Wrench – 7/16”
HARDWARE:
ITEM# QTY DESCRIPTION PART #
1 1 Passenger side front foot S-1-000958
2 1 Driver side front foot S-1-000959
3 1 Support plate S-1-000964
4 1 Driver side rear foot S-1-TA001HBS1-006A
5 1 Passenger side rear foot S-1-TA001HBS1-006B
11 GSM31005 ¼” Flat washer
11 GSM30023 ¼” Serrated nut
5 GSM33001 ¼” x ¾” Hex head bolt
4 8-32 Keps nut GSM30027
Always!
Read all instructions before installing any Havis, Inc. products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
1
2
3
5
4
(Attaches w/ 8-32 keps nuts)
(Attaches w/ ¼” serrated nuts)
(Attaches w/ ¼” serrated nuts)
(Attaches w/ 8-32 keps nuts)
(Bolts to back seat wall)
C- -CV_INST_6- 6- TTB 09 09
INSTALL INSTRUCTIONS: (refer to drawing on previous page)
1. Remove spare tire and jack from trunk.
2. Slide tray into the top shelf of the trunk.
3. Loosely attach (items #1 & 2) front mounting feet to the tray, using ¼” x ¾” Hex
head bolts, washers, and nylock nuts.
4. Loosely attach front mounting feet to the vehicle, using ¼” x 1” Hex head bolts,
washers, and nylock nuts.
NOTE: Use backing plate for additional support on forward side of seat strainer.
5. Loosely attach (items #4 & 5) driver/passenger side rear mounting feet to the tray,
using ¼” x ¾” Hex head bolts, washers, and nylock nuts.
6. Loosely attach (items #4 & 5) driver/passenger side rear mounting feet to the vehicle,
using ¼” x 1” Hex head bolts, washers, and nylock nuts.
7. Check to see if tray opens and closes smoothly.
8. Tighten all hardware.
