C-KBM-103_INST_12-12

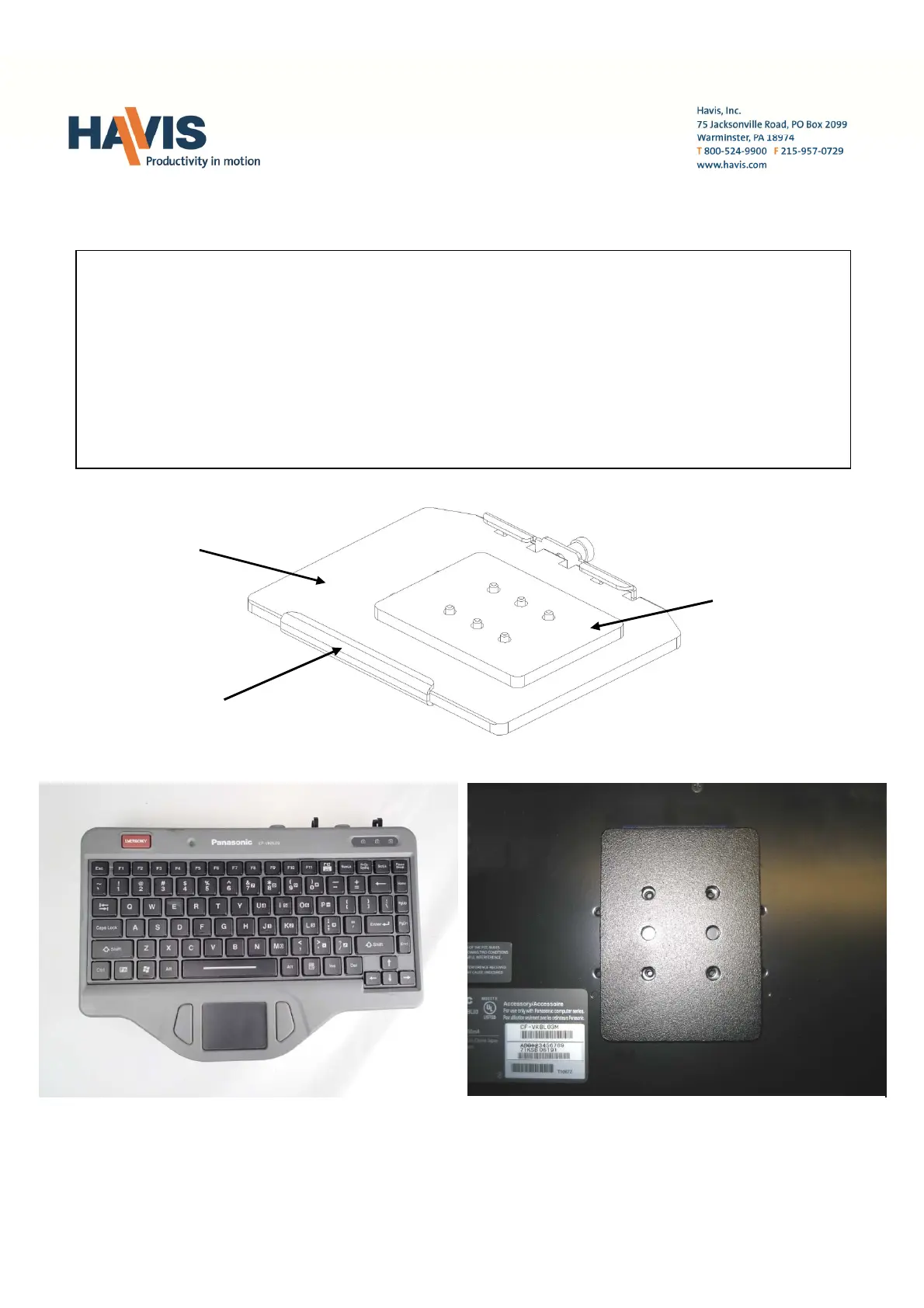

INSTALL INSTRUCTIONS C-KBM-103
Mount for Panasonic (PDRC) CF-VDL01, CF-VDL02 and CF-VDL03 Keyboard
Tools Required:
Phillips Screwdriver
Hardware / Parts included:
Qty Description Part Number
1 Slide Guide Bracket S-1-C990825A-001
1 Spacer S-1-C990825A-003
1 Slide Plate S-1-C990825A-002
6 3mm x 16mm PFHMS GSM33749
4 8/32 x 1/2β PFHMS GSM33082
4 8/32 nuts GSM30027
Panasonic (PDRC)
CF-VDL01, CF-VDL02 and CF-VDL03 Keyboard
Disassemble spacer from slide plate.
Flip keyboard over and place the spacer over the
threaded inserts as shown.
Four (4) mounting holes will line up.
S-1-C990825A-003
Spacer
S-1-C990825A-001
Slide Guide Bracket
S-1-C990825A-002
Slide Plate
C-KBM-103_INST_12-12
Place PVC slide plate on the spacer and line up four
holes as desired.
Use the supplied 3mm x 16mm Phillips flat head
machine screws to attach spacer and slide plate to
the bottom of keyboard.
Before attaching the Slide Guide bracket to the tilt
/ swivel motion device. You may want to bend
down the slide tensioning tab as shown for easier
slide movement. Adjust tension as desired by
bending tab up or down.
Attach Slide Guide bracket to tilt / swivel with four
(4) 8/32 x 1/2β Phillips ο¬at head machine screws and
nuts.
Attach tilt / swivel with keyboard mount assembly
to desired mount. C-HDM-204 with C-HDM-303, C-
MD-202 and C-KBM-103 shown.
