Page 1/6
The Dash Monitor Mount bracket system requires two or three main parts that
are Sold Separately. See web site Monitor Configurator for more detailed
bracket information. http://www.havis.com/monitor_mounts.htm
• 1 - Vehicle Specific dash mount bracket. (C-DMM-114)
• 1 - Computer Specific Monitor adaptor bracket. (C-MM-200 series)
• 1 - Offset adaptor bracket. (C-MM-301)
The C-MM-301 offset adaptor goes between the C-DMM-114 and C-MM-2XX.
It may not be required in some applications.
TOOLS REQUIRED:
• Ratchet Wrench
• Socket Set
• Open End Wrenches - 7/16”, 1/2”
• Phillips Screwdriver (short)
HARDWARE:
QTY: DESCRIPTION: PART #:
2 1/4” x 3/4 Hex Bolt GSM33001
2 1/4” Flat Washer GSM31005
2 1/4” Nylon retaining washer GSM31322
6 1/4-20 Hex Flange Serrated Nut GSM30023
4 10/32 x 1/2 Flat Head Machine Screw GSM33072
4 Rubber Bumpers (stick on) GSM19802
1 Monitor Adapter Hardware Varies (monitor specific)
ALWAYS!
• Read all instructions before installing any Havis, Inc products.
• Use hardware provided with install kit
Note:
The swing door utilizes a gas spring to assist in opening the door and to eliminate the
possibility of it slamming shut. If additional damping is desired because of heavier equipment, an
optional stronger gas spring is available under Part Number CM86662-30 (sold separately)
Installer must change out gas spring as needed.
INSTALL INSTRUCTIONS
C-DMM-114
2007-2014 TAHOE SWING-OUT DASH MONITOR MOUNT
C-DMM-114_INST_4-10 rev 9-13

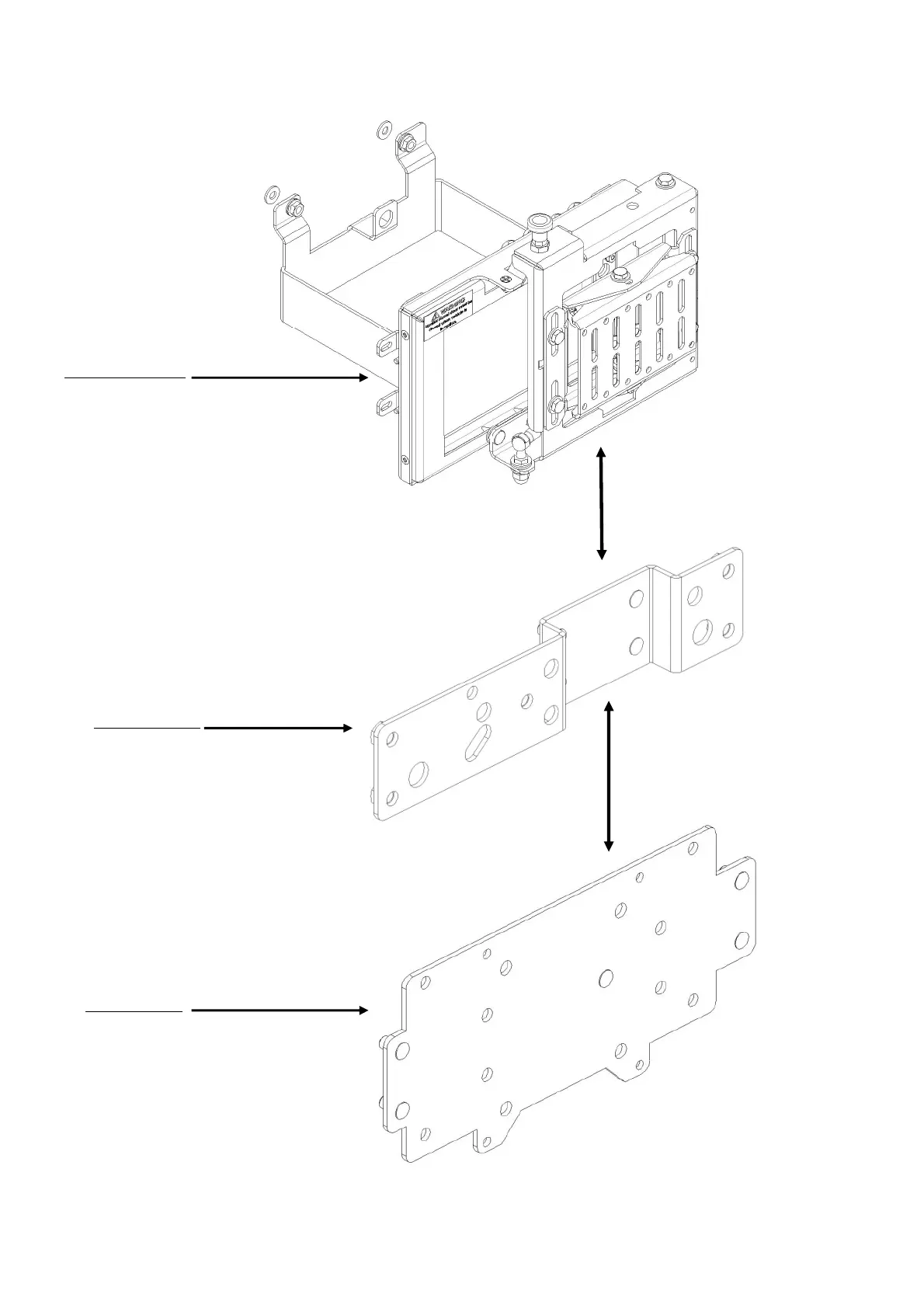

C-DMM-114
Assembly for Tahoe
C-MM-201
Monitor Mount Adaptor
(VESA bracket shown)
C-MM-301
Offset Adaptor
C-DMM-114_INST_4-10 rev 9-13
Installation:
Carefully remove center OEM trim bezel.
This has eight (8) snap in clips.
OEM Dash
Prior to installation.
#1
#2
#3
Remove 4 screws that hold radio head.
Screws to be reused (7 mm socket)
Remove radio and unplug wires.
Attach #1 Side support brackets onto original radio
mount holes with OEM screws.
One bracket on each side.
Disassemble
1. Side support brackets
2. Cover / Trim Bezel
3. Gas Shock (one end only)
Product Specifications
| Brand: | Havis |
| Category: | Car kit |
| Model: | C-DMM-114 |
