Extron SM 26 Manual
Read below đź“– the manual in Italian for Extron SM 26 (4 pages) in the Speaker category. This guide has been helpful for 2 people and has been rated 4.5 stars on average by 2 users
Page 1/4
Number of Wires
per Connection Point Maximum
Wire Gauge
1 12 GAW
2 16 GAW
4 18 GAW
Wire Gauge Table
5.1"
(13.0 cm)
6.0"
(1
5.2 )cm
2.6"
(6.6 cm)
3.5"
(8.9 cm)
R = 0.28"
(0.71 )cm
SMK P SM 26/28 Pivot Mount Kit • Setup Guide
This setup guide contains installation information about the Extron SMK P SM 26/28 Pivot Mount Kit.
WARNING: Installation and service must be performed by authorized personnel only.Potential risk of severe injury.
AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. L’installation et l’entretien doivent être effectués par
le personnel autorisé uniquement.
ATTENTION: The final installation should be able to continuously support the speaker weight. The final installation should
also be able to support any short term overloading. Since applications can vary considerably, it is assumed that the
installer will exercise good judgment when selecting the mounting location, method, and hardware. Installation and service
must be performed by authorized personnel only.
Installing the Pivot Mount Kit
The pivot mount enables the speaker to be positioned
and locked at various angles due to the adjustable ball
joint feature.
NOTE: Observe all applicable building codes and
local ordinances when installing the speaker.
ATTENTION: Attaching a secondary support
cable to the SM 26/28 speaker is required when
using the pivot mount kit.
1. Locate a suitable mounting location where the
pivot mount will be installed. Allow for the
dimensions of the SM 26 and SM 28, as shown
below.
SM 28 SM 26: :
2. All four mounting plate
screw holes must be secured
with at least two
screws attached to
a wall stud. Mark
the four holes on
the wall as indicated
by the wall plate
holes.
NOTE:
Mounting
hardware
is not
provided.
3. Drill the four holes
for the wall plate.
4. Drill a hole for the speaker wire.
5. Route the speaker wire through the speaker wire hole
while leaving enough slack for connection to the wall
plate.
NOTE: If the speaker wire is not being routed
through the wall, a notch on the wall plate allows
the wire to enter the wall plate from a raceway.
6. Attach speaker wires to the Euroblock on the wall plate.
Quick Connect Contacts
1
11.50"
(29.21 cm)
2.44 - 3.35"
(6.20 - cm 8.51)
7.28"
(18.50 cm)
16.50"
(4
1.91 )cm
9.2"
(23.37 )cm
8.45"
(21.46 cm)
2.44 - 3.35"
(6.20 - cm 8.51)
6.45"
(16.38 cm)
12.98"
(32.97 )cm
9.16"
(23.27 cm)
SMK P SM 26/28 Pivot Mount Kit • Setup Guide (Continued)

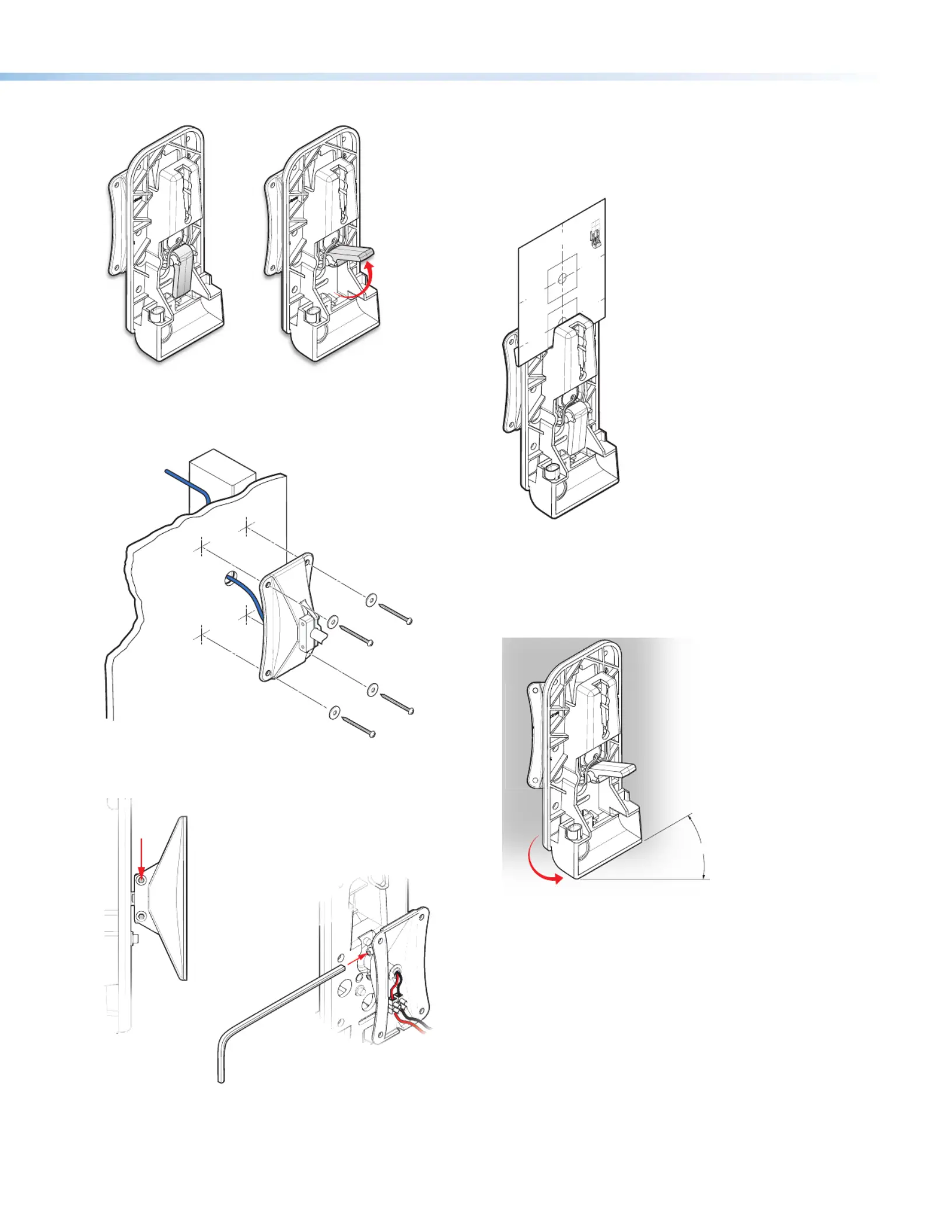

7. Unlock the mounting plate from the pivot ball by moving
the ball lever to the Up (horizontal) position.
Pivot ball locked Pivot ball unlocked
8. Mount the wall plate to the wall using appropriate
fasteners and washers in the four holes.
9. Loosen, but do not remove, the two locking screws that
secure the pivot ball shaft to the wall plate, then extend
the mounting plate to the desired position.
5/32” (4 mm) Hex enchWr
10. To aid in determining where the speaker tweeter is
located before the speaker is actually mounted on the
pivot mount, place the included tweeter alignment guide
on the mounting plate of the pivot mount to determine
the actual position of the tweeter after the speaker is
installed.
TWEETER LOCATIO N
BEND A
ND PLAC
E O
N FL AT MOUN T
SM 26 SM 26
SM 28 SM 28
TWEETER LOCATION
BEND AND PLACE ON FLAT MOUNT
11. Adjust the mounting plate to the desired position.
Articulation: a maximum angular movement of
• SM 26: 30° up, 30° down, 30° left, 30° right
• SM 28: 20° up, 30° down, 30° left, 30° right
30°
Turn
the unit to the right or the left
2
SMK P SM 26/28 Pivot Mount Kit • Setup Guide (Continued)
3
SM 28 = 20°
SM 26 = 30°
Down position Up position
30°
Rotation: a maximum angular rotation of
360°
360°
Unit
Rotation
12. Lock the ball joint lever (vertical down position) so that
the mounting plate is securely locked in place.
13. Tighten the two screws to secure the pivot ball shaft to
the wall plate.
5/32” (4 mm) Hex enchWr
14. Install the speaker on the mounting plate so that the
speaker is securely attached to the mounting plate.
Catch bTa
ATTENTION: By default, the SM 26/28 speaker is
shipped unlocked. When attaching the speaker
to the mounting plate be sure that the speaker
is unlocked. Failure to place the speaker in the
unlocked position will result in damage to the
speaker lock mechanism should an attempt be
made to attach the speaker to the mounting
plate. See the or SM 26 Setup Guide
SM 28 Setup Guide for further details.
