Page 1/6

IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications before connecting the

product to the power source.

IN1806 • Setup Guide

The Extron IN1806 is a six input seamless scaling presentation switcher that supports signal resolutions up to 4K @ 60 Hz at

4:4:4. It features DisplayPort and HDMI inputs, an HDMI output, and a mirrored Extron DTP2 output for extending video, audio,

and control signals up to 330 feet (100 meters) over a shielded CATx cable. The IN1806 delivers high image quality, fast and

reliable switching, Extron ProDSP audio processing, seamless video transition effects, logo keying, and HDMI loop-out. The

scaler can be controlled and congured over Ethernet, RS-232, or USB.

This guide provides instructions for an experienced user to set up and congure the IN1806 scaler. It covers how to perform basic

setup operations using the front panel controls and selected Simple Instruction Set (SIS™) commands.

NOTES:

• For full installation, configuration, menus, connector wiring, and operation details, see the IN1806 and IN1808 Series

User Guide at www.extron.com.

• The IN1806 can also be configured via the Extron Product Configuration Software (PCS), available at

www.extron.com. For information on using PCS, see the IN1806 and IN1808 Series Help File.

Installation

Rear Panel Features

100-240V 0.7A MAX ~

4 6

HDMI/CEC

INPUT S AUDIO INPUTS OUTPUT S REMOTE

OVER TP

IN1806

1A 1B

S IG LINK

OUT T x Rx

RS-232

GT x Rx

RESET

1 2

3 4

+48V

MIC/LINE

L R

AUX

3 4

LAN

LOOP OUT

A C H

B D E F G I JKL

OUTPUTS (DT P2/XTP/HDBT)

50-60 Hz

A AC power connector

B DisplayPort input connector (input 1)

C HDMI (with CEC) loop out connector

D HDMI (with CEC) output connector (1A)

E DTP2/XTP/HDBaseT (with CEC)

output connector (1B)

F Over TP IR pass-through connector

G Analog line audio inputs 3 and 4

H Analog mic/line audio inputs 1 and 2

and adjacent phantom power LEDs

I Analog line audio outputs 1 through 4

J LAN connector

K Remote RS-232 port

L Reset LED

M Reset button

N Aux mono or stereo analog

line audio input connector

O HDMI inputs 2 through 6

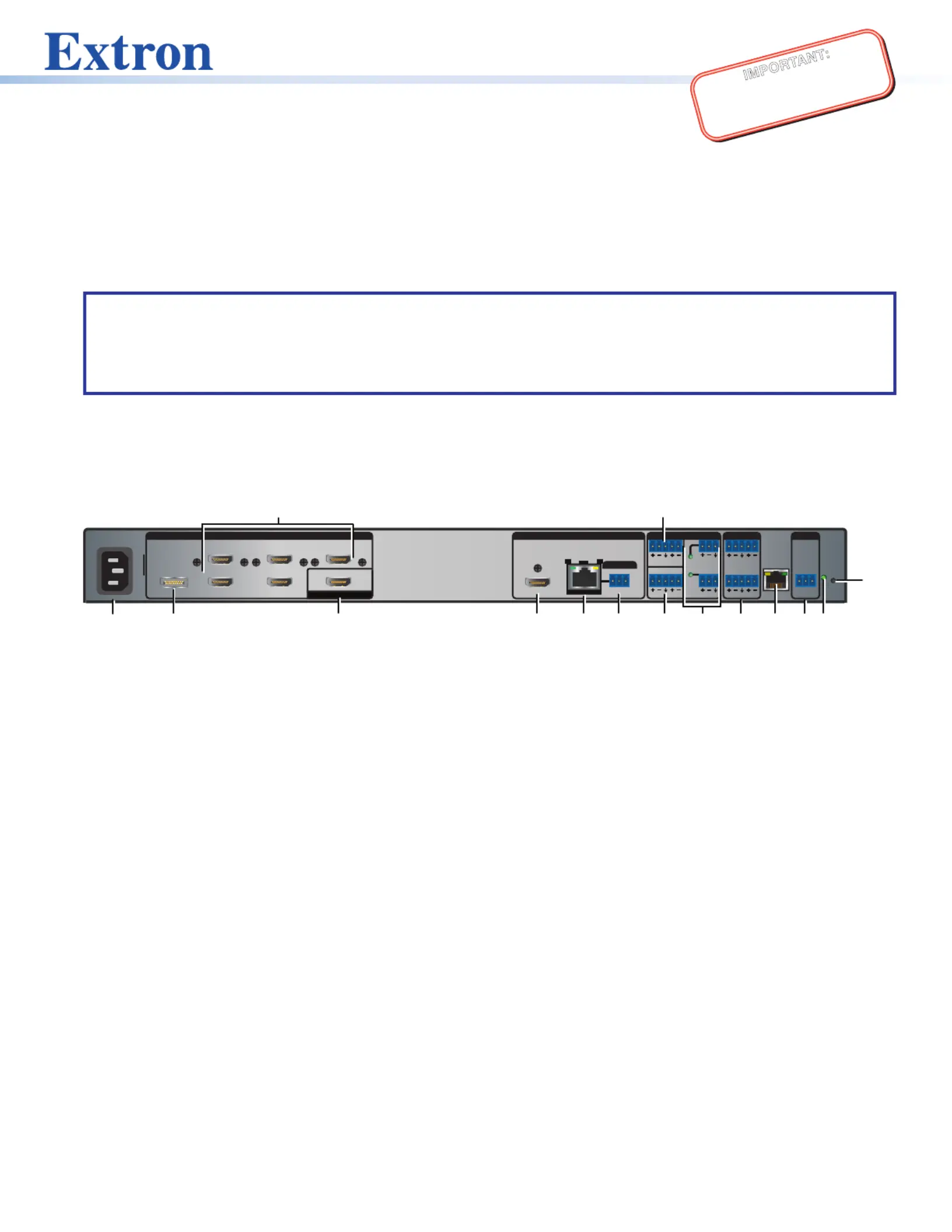

Figure 1. Rear Panel Connectors — IN1806

Mounting and Cabling

Step 1 Mount the device—

a. Turn off or disconnect all equipment power sources.

b. Mount the IN1806 to a rack using the pre-installed side mounting brackets, or remove the brackets and use an optional

19-inch kit for under-desk mounting (see the instructions provided with the mounting kit, available at www.extron.com).

Step 2 Connect inputs—

a. Make the following video input connections as needed:

• Connect a DP source to the Input 1 DisplayPort connector (see figure 1, B).

• Connect digital HDMI or DVI (with an appropriate adapter) sources to HDMI input connectors 2 through 6 (O).

b. Connect analog audio sources to:

• The 5-pole captive screw line audio input connectors 3 and 4 (G) and the Aux connector (N) for balanced or

unbalanced stereo audio. The Aux Line input (N) is shared and can be associated with one or more video inputs.

• Connect balanced or unbalanced mic or line level inputs to 3-pole Mic/Line captive screw connectors 1 and 2 (H).

These inputs support optional +48 VDC phantom power, which is indicated by the LEDs at the left of the connectors.

IN1806 • Setup Guide (Continued)

Step 3 Connect outputs—

Make the following output connections as needed:

• Connect an HDMI, or DVI with an appropriate adapter, display to HDMI/CEC output connector 1A (see figure 1, D, on the

previous page). Connect a display to the HDMI Loop Out connector (C).

• Connect a DTP/XTP matrix switcher/HDBaseT compatible receiver to output connector 1B (E). For cable wiring and

recommendations, see “Twisted Pair Recommendations for DTP, XTP, and HDBaseT Communication.”

• Connect balanced or unbalanced analog audio output devices to one or both 5-pole captive screw output connector pairs 1

and 2, or 3 and 4 (I) (see on the next page for more information).Audio Wiring

To pass infrared data, connect a control device to the 3-pole IR Over DTP captive screw connector (see , IR Over TP Wiring

on the next page). Alternatively, insert RS-232 communication to a DTP/HDBaseT endpoint via Ethernet (see the IN1806 and

IN1808 Series User Guide for more information).

Step 4 — Connect control devices

• To control the IN1806 through Ethernet, connect a LAN or WAN to the RJ-45 LAN connector (

J). To wire the RJ-45

connector to the cable, see “Twisted Pair Recommendations for DTP, XTP, and HDBaseT Communication.” The default IP

address of the scaler is 192.168.254.254, the default subnet mask is 255.255.255.0, and the default gateway address is

0.0.0.0.

• For serial RS-232 control, connect a host device to the 3-pole captive screw connector (K). The default baud rate is 9600.

• For control through USB, connect a host device to the front panel USB mini-B port (see figure 2, A, on the next page).

Step 5 Connect power—

Connect a 100 to 240 VAC, 50-60 Hz power source to the AC power connector (see ﬁgure 1, A, on the previous page).

Twisted Pair Recommendations for DTP, XTP, and

HDBaseT Communication

Extron recommends using the following practices to achieve full transmission distances

and reduce transmission errors:

• Use Extron XTP/DTP 24 SF/UTP cable for the best performance. At a minimum,

Extron recommends 24 AWG, solid conductor, STP cable with a minimum bandwidth

of 400 MHz.

• Terminate cables with shielded connectors to the TIA/EIA-T568B standard (shown at

right).

• Limit the use of more than two pass-through points, which may include patch points,

punch down connectors, couplers, and power injectors. If these pass-through points

are required, use shielded couplers and punch down connectors.

ATTENTION:

• Do not connect these connectors to a computer or telecommunications network.

• Ne connectez pas ces ports à des données informatiques ou à un réseau de télécommunications.

• DTP remote power is intended for indoor use only. No part of the network that uses DTP remote power should be

routed outdoors.

• L’alimentation DTP à distance est destiné à une utilisation en intérieur seulement. Aucune partie du réseau qui utilise

l’alimentation DTP à distance ne peut être routée en extérieur.

NOTE: When using shielded twisted pair cable in bundles or conduits, consider the following:

• Do not exceed 40% fill capacity in conduits.

• Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles.

• Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners.

• Separate twisted pair cables from AC power cables.

Firmware Updates

Download rmware updates from the Extron website and upload them via the internal web pages or PCS.

TIA/EIA-T568B

Pin Wire Color

1 White-orange

2 Orange

3 White-green

4 Blue

5 White-blue

6 Green

7 White-brown

8 Brown

1 2 3 4 5 6 7 8

RJ-45

Connector

Insert istedTw

Pair Wires

Pins:

Audio Wiring

Wire the audio input and output connectors as shown at right. Use

the supplied tie wrap to strap the audio cable to the extended tail

of the connector.

ATTENTION:

• For unbalanced outputs, do not connect wires to the

“-” poles (see the illustration at right).

• Pour les sorties asymétriques, ne connectez pas de

câbles aux pôles «-» (voir l’illustration de droite).

NOTE: The length of exposed wires is critical. The ideal length

is 3/16 inch (5 mm).

IR Over TP Wiring

To transmit and receive IR signals, connect a control device to the

three-pole Over TP IR connector (G, Tx, and Rx).

NOTE: RS-232 data can be inserted via Ethernet only (see the

IN1806 and for details).IN1808 Series User Guide

Front Panel Overview

DE H

Figure 2. Front Panel Features — IN1806

A Cong port C button E and buttons

G knob and LEDs

B Input selection buttons D and LEDs F Navigation buttons H knob and LEDs

A — Connect a host device to the USB mini-B port for device configuration, control, file Front panel configuration port

transfers, and firmware upgrades.

B — Press one of these buttons to select an input. The buttons light amber for audio and video, Input selection buttons (1-6)

green for video only, or red for audio only.

C — Press this button to enable or disable the most recently selected logo slot. Press and hold the button to Logo button

select logo slot 1 through 6 using the input selection buttons (slots 7-16 are available via SIS commands only). See the

IN1806 and IN1808 Series User Guide at www.extron.com for more information about logos.

D Signal and Status LEDs

• Input signal LEDs — These six LEDs light green for their corresponding inputs when active video content is detected

on that input.

• Output signal LEDs — Output LEDs 1A, 1B, and Loop light green when active video is being output, and blink amber

when output video and sync are disabled.

• Input HDCP LEDs — These six LEDs light green for each input signal that is HDCP-encrypted.

• Output HDCP LEDs — These three LEDs light green for an output when it is currently HDCP-encrypted.

• DTP2 and DTP Output LEDs — These LEDs light green if DTP or DTP2 power has been enabled on DTP output 1B.

E — Press these buttons to access and navigate the on-screen display (OSD) menu system.Menu and Enter buttons

F — Press these buttons to navigate through the on-screen display menu system or change settings.Navigation buttons

G — Rotate the knob to adjust the microphone level. The eight LED indicators light according to Mic knob and LED indicators

the level being adjusted. The LEDs light in order from bottom to top to indicate steps from 1% (-99 dB) to 99% (-1 dB). The

bottom LED blinks when the volume is muted. The top LED blinks when the volume is at 100% (0 dB).

H Volume knob and LED indicators — Rotate the knob to adjust the program or output volume level.

Balanced Audio Output

Tip

Ring

Tip

Ring

Slee

ves

Unbalanced Audio Output

Tip

No Ground Here

Tip

Slee sve

L R

Unbalanced Audio InputBalanced Audio Input

Tip

Ring

Tip

Ring

Slee sve

Tip

Sleeve

Tip

L R

Do not tin the wires!

udio Inputs and Outputs 1 – 4 and xAu

Mic/Line Inputs 1 and

Balanced Audio Input

Tip

Sleeve

Ring

Unbalanced Audio Input

Tip

Sleeve
