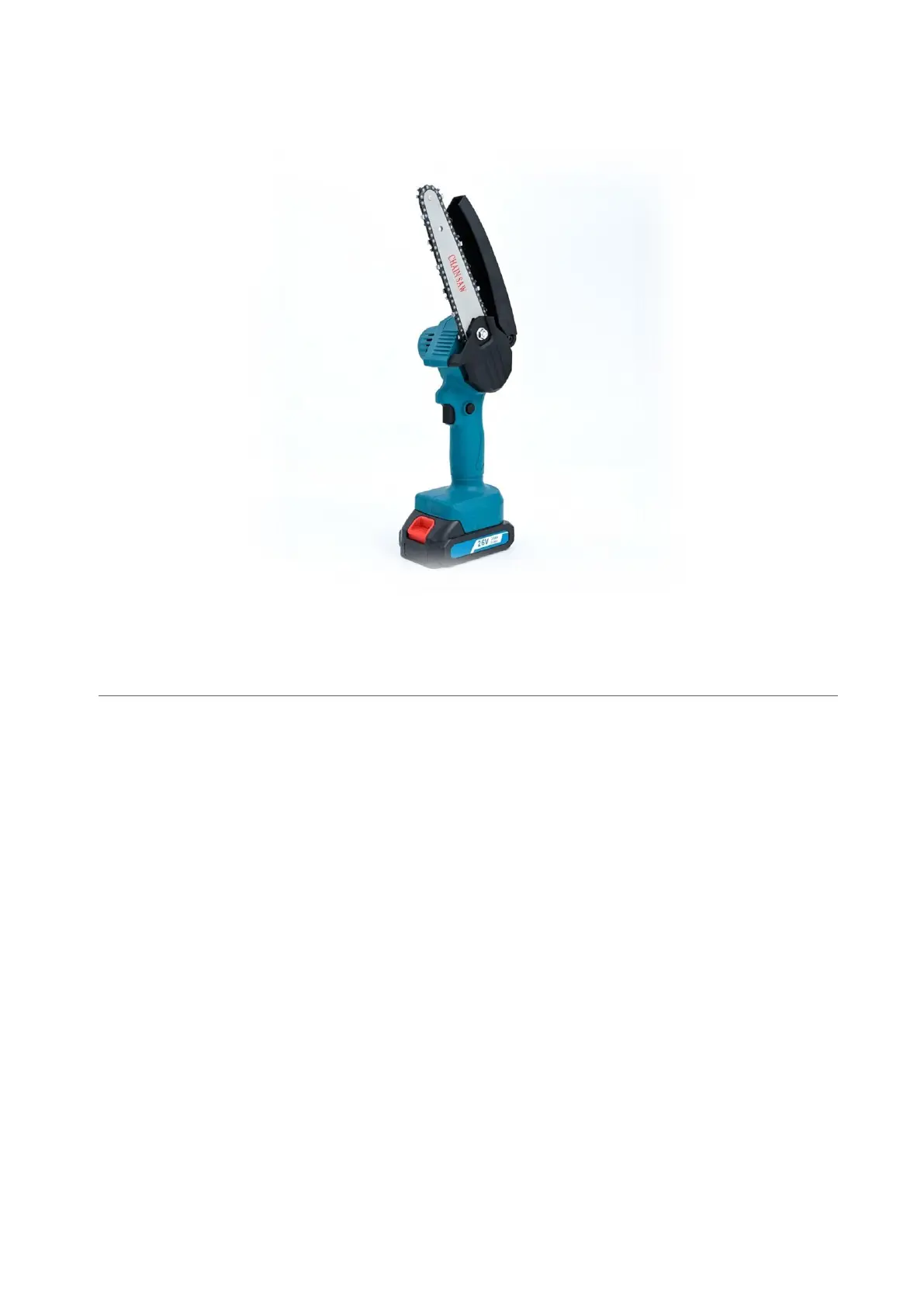

EXTRALINK ELECTRIC 6 INCH CHAIN SAW TM- 107
C
C
C
CC
ONTENTS
ONTENTS
ONTENTS
ONTENTSONTENTS
User manual 2 ...............................................................................................................................................
Benutzerhandbuch ..................................................................................................................................... 9
Instrukcja obsługi ...................................................................................................................................... 16
EXTRALINK
ELECTRIC 6 INCH CHAIN SAW TM- 107
U
U
U
UU
SER MANUAL
SER MANUAL
SER MANUAL
SER MANUALSER MANUAL
Please read instruction carefully before use.

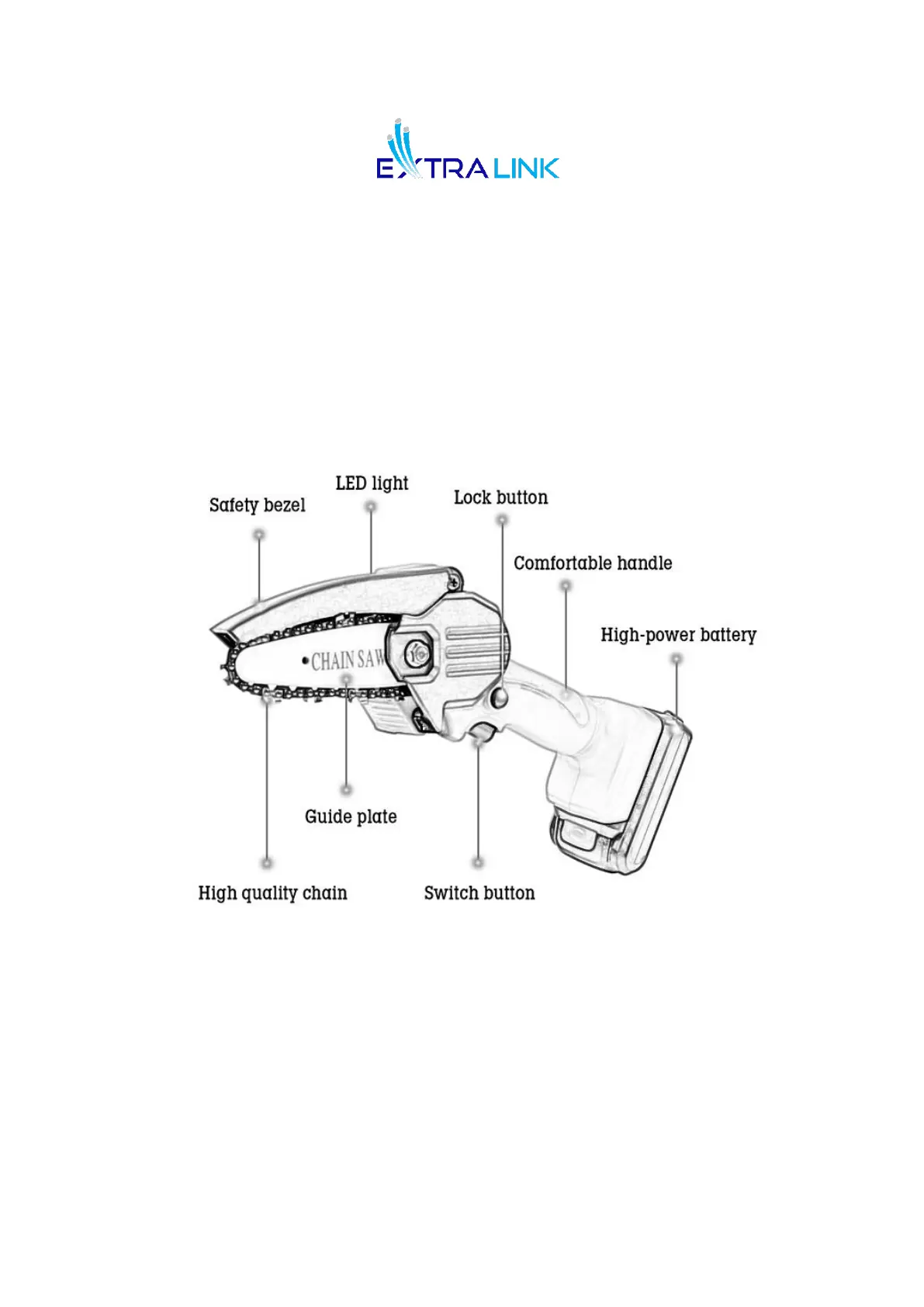

1. Function description
2. Operating instruction
2.1 To remove the side cover: unscrew the main screw in a counterclockwise direction and
remove the cover.
2.2 How to remove chain?: After remove the side cover, loosen compression screw, remove the guide
and remove chain.
2.3 How to install the chain guide plate?: First, insert the chain into the guide plate so that the inner
teeth of the chain are inside the guide plate.
The chain blade should be facing forward.
The saw has a screw for adjusting the chain tension. When installing the guide plate, make sure that the
adjustment block is in the hole a at the end of the guide plate!
Product Specifications
| Brand: | Extralink |
| Category: | Sawing machine |
| Model: | TM-107 |
