Page 1/8
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

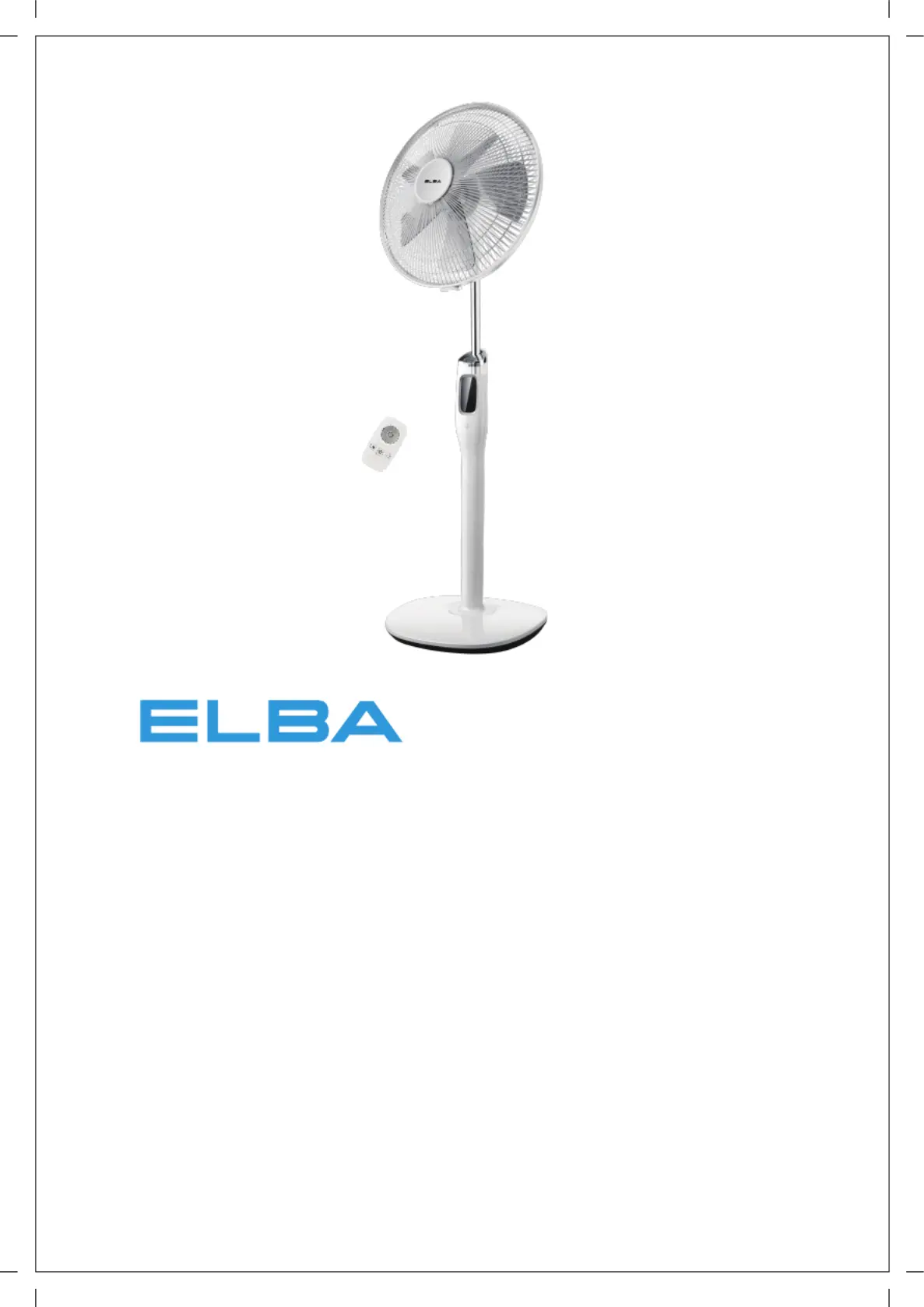

Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for uture reference. f
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer when
you require service.
16'' INVERTER STAND FAN
MODEL: ESF-E1637DC(WH)
145x210mm MRP5613-002 FS40-12HR 颜色：四色 说明书 365 20150506
1
Read Rules for Safe Operation and Instructions Carefully.
CAUTION
1. If the supply cord is damaged, it must be replaced by manufacturer
or its service agent or a similarly qualified person in order to avoid
a hazard.
2. Indoor use only.
3. To protect against the risk of electrical shock, do not immerse the
unit, cord or plug in water or other liquid.
4. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Young children should be
supervised to ensure that they do not play with the appliance.
5. When the appliance is not in use and before cleaning, unplug the
appliance from the outlet.
6. Keep electrical appliances out of reach from Children or infirm
persons. Do not let them use the appliances without supervision.
7. When the fan was assembled, the rotor blade guard shall not be
taken off anymore
- Prior cleaning unplug the fan
- The rotor guard shall not be dissembled/opened to clean the
rotor blades.
- Wipe the fan enclosure and rotor blade guard with a slightly
damp cloth.
WARNING
1. Never insert fingers, pencils, or any other object through the grille when fan is
running.
2. Disconnect fan when moving from one location to another.
3. Be sure fan is on a stable surface when operating to avoid overturning.
4. DO NOT use fan in window, rain may create electrical hazard.
5. Indoor use only.
RULES FOR SAFE OPERATION
22
PART FIGURE
1. Take out the base tube, three butterfly screws for fixed base and the round base
from the packing carton;
2. Insert the tube to the round base, be sure to make the positioning screw align with
the base;
3. Screw the three butterfly screws into the holes on the tube and tighten them;
4. Loosen the fastening knob, adjust the height of inner tube and tighten the knob.
5. Take out the control part of the fan from the packing carton, loosen the fastening
screw at the back of the box, insert the inner tube into the bottom hole, make sure
that the fastening screw and the fastening knob in the same position.
6. Usage of the remote control hook: make the straight face of hook up, clip the hook
to the inner tube along with the opening, the hook can be moved up and down
along the tube (Fig.1). The hook of the remote control may be linked to the
hole for storage when not in use. (Fig.2)
ASSEMBLY INSTRUCTION
Fig. 1 Fig. 2
Straight face
Hook
Opening
Inner tube
Hook hole
Front Guard
Center Piece
Circlip
Clip
Plastic Nut
Control Part
Remote Control Hook
Round Base
Butterfly Screws For Fixed Base
Tighten
Loosen
Spinner
Rear Guard
Shaft Motor
Fastening Knob
Tube
Female terminals
Blade
Note: All the pictures in this manual are for explanation purpose only. Any discrepancy between
the real object and the illustration in the drawing shall be subject to the real subject.
