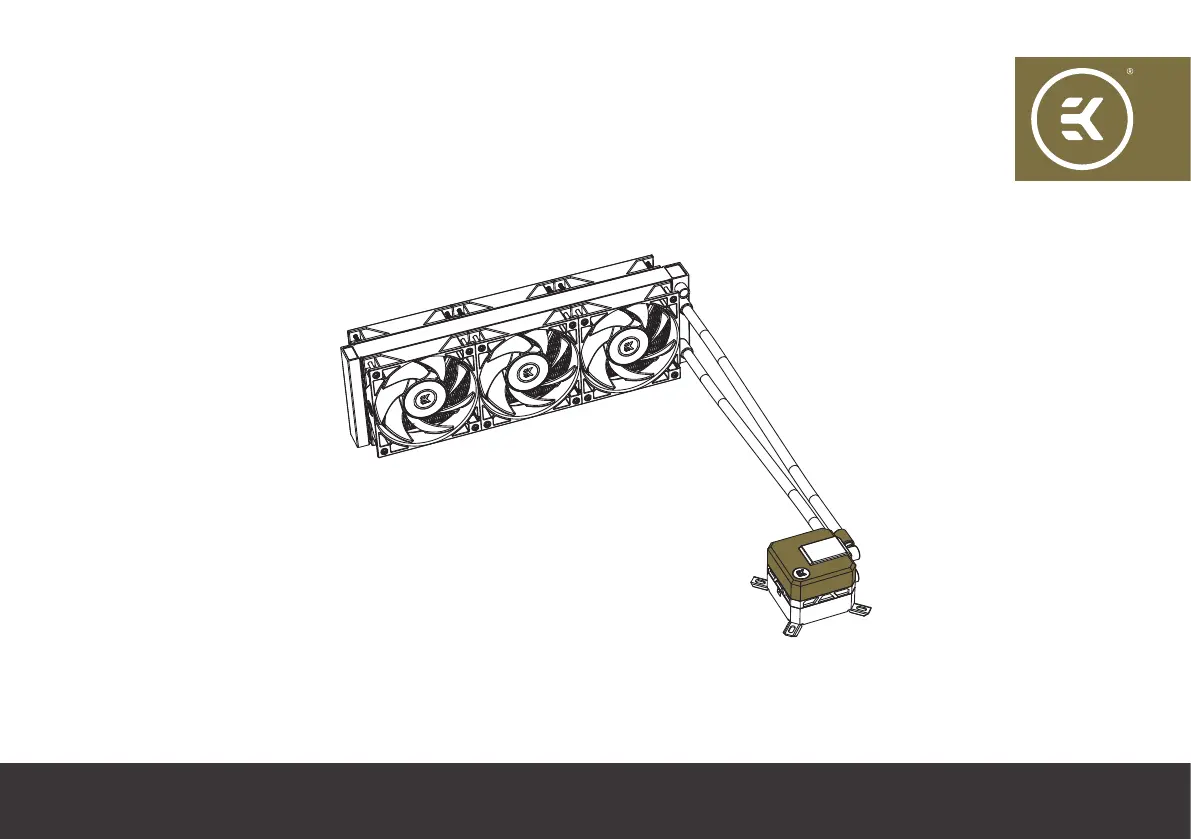

INSTALLATION MANUAL
EK-AIO
Elite Aurum 360 D-RGB
Compatible with:
Intel Socket 115X / 1200 / 20XX CPUs
AMD Socket AM4 CPU
To ensure safe and easy installation, please carefully read
this manual before starting with the installation process!
2nd Revision – March 17, 2021
INFORMATION TO THE USER
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that inter ference will not occur in a par ticular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The user is cautioned that changes and modifi cations made to the equipment without the approval
of manufacturer could void the user’s authority to operate this equipment.
1. SAFET Y PRECAUTIONS 4
2. SPECIFICATIONS 4
3. ENCLOSED IN THIS PACKAGE 5
MOUNTING KIT 5
4. INSTALL ATION – INTEL LGA-115X/1200 SOCKET 6
STEP 1: REMOVING THE MOTHERBOARD 6
STEP 2: ATTACHING THE BACKPL ATE TO THE MOTHERBOARD 6
STEP 3: ATTACHING MOUNTING SCREWS 6
STEP 4: INSTALLING THE FANS TO THE RADIATOR 6
STEP 5: REMOVING THE COLD-PLATE PROTECTIVE COVER 6
STEP 6: MOUNTING BRACKETS INSTALLATION 6
STEP 7: PUMP UNIT INSTALLATION 6
STEP 8: INSTALLING THE ASSEMBLY OF FANS AND THE RADIATOR INTO A PC CASE 7
STEP 9: PUMP – CONNECTING CABLES 7
STEP 10: FANS – CONNECTING CABLES 8
OPTIONAL STEP! APPLYING THE THERMAL COMPOUND 9
5. INSTALLATION – INTEL LGA-20XX SOCKET 9
STEP 1: ATTACHING MOUNTING SCRE WS (LGA-20XX) 9
6. INSTALLATION – AMD AM4 SOCKET 9
STEP 1: REMOVING THE ORIGINAL PLASTIC HOLD-DOWN CLAMPS (AMD) 9
STEP 2: ATTACHING MOUNTING SCRE WS (AMD) 9
STEP 3: INSTALLING THE FANS TO THE RADIATOR (AMD) 9
STEP 4: REMOVING THE COLD-PLATE PROTECTIVE COVER (AMD) 9
STEP 5: MOUNTING BRACKETS INSTALLATION (AMD) 10
STEP 6: PUMP UNIT INSTALLATION (AMD) 10
STEP 7: INSTALLING THE ASSEMBLY OF FANS AND THE R ADIATOR INTO A PC CASE (AMD) 10
STEP 8: PUMP – CONNECTING CABLES (AMD) 11
STEP 9: FANS – CONNECTING CABLES (AMD) 11
OPTIONAL STEP! APPLYING THE THERMAL COMPOUND 12
7. SUPPORT AND SERVICE 12
8. SOCIAL MEDIA 12
TABLE OF CONTENTS
