Page 1/2

Abbildungen können nicht im Serien-Lieferumfang enthaltenes Zubehör darstellen / Illustrations can contain accessories, which are not included in standard extent of delivery.

Abbildungen ähnlich, produktionsbedingte Abweichung vorbehalten / Illustration similar (in design), production-wise modications reserved.

File:

S:\shared-pool\Product-Documentation\T-Produktbeschreibung\30_n0t\Originale_Englisch_PA04\4253002_01017.doc

Erstelldatum/create date: 04.02.2008 09:37:00Aktualisiert/up dated: 08.02.2008

Technical Data

Voltage: 230 V ~ 50 Hz

Spindle rotary speed: L (50-1,100 min

-1

)

H (120-2,500 min

-1

)

Max. Output power: 550 W (S3 50%)

Table size: 410 x 112 mm

Max. table adjustment in y: 100 mm

Max. table adjustment in x: 250 mm

Max. spindle stroke: 220 mm

Angle adjustment l/r: -45° - +45°

Max. drilling diameter: 16 mm

End milling diameter: 13 mm

Face milling diameter: 30 mm

Morse conus inside spindle: MK 3

Weight: approx. 75.5 kg

Packing dimension: 570 x 510 x 740 mm

Bar code: 4006825 541540

Sales unit: 1 pc

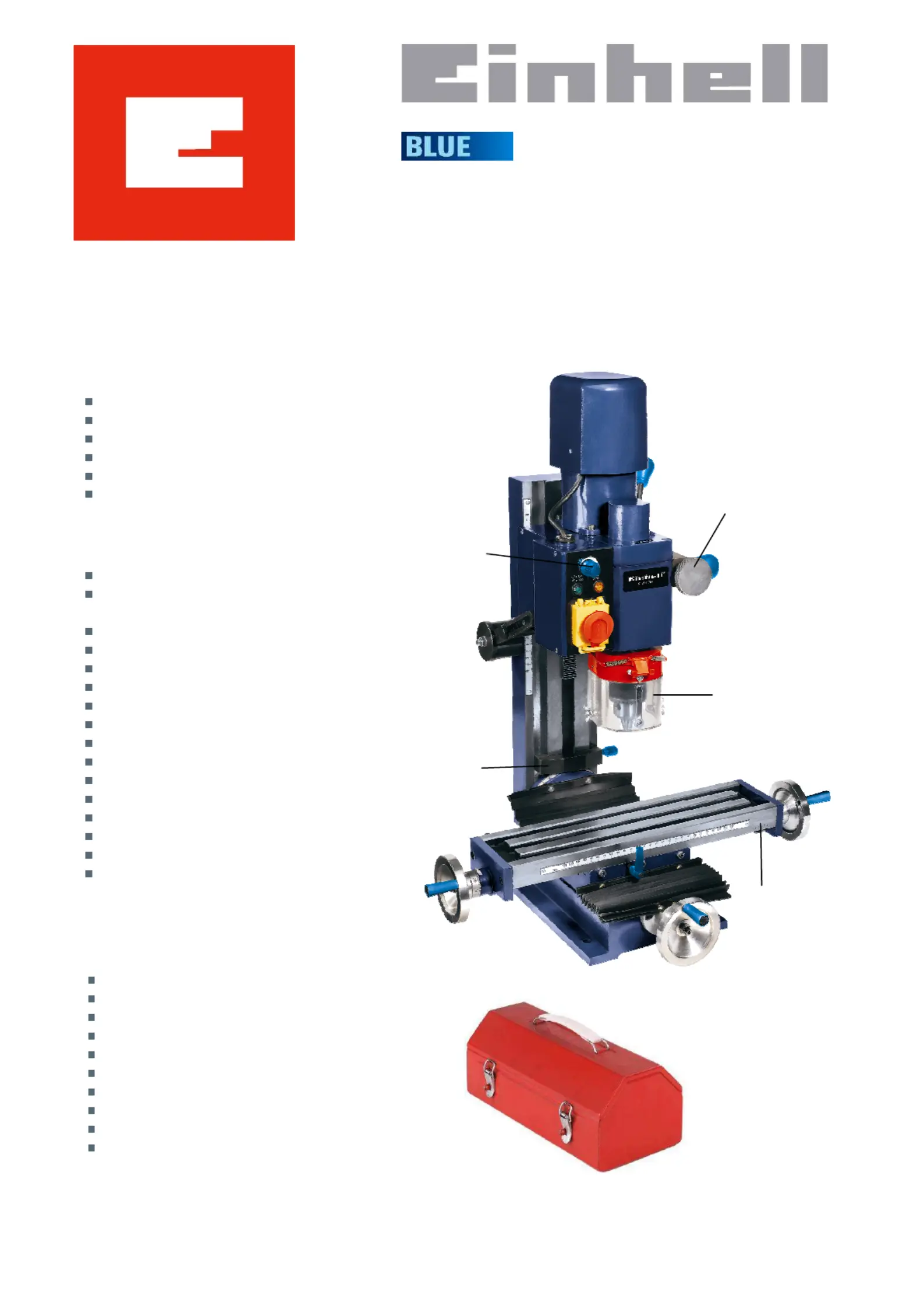

BT-MR 550

Metal Milling Machine

Art.-No. 42.530.02

Features

Wheel selector for ne feed (1)

Hinged chip guard (2)

Compound table with diagonal and length slide (3)

Depth gauge (4)

Electronic speed control (5)

2 speed areas (L/H)

The precise milling machine is excellent qualied for handling with several materials like plastic and metal. The tools can

be changed fast and easily, thus you can work exact and more ecient with the BT-MR 550. The spindle speed can be

continuously regulated and enables an accurate adjustment to the working material. Due to the compact construction

and the easy handling the BT-MR 550 is for all DIY excellent qualied.

Standard accessor

ies in the case

(w/o picture)

Ring gear drill chuck 3-16 mm with drill chuck key

3 x open-ended spanner 36 mm; 16/13 mm; 10/8 mm

Hook spanner

Plastic oil tank

Tie rod

Locating pin for spindle locking

4 groove stones M8

4 threaded bolt 45 mm ; M8

4 screw nuts M8

7 allen keys 2/2.5/3/4/5/6/8 mm

Abbildungen können nicht im Serien-Lieferumfang enthaltenes Zubehör darstellen / Illustrations can contain accessories, which are not included in standard extent of delivery.

Abbildungen ähnlich, produktionsbedingte Abweichung vorbehalten / Illustration similar (in design), production-wise modications reserved.

File:

S:\shared-pool\Product-Documentation\T-Produktbeschreibung\30_n0t\Originale_Englisch_PA04\4253002_01017.doc

Erstelldatum/create date: 04.02.2008 09:37:00Aktualisiert/up dated: 08.02.2008

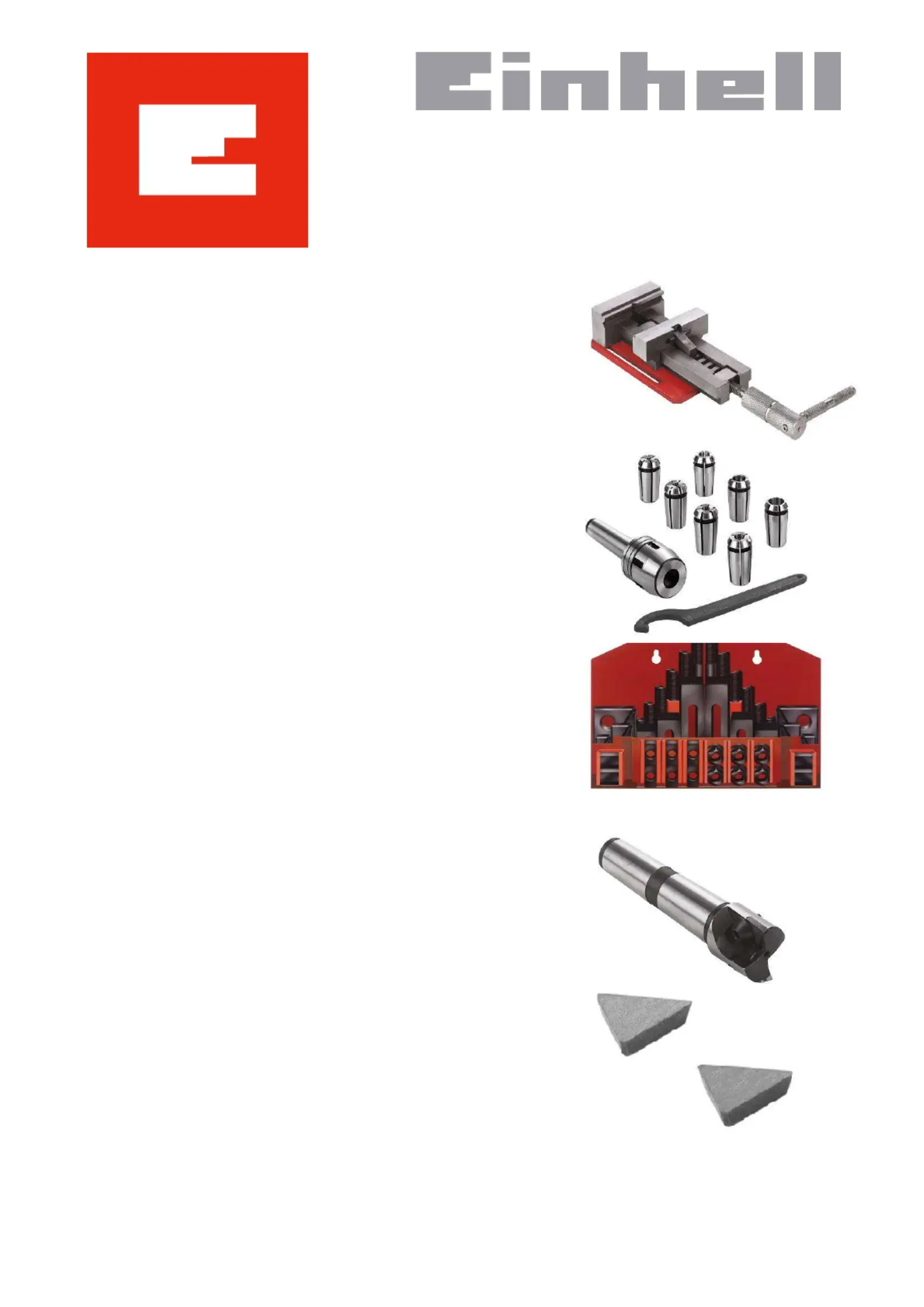

As special accessories available:
