USER MANUAL
eARC HDMI2.0b Extender
DL-AVX2100-H2
V1.0.0
USER MANUAL / DL-AVX2100-H2
2
This AVX HDMI2.0 eARC extender kit supports HDR format Dolby Vision up to 4K@60 and full eARC
capabilities up to Dolby Atmos. It supports both static and dynamic HDR formats up to 4K@60Hz,
including Dolby Vision. It also supports full eARC function and is backward compatible with 5.1CH ARC.
On the control end, it features bi-directional IR, RS232, 1GbE ethernet extensions, and S/PDIF pass-
through between the eARC transmitter and receiver. With 1-way PoE built-in from the eARC transmitter
to receiver, only one power adapter is needed to power up the extender kit.
PRODUCT OVERVIEW
PACKAGE CONTENTS
(x1) Transmitter
(x1) AC Power
Cord with US Pins
(x1) IR Emitter
(x1) Receiver
(x1) AC Power
Cord with UK Pins
(x1) Broadband IR
Receiver (30-50 KHz)
(x1) DC 12V
Power Adapter
(x1) AC Power
Cord with EU Pins
(x2) 3.5mm 3-Pin
Phoenix Connector
(x1) AC Power
Cord with AU Pins
(x4) Mounting
Brackets (with Screws)
USER MANUAL / DL-AVX2100-H2 3
1. Power LED
2. Link LED
3. Video LED
4. eARC/ARC LED
5. SET
1. DC 12V
2. IR IN
3. IR OUT
4. HDMI IN
5. RS232
6. AVX OUT
7. TOSLINK OUT
8. LAN
9. RESET

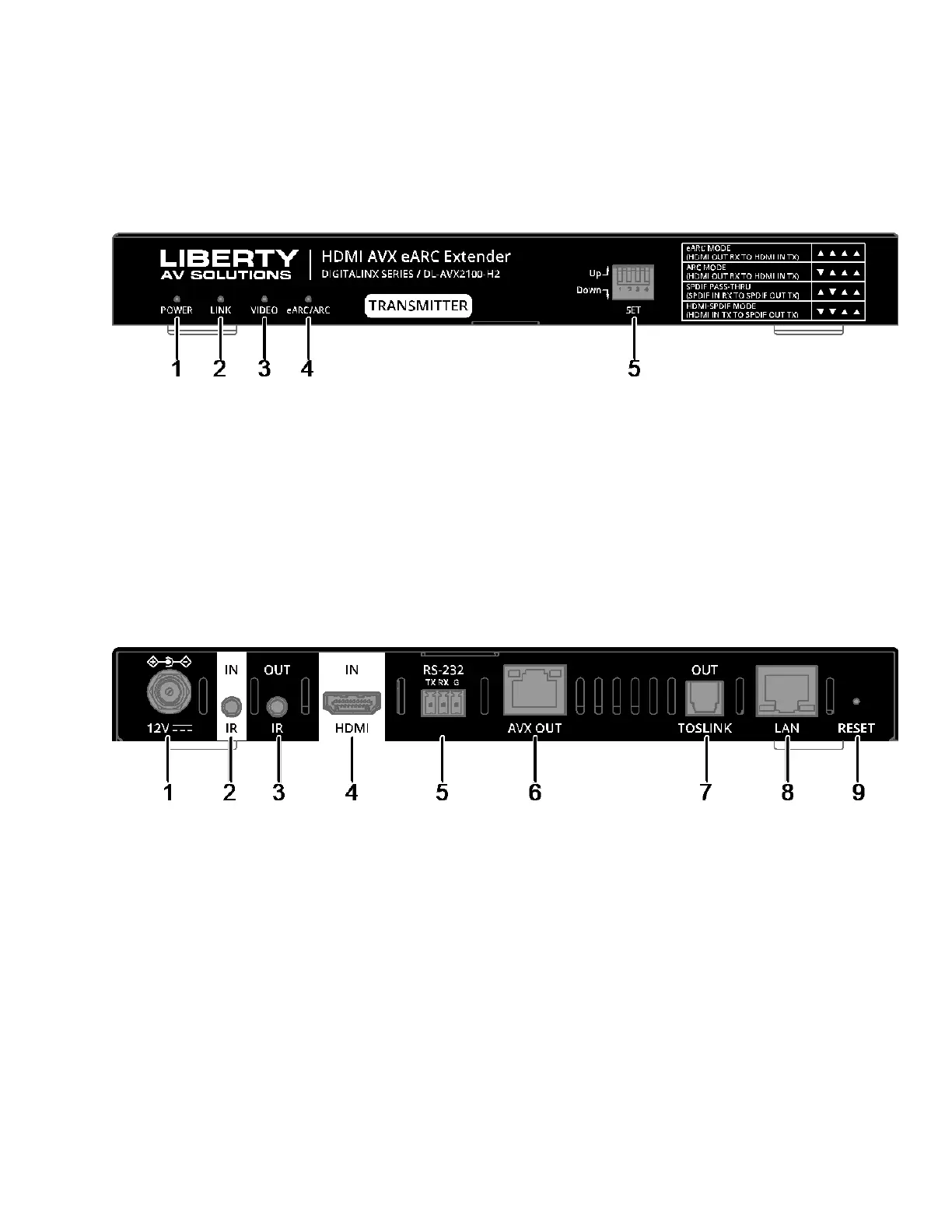

Transmitter
Front Panel
Rear Panel
PRODUCT BREAKDOWN
Product Specifications
| Brand: | Digitalinx |
| Category: | Audio/video-converter |
| Model: | DL-AVX2100-H2 |
