DELONGHI MARCO
ELECTRIC RADIATOR SYSTEM
10
YEAR
WARRANTY
Marco is an aluminium electric radiator with steatite heating elements for
use in electric heating systems or to heat a room independently from the
central hot water heating system. The heart of Marco consists of the steatite
heating element, a type of stone known for its thermal properties. Thanks
to its high degree of inertia, steatite gives heat constantly and gradually,
continuing even after the radiator has been turned off , thus saving energy.
The electronic thermostat (supplied with remote control) enables
the room to be regulated to the required temperature.
MARCO ELECTRIC RADIATOR SYSTEM

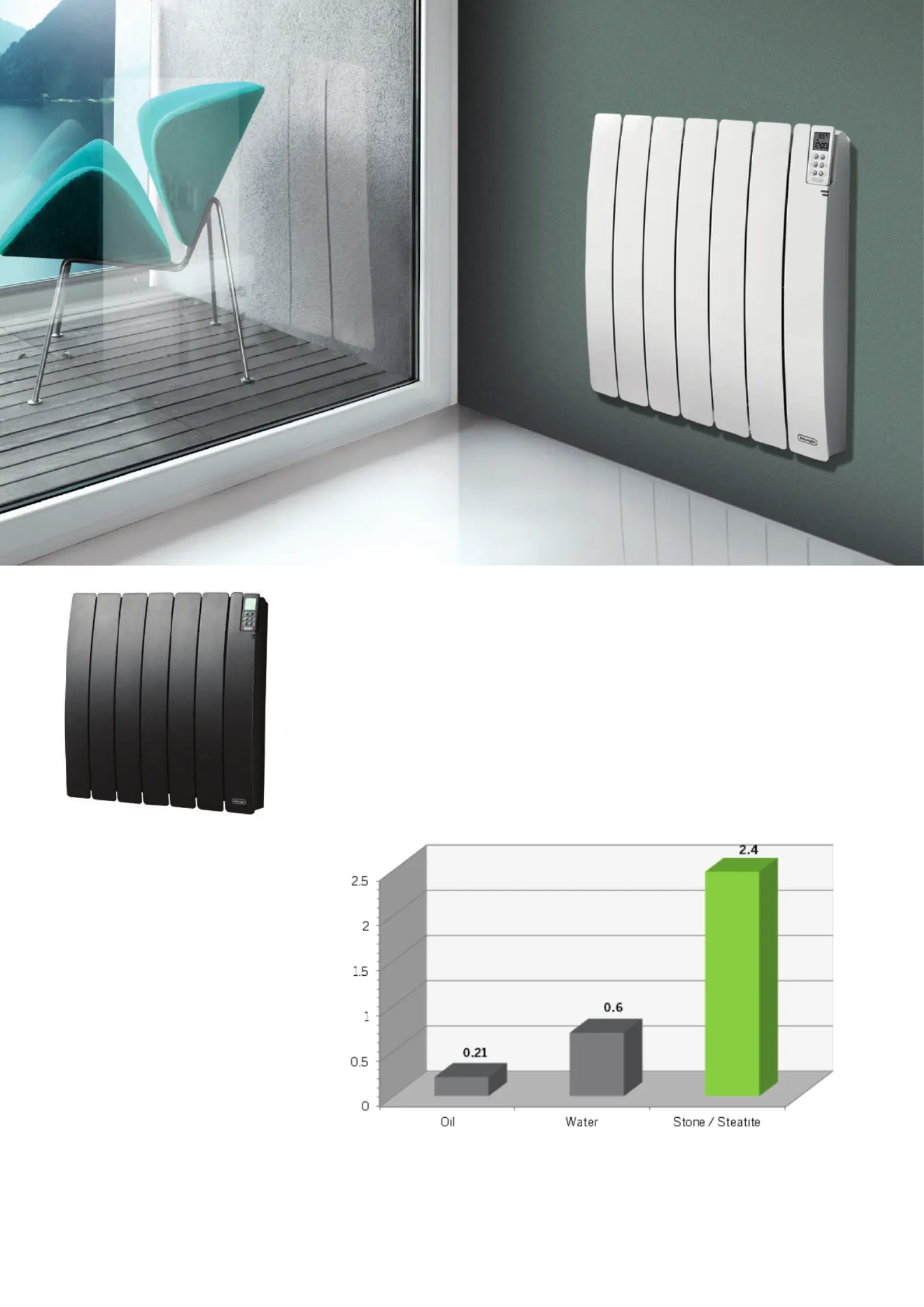

THERMAL CONDUCTIVITY: OIL, WATER & STONE
*The internationally recognised system of units
W/(moK)
• Thermal conductivity is the property of a material to conduct heat.
In SI* units thermal conductivity is measured in watts per meter kelvin
W/(moK). See graph above.
In summary
• The DeLonghi Marco range with its steatite element conducts heat
signifi cantly better than oil or water-fi lled electric radiator panels and
requires less continual energy supplied to it to do so.
White RAL 9016
Code Description Colour Net weight (kg)Power (w) Heated Area m
2List Price inc. GST
MARCO 1000 WH 580mm x 570mm x 100mm 1000 white 10 - 1413.8 $749.00
MARCO 1500 WH 580mm x 810mm x 100mm 1500 white 18.1 15 - 21 $799.00
MARCO 2000 WH 580mm x 1050mm x 100mm 2000 white 20 - 2826.8 $849.00
Anthracite RAL 7016
Code Description Colour Net weight (kg)Power (w) Heated Area m
2List Price inc. GST
MARCO 1000 AN 580mm x 570mm x 100mm 1000 anthracite 10 - 1413.8 $799.00
MARCO 1500 AN 580mm x 810mm x 100mm 1500 anthracite 18.1 15 - 21 $849.00
MARCO 2000 AN 580mm x 1050mm x 100mm 2000 anthracite 20 - 2826.8 $899.00
OPERATING CHARACTERISTICS
• Remote control: included
• Programming: yes; daily, weekly, time and temperature
• ON/OFF switch: absent (the radiator is turned on or
placed in stand-by directly from the electronic control
panel or, where present, using the remote control)
• Pilot wire: yes (for central regulation of a system
of electric radiators)
• Instructions included
• The ECO setting allows you to reduce the set point
and provides a saving of 6%-7% kWh/year.
THE RADIATOR HAS FIVE OPERATING MODES:
Comfort mode:
The chosen temperature is regulated by the remote control and
determined by the end user
Night mode:
The electric radiator is regulated at 2 °C below comfort temperature
Timer mode:
Using the remote control, the on and off times of the radiator can be
programmed hour by hour for the seven days of the week
Two hour override function:
when this function is activated, the radiator operates at maximum
power for two hours to heat the room rapidly.
Frost protection function:
when the dial is on minimum, the radiator comes on automatically
when room temperature drops below 7 °C.
Code Number of feet White inc. GST Anthracite inc. GST
60721544 2 $106.00 $108.00
PRODUCT INFORMATION
FEET
Cert No. NSW26443
Product Specifications
| Brand: | Delonghi |
| Category: | Heater |
| Model: | MARCO2000AN |
