Delonghi HCS2552FTS Manual
Read below 📖 the manual in Italian for Delonghi HCS2552FTS (4 pages) in the Heater category. This guide has been helpful for 5 people and has been rated 4.5 stars on average by 2 users
Page 1/4

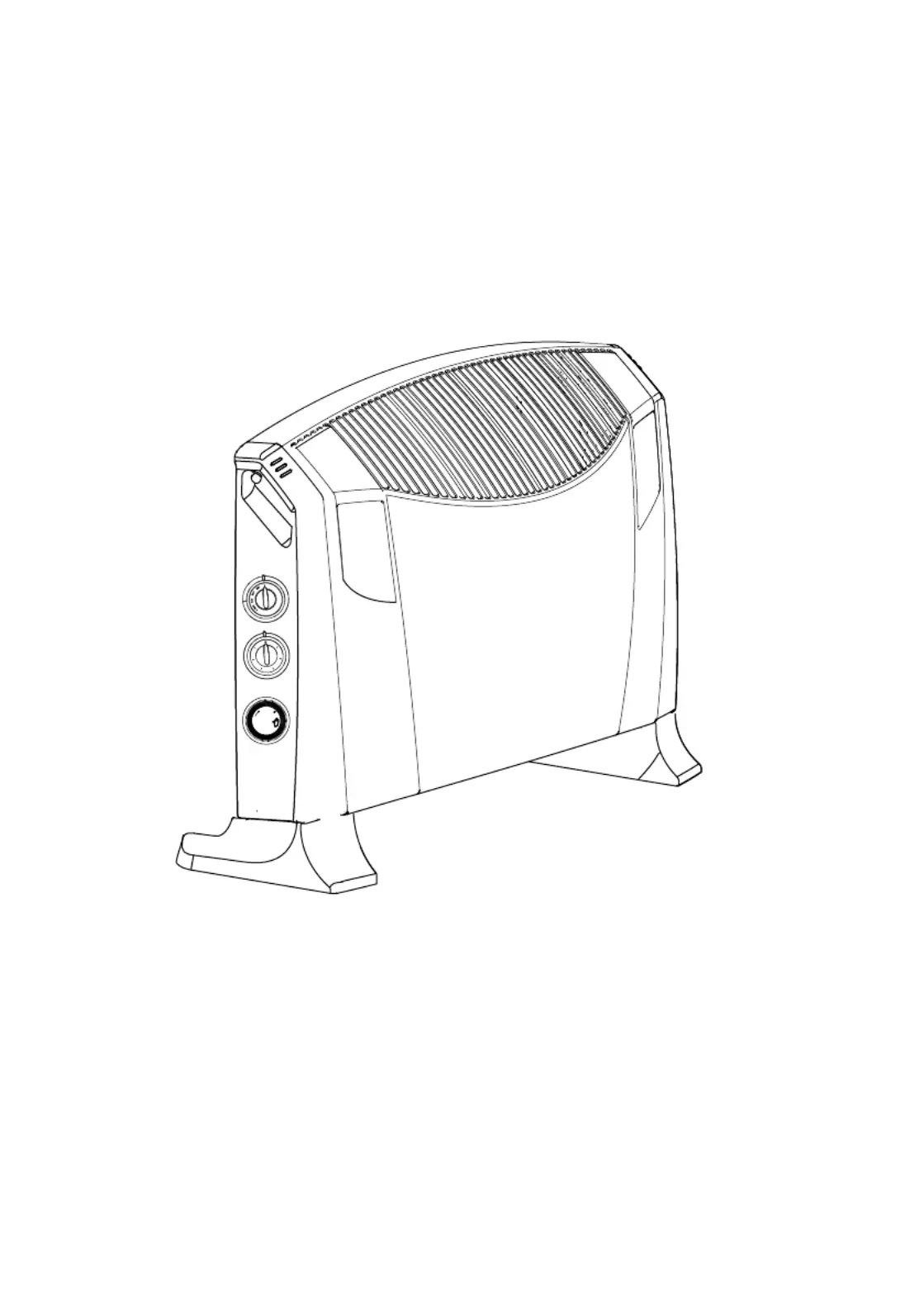

ELECTRIC CONVECTOR HEATER
Instructions for use
De’Longhi Australia Pty Ltd
Po Box 4156
MILPERRA BC NSW 1891
Australia
Customer Service Ph: 1800 126659
Fax: 1800 706932
e-mail: delonghi@delonghi.com.au
Proudly distributed by
De’Longhi New Zealand Limited
25 Carbine Road
Mt Wellington
Auckland, New Zealand
PO Box 58-056
Greenmount
Manukau 2141
Auckland, New Zealand
Customer Service Ph: 0508 200 300
Fax: 0508 200 301
e-mail:delonghi@delonghi.co.nz
I
0
1
2
3
4
5
6
7
8
9
10
11
1
2
13
1
4
15
16
17
18
19
20
21
22
23
24
1
2
I
0
1
2
3
4
5
6
7
8
9
1
0
11
12
13
14
1
5
16
17
18
19
20
21
22
23
24
1
I
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
300mm
(min.)
408.5 mm
460 mm (min.)
E
E
Fig.1
Fig.2
APower Selector
Fans (on certain
models only)
Hot air outlet grille
Thermostat
Timer
Foot x 2
Brackets
minimum
distance
from wall
minimum distance
from floor
B
C
1. ELECTRICAL CONNECTIONS
- Before plugging into the mains, make sure the voltage of your mains supply corresponds to the
V value indicated on the appliance and that the socket and power line are appropriate for the
load required.
- THIS APPLIANCE COMPLIES WITH DIRECTIVE 2004/108/EEC ON RADIO INTERFERENCE
SUPPRESSION.
2. Attaching the feet
To fit the feet, proceed as follows: Insert the foot into the guide on the side and push as far as it will
go until the two teeth hook in place (fig. 1).
3. Wall mounting
IMPORTANT: before drilling the wall, make sure the area is free of electrical
wires or pipes. To fix your convector heater to the wall, use the brackets “E”
and “ ” provided and appropriate screws and anchors (provided).F
Proceed as follows:
• Fix the brackets “ ”, making sure the distances are as shown in fig. 2.E
• Hang the heater on the two brackets fixed to the wall. Insert the two brac-
kets “ ” in the back of the convector base as shown in fig.3-4.F
Mark the bracket fixing points on the wall. (When mounted, block the base
of the heater in a fixed position to prevent it being removed).
• Remove the heater, drill the wall and insert the anchors.
• Fix the heater again, inserting the brackets “ ” into the base of the heaterF
and fixing them to the holes in the wall using the screws.
Now your heater is mounted on the wall.
The appliance must not be positioned directly underneath a fixed power
point.
Position the appliance in such a way that the plug is easily accessible even
after installation.
4. Operation and use
Turning on
Plug into the mains, turn the thermostat dial ( ) to maximum and turn the appliance on by means ofB
the power selector (A) (fig.1) as described below:
• Turn the power selector knob (A) to the Min position to select minimum power (the Min power light comes
on).
• Turn the power selector knob (A) to the Med position to select medium power (the Med power light comes
on).
• Turn the power selector knob ( ) to the position to select maximum power (the Max powerA Max
light comes on). In the fan version, both Min and Med lights come on.
5. Adjusting the thermostat
When the room has reached the required temperature, turn the thermostat dial ( ) slowly anticlock-B
wise until the lights go out and no further. The thermostat will automatically regulate the temperatu-
re set and keep it constant.
In spring or autumn or on mild days, you can save energy by using minimum power.
6. Frost prevention mode
With the thermostat dial in the position and one of the power levels selected, the appliance main-
tains room temperature at about 5°C, preventing freezing with minimal energy consumption.
7. Models with fan
A number of models have two fans for faster more even heating. To use this function, turn the power
selector (A) to the Max position (the corresponding light comes on).
3
1
F
2
Fig. 3
3
Fig. 4
