Deaf Bonce series

AP-P128NEO

MID-BASS SPEAKER

http://deafbonce.com

1. Introduction.

2. Safety instructions.

3. Wiring diagrams.

4. Filtering, recommended ampliﬁer settings.

5. Speciﬁcations.

6. Dimensions.

7. Box contents.

8. Warranty and maintenance info.

9. Information on disposal of the electrical and electronic equipment (for the European

countries with separate waste collection).

C O N T E N T S EN

1 . I N T R O D U C T I O N

1. Fasten the audio system properly when installing it in the vehicle. If the component is disconnected during driving, it may cause serious damage to the

passengers of the car or another vehicle.

2. Before installing the components, if possible store the product in the package passengers of the car to avoid accidental damage.

3. Be careful when installing and dismantling the acoustic systems! Do not let the speaker drop to avoid damage of its moving parts.

4. When working with tools follow safety rules.

5. Before the installation switch off the head unit and all other audio devices to avoid their damage.

6. Make sure that the location of the audio system does not hinder the proper operation of mechanical and electrical devices of the vehicle.

7. Do not install components in places exposed to water, excessive humidity, high or low temperature, dust or dirt. ATTENTION!!! The product may be

operated at +5 to +40 °C. In case of moisture condensation, allow the product to dry.

8. When drilling or cutting out holes in the body of the car, make sure that there are no cables or any other important construction elements under a

selected area or inside it.

9. When stretching the speaker cables make sure that they are not in contact with sharp edges or moving mechanical devices. Make sure that they are

firmly fixed and protected over the entire length.

10. The diameter of the speaker cables must be selected in accordance with the length and applied power.

11. Never stretch the cables outside the car and near the moving parts of the car. This can lead to destruction of the insulating layer, short circuit and fire.

12. To protect the cables use rubber gaskets if the wire passes through a hole in the plate, or other similar materials if it lies close to the parts exposed to

heat.

13. Possible commutation versions are presented on the following pages. Using the data from the table below, check the minimum resistance of your

amplifier specified by the manufacturer.

2 . S A F E T Y I N S T R U C T I O N S

Possible commutation versions are presented on the following pages. Using the data from the diagram below, check the minimum

resistance and the connection specified by the manufacturer. Do not expose the amplifier to loads below the predetermined value.

Use these formulas to calculate the resistance of diﬀerent connection types.

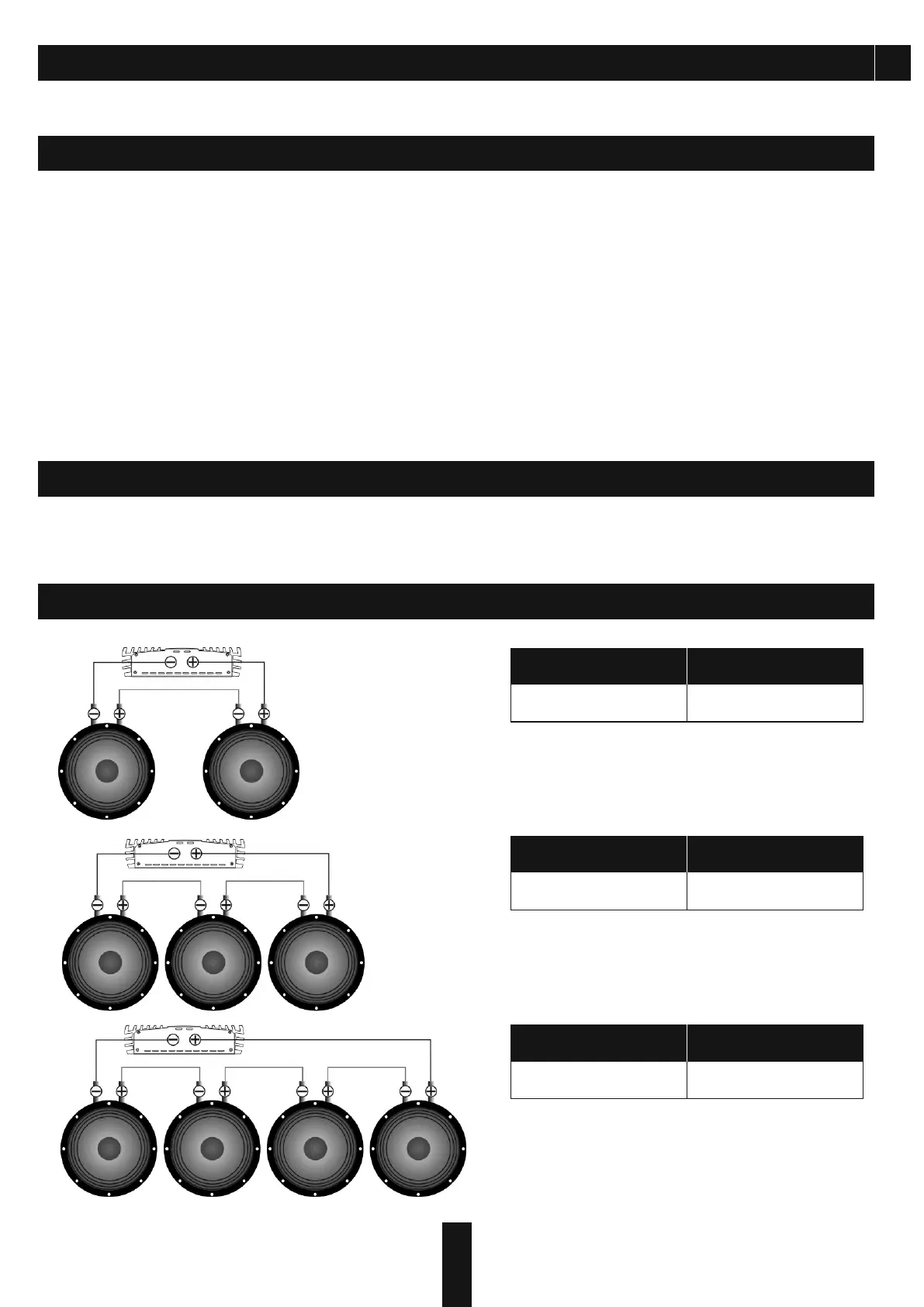

3 . W I R I N G D I A G R A M S

Voice coil Total impedance

S E R I A L C O N N E C T I O N O F T H E S P E A K E R S

8 Ohm 16 Ohm

Voice coil Total impedance

8 Ohm 24 Ohm

8 Ohm 32 Ohm

Thank you for purchasing this Deaf Bonce product! Deaf Bonce is committed to the creation of extremely high-proﬁle systems with no loss of quality.

To ensure proper use, please carefully read through this manual before using this product. It is especially important that you read and observe caution’s in this manual. Please

keep the manual in a safe and accessible place for future reference.
