INSTALLATION
MANUAL
R410A SPLIT SERIES
IM-5WMYJ-1113(0)-DAIKIN
Part Number.: R08019039398
Installation Manual
R410A Split Series
Manuel d’installation
Série split R410A
Installationsanleitung
Split-Baureihe R410A
Manuale d’installazione
Serie Multiambienti R410A
Manual de instalación
Serie Split R410A
Руководство по монтажу
Серия R410A с раздельной установкой
Montaj kılavuzu
R410A Split serisi
English
Français
Deutsch
Italiano
Español
Русский
Türkçe
MODELS
FTXB50BV1B RXB50BV1B
FTXB60BV1B RXB60BV1B
INVERTER
English
1-1
Indoor Unit
Through the wall
hole Ø 65mm
Drain hose position

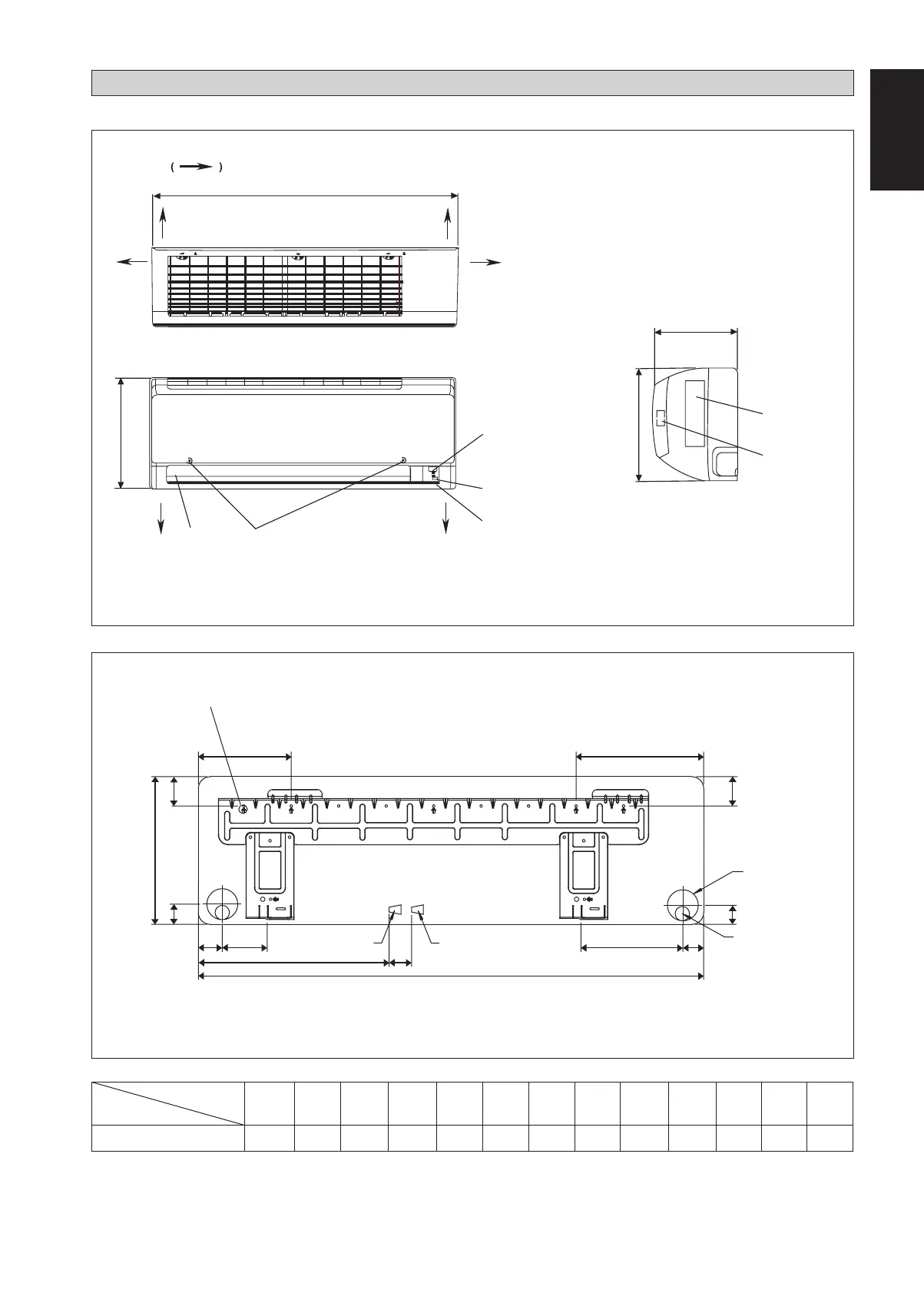

OUTLINE AND DIMENSIONS
Recommended mounting plate retention spots
(7 spots in all)
Original Instruction
All dimensions are in mm
Gas pipe end
INSTALLATION PLATE FTXB50/60BV1B
Dimension
Model A B C D E F G H I J K L M
FTXB50/60BV1B 1065 310 228 190 173 61 40 45 48 91 219 580 45
All dimensions are in mm
Liquid pipe end
D E
B
F
G
K I
ML
H I
FG
A
B
FRONT VIEW
TOP VIEW
C
SIDE VIEW
B
REAR REAR
RIGHTLEFT
BOTTOM BOTTOM
FRONT GRILLE FIXED SCREWS
(INSIDE)
LOUVER
SIGNAL RECEIVER
INDOOR UNIT
ON/OFF SWITCH
ROOM TEMPERATURE
THERMISTOR (INSIDE)
NAME PLATE
TERMINAL
BLOCK
WITH EARTH
TERMINAL
THE MARK
SHOWS PIPING DIRECTION
Product Specifications
| Brand: | Daikin |
| Category: | Air conditioning |
| Model: | FTXB25BV1 |
