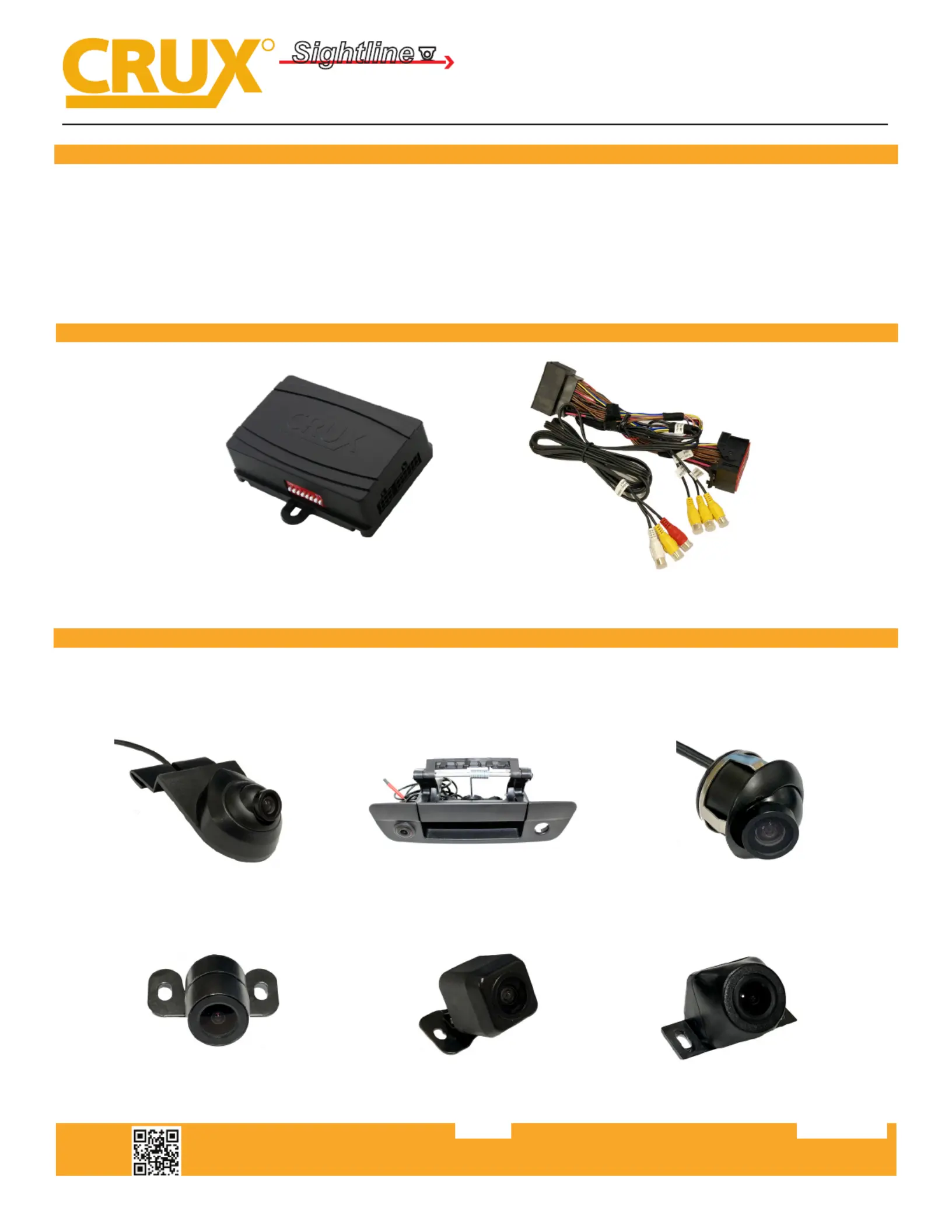

Page 1/4
CDR-31C Cargo Camera
for RAM Trucks
CDR-02 Tailgate Handle Camera CUB-15 Adjustable Angle Camera
VRFCH-75L
Front & Rear + 1 Video Camera Integration Interface with A/V Input for
DODGE, JEEP & RAM Vehicles with Uconnect 8.4” Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022120
1 of 4
- Adds a front, backup and cargo camera input.
- Adds an audio/video input.
- Uses a factory steering wheel control buîž©on to force view the video sources. (except OEM backup camera. See page 3)
- Retains factory backup camera if present.
- Plug and play installaîžźon.
PRODUCT FEATURES:
PARTS INCLUDED:
VRFCH-75L Module VRFCH-75L Harness
OPTIONAL ADD-ON CAMERAS:
Opîžźonal add on cameras are available to complete the mulîžź-view capability of the VRFCH-75L. Cameras available
and include:sold separately
CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022120
2 of 4
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Front Camera Input
Aftermarket Backup Camera Input
Cargo Camera Input
Audio/Video
Input
Front and Rear Camera Power Output 12V (purple/white)
Cargo Output 12V (orange/white)
Video AUX Power Output 12V (red/white)
To Vehicle Harness
To Radio
Connect this 6-pin plug if OEM
backup camera is being used
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3No Funcon – Leave OFF
4No Funcon – Leave OFF
5 Cargo Camera ON Cargo Camera OFF
6No Funcon – Leave OFF
7 AUX A/V ON AUX A/V OFF
8 Set to OFF
VRFCH-75L
Front & Rear + 1 Video Camera Integration Interface with A/V Input for
DODGE, JEEP & RAM Vehicles with Uconnect 8.4” Systems
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022120
3 of 4
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
OPERATION:
1. Whether an aermarket or OEM backup camera is used,
puîž«ng the gear in reverse will automaîžźcally show the
backup camera image on the screen.
2. Pung the gear to drive aer the reverse process
turns on the front camera for 7 seconds.
3. To force view the cameras installed, press and hold the
rear right side steering wheel control middle buîž©on to
toggle through the cameras. (Forced view of the backup
camera is only available if using an aermarket backup
camera.) While in reverse gear, press and hold the same
buîž©on to toggle between reverse camera and video input
(i.e cargo or trailer camera).
4. To use the AV input, press and hold the le rear side
steering wheel control middle buîž©on to toggle to AV
mode. Audio plugged in the AV RCAs will automaîžźcally
be heard through the OE audio system. No need to plug
to the AUX input of the vehicle.
VRFCH-75L
Front & Rear + 1 Video Camera Integration Interface with A/V Input for
DODGE, JEEP & RAM Vehicles with Uconnect 8.4” Systems
FORCED VIEW CAMERA SEQUENCE:
Using OEM backup Camera
FRONT VIDEO INPUT
Using Aermarket backup Camera
FRONT BACKUP VIDEO INPUT
