RVCHN-76C
Rear View Integration with Lip Mount Camera for
Select Honda Civic Vehicles without Navigation 2012-2013
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.102120
1 of 2
- Automacally switches to rear-view when vehicle is in reverse gear.
- Aermarket lip mount rear view camera included.
- Plug & Play Installaon.
PRODUCT FEATURES:

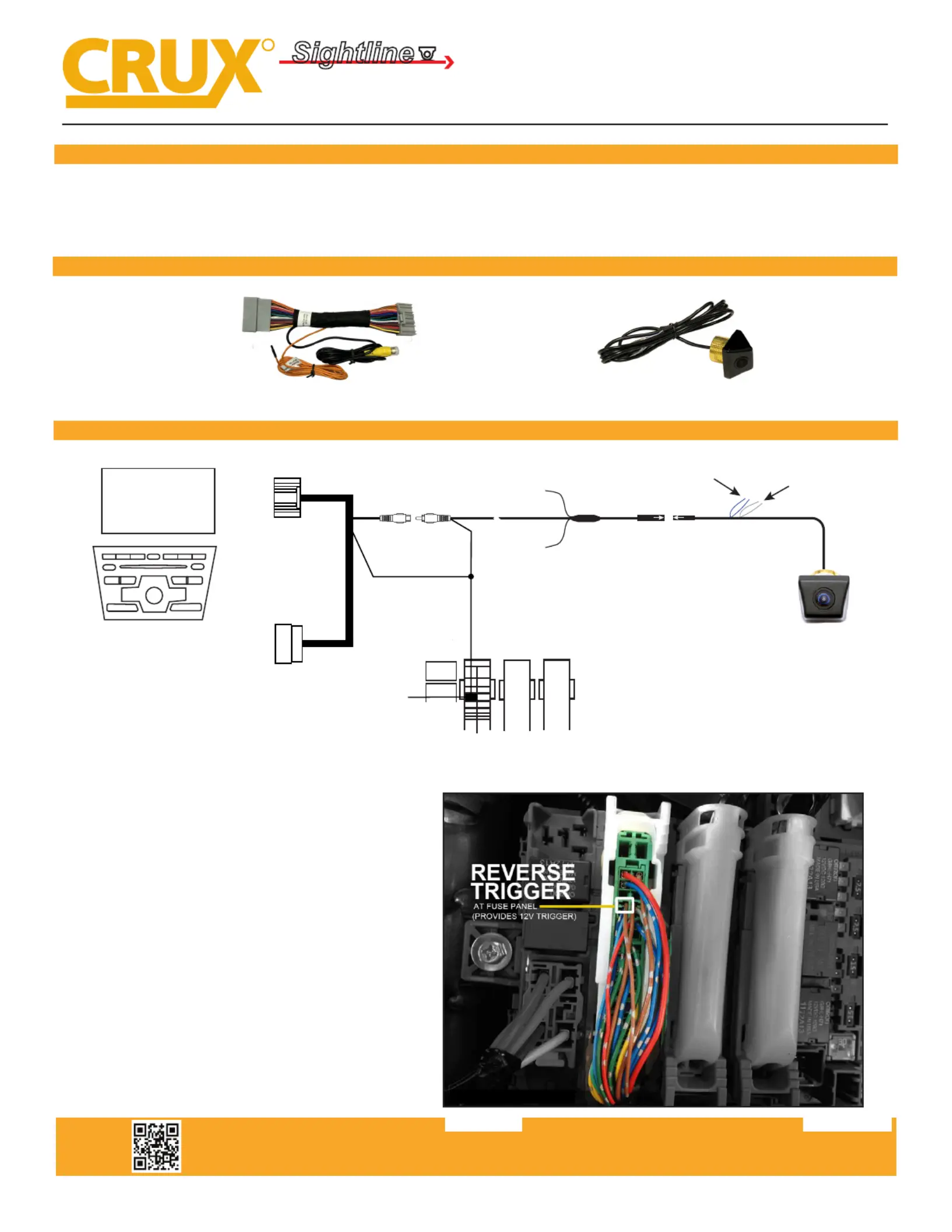

INSTALLATION DIAGRAM:
Video
Connection
WHITE**
Parking Line
Cut = OFF / Connect = ON
BLUE
(not used
keep connected)
**NOTE: Changes to the parking line option
will take eect after a power cycle.
Camera Power
Regulator
*Camera Ground
(to chassis)
Red wire
Not Used (Insulate)
Make sure the arrows
line up and push in
the connectors well.
Factory
Screen
Radio
To factory
screen
To factory
harness
Green Connector at fuse Panel
(Driver’s left kick panel)
Pin 4
Brown/Silver dots wire
(Reverse Camera Trigger)
Orange Wire
(reverse trigger)
Use a length of 18 gauge wire (not included)
and tap the RED camera power wire from the
Yellow RCA and ORANGE reverse trigger wire to
pin# 4 (BROWN/SILVER dots) wire on the Green
connector in the fuse panel. This is the factory
reverse trigger wire.
PARTS INCLUDED:
RVCHN-76C Harness CUL-03 Lip Mount Camera
RVCHN-76C
Rear View Integration with Lip Mount Camera for
Select Honda Civic Vehicles without Navigation 2012-2013
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.102120
2 of 2
VEHICLE APPLICATIONS:
HONDA
2012 - 2013 Civic
1. Remove the rear trunk panel cover.
2. Drill a 5/8” hole using the hole saw included on the lip under the Honda emblem. Drill the hole at the
as close as you can to the center of the vehicle.
3. Fish the camera cable through 5/8” hole. Do not secure the camera yet unl aer tesng the viewing
angle.
4. Plug the 4 pin barrel connector of the camera cable to the extension cable provided.
5. Route the cable towards the radio locaon.
6. Remove the radio to gain access to the factory screen.
7. Plug the Yellow male RCA of the extension cable to the Yellow female RCA of the RVCHN-76C harness.
8. Unplug the 32 pin connector from behind the screen and plug it to the RVCHN-76C t-harness. Plug the
other end of the t-harness to the screen.
9. Tap the red wire coming out of the Yellow RCA and the Orange reverse trigger wire from the
RVCHN-76C t-harness to the BROWN/SILVER dots reverse wire found at the fuse panel.
10. Test the camera for funconality before installing.
INSTALLING THE CAMERA:
NOTE:
Compable on vehicles WITHOUT Navigaon opon.
